Insignia NS-HT511 Home Theater System
www.insigniaproducts.com
Components
Features
• 90 Watts per Channel @ 8 ohms
• Rocketboost™ Expandable Wireless Audio
Technology: sends wireless audio for surround
sound, subwoofer, and left/right channels;
receives wireless audio from Rocketboost devices
(Requires Rocketboost Wireless Card, RF-RBCARD,
sold separately)
• HDMI (Audio Return Channel, 3D), Deep-Color,
x.v.Color*, Lip Sync, DTS-HD Master Audio,
DTS-HD High Resolution Audio, Dolby® TrueHD,
Dolby® Digital Plus, DSD and Multi-CH PCM
• 4 HDMI Inputs and 1 Output
• 3 Digital Inputs (2 Optical/1 Coaxial)
• Component Video Switching (2 Inputs/1 Output)
• 40 FM/AM Presets
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
•Direct Mode
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing
DSP
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (up to 400 ms)
•On-Screen Display via HDMI
* “x.v.Color” is a trademark of Sony Corporation.
Rocketboost Wireless Card Ready
Installing a Rocketboost
Wireless Card (sold separately)
enables this product to send
and receive wireless audio with
your other Rocketboost
products.
What is Rocketboost?
Rocketboost is expandable wireless digital audio.
• Products with Rocketboost™ technology let you
easily expand your listening experience
throughout your home.
• Rocketboost does not interfere with other
wireless products in your home.
• Rocketboost is uncompressed digital audio
compatible with all audio formats such as Dolby,
TrueHD, and DTS-HD Master Audio used with
Blu-ray.
When you see the Rocketboost logo on any
product, it has been designed to work with other
Rocketboost products, no matter who
manufactures them.
Package contents
• Receiver
•Front Speakers (2)
•Center Speaker
• Surround Speakers (2)
• Subwoofer
•Remote control
• AA batteries (2)
• FM antenna
• AM antenna
• Color labels for speaker cables
• Speaker cables:
•11 ft. (3)
•26 ft. (2)
•RCA cable 10 ft.
• Rubber spacers for speakers (30)
•Quick Setup Guide
•User Guide

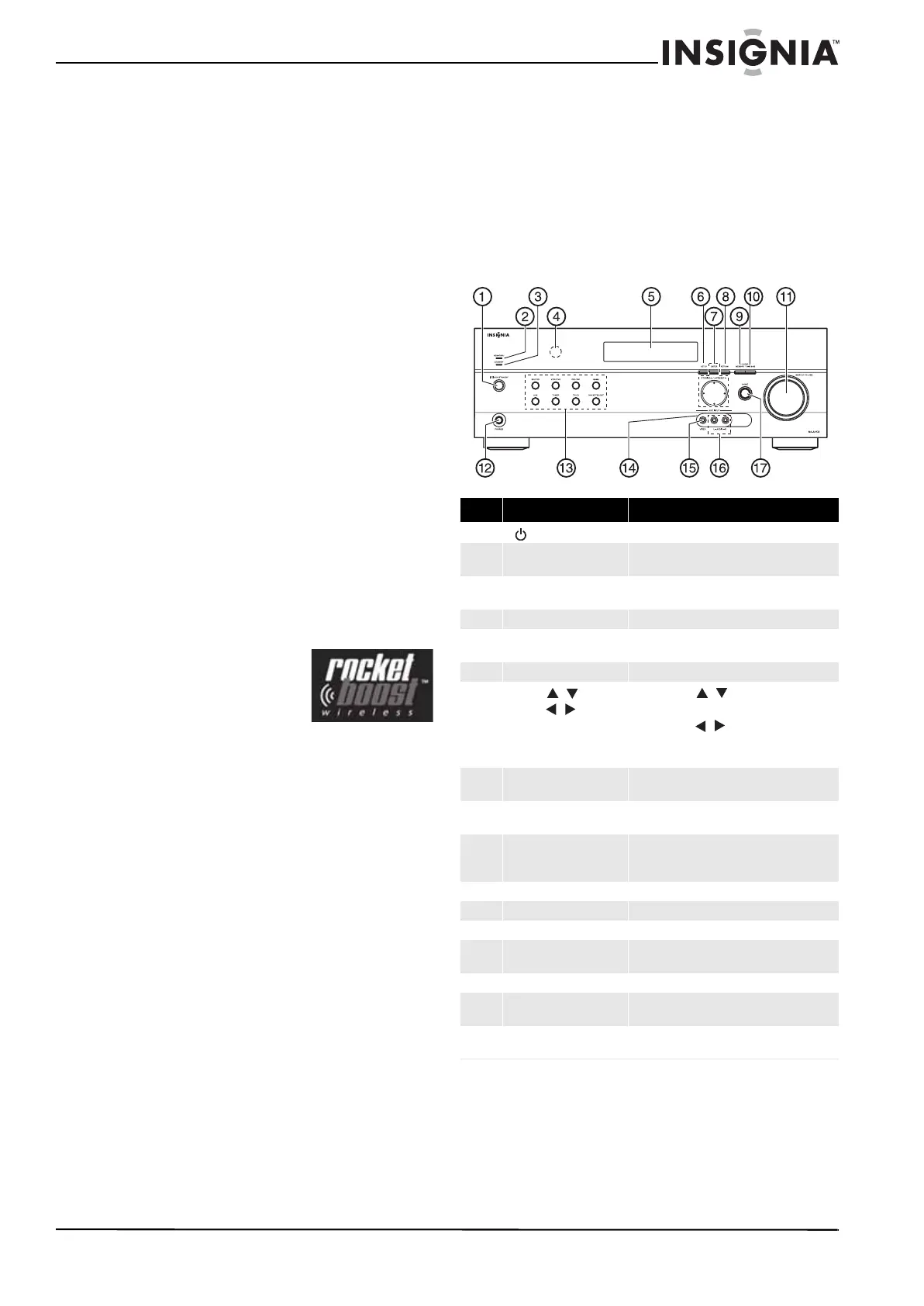

Front controls
Item Description Function
1
|/ ON/STANDBY button
Press to turn on your stereo receiver.
2 HDMI THRU indicator Lights when the HDMI pass-through function is
activated in standby mode.
3 STANDBY indicator Lights red when your stereo receiver is in
standby mode.
4 Remote control sensor Receives the signal from the remote control.
5 Display See “Display” on page 4 for additional
information.
6 SETUP button Press to open the on-screen menus.
7
TUNING /
PRESET /
ENTER
Press TUNING / to tune the radio to the
next or previous station.
Press PRESET / to tune the radio to the
next or previous station preset.
Press ENTER to confirm a selection.
8 RETURN button In menu mode, press to return to the main
menu.
9 MEMORY button Press to save a radio station preset. Press with
the TUNING MODE button to clear presets.
10 TUNING MODE button Press to turn on the receiver tuning mode and
listen to the radio. Press with the MEMORY
button to clear presets.
11 MASTER VOLUME knob Turn to increase or decrease the volume.
12 Headphone jack Plug your headphones into this jack.
13 Input selector buttons Press to select the input signal source you want.
14 Protective cap A rubber cap protecting the A/V jacks. Remove
the cap when using the jacks.
15 AUX INPUT VIDEO jack Plug an external video source into this jack.
16 AUX INPUT AUDIO L/R
jacks
Plug an external sound source into this jack.
17 HOME button Press to access audio settings. See “Changing
audio settings” on page 25.
NS-HT511_11-0310_MAN_.book Page 3 Wednesday, April 13, 2011 11:12 PM
