Universal Swivel TV Base
www.insigniaproducts.com
Assembly instructions
Step 1 – Determine whether your TV has a flat back or an irregular or
obstructed back
1 Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Temporarily lay the horizontal brackets (01) on the back of your TV.
3 Align the screw holes in the brackets with the mounting screw holes on your
TV.

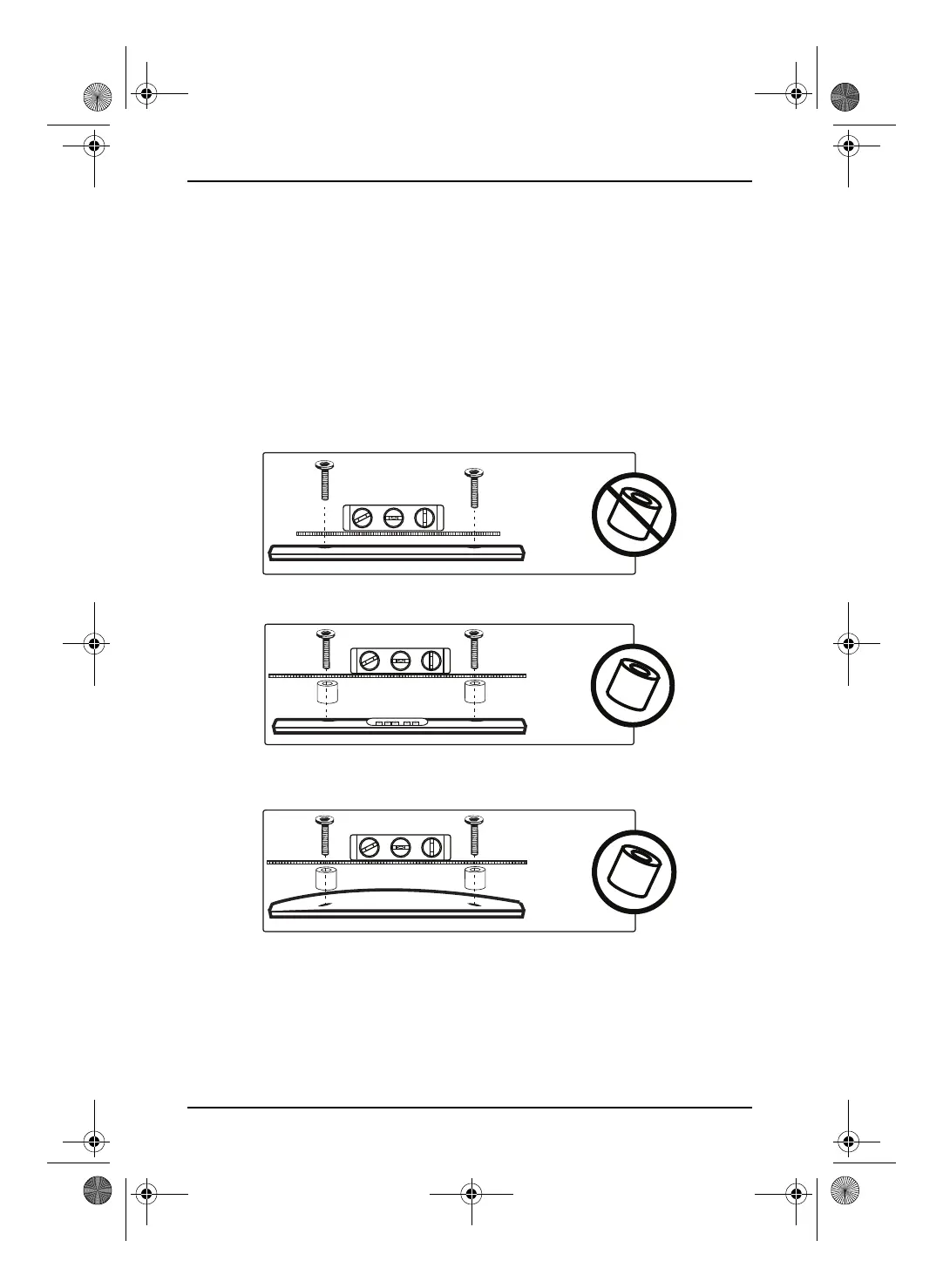

4 Identify which type of back your TV has:
• Flat back: The brackets lay flush against the back of your TV and do not
block any jacks. You do not need spacers when assembling your stand.
• Obstructed back: The brackets block any of the jacks on the back of your
TV. You need the spacers (02 or 03) when assembling your stand.
• Irregularly-shaped back: There is a gap between the brackets and some
part of the back of your TV. You need the spacers (02 or 03) when
assembling your stand.
5 Remove the brackets.
