Universal Swivel TV Base
www.insigniaproducts.com

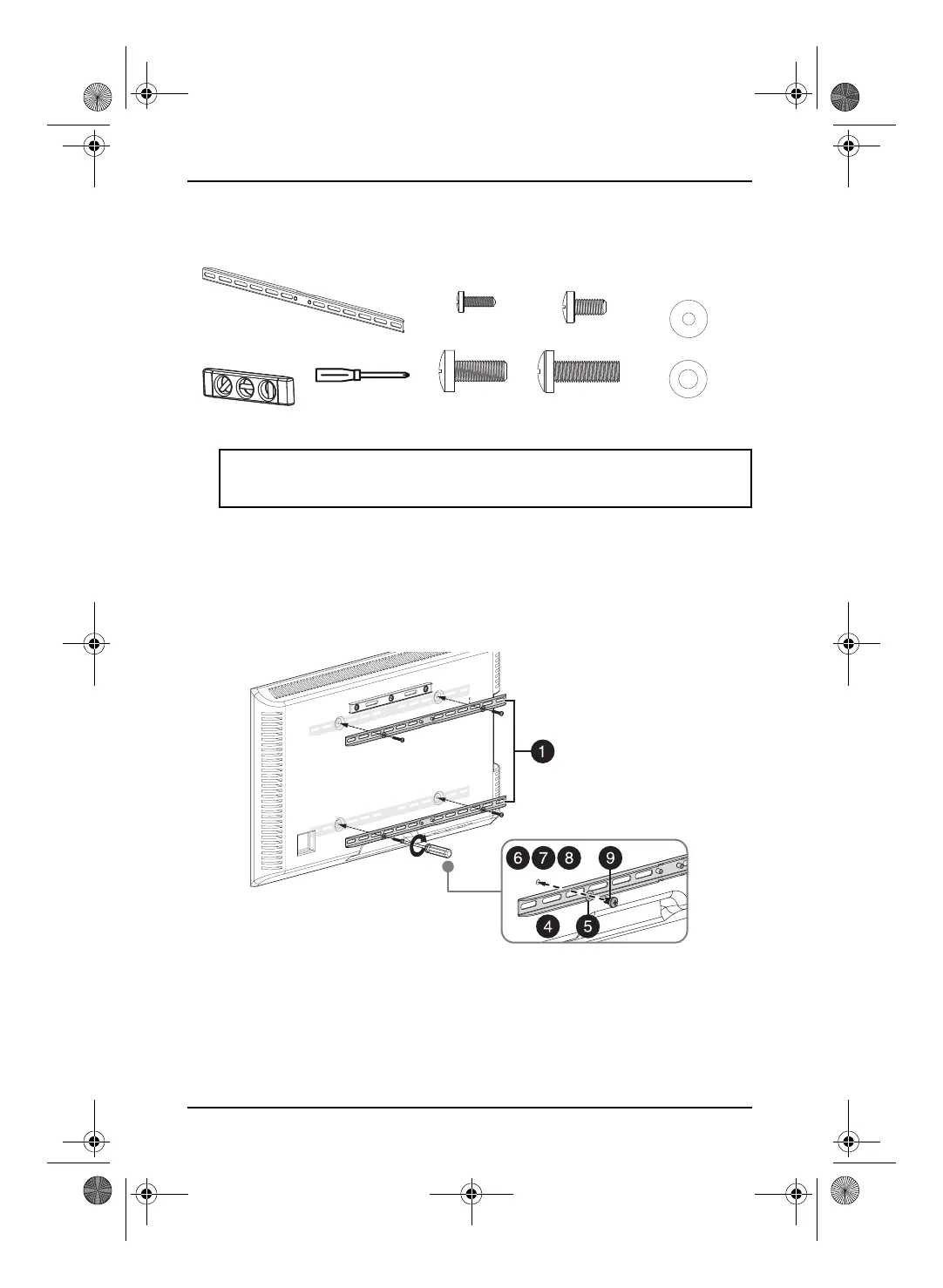

Step 3 – Option 1: Attach the horizontal brackets to a flat-back TV
You’ll need
1 Align the holes on the horizontal brackets (01) with the screw holes on the
back of your TV. Make sure that the brackets are centered horizontally.
2 Place the washers you selected in STEP 2 over the holes in the brackets that
align with the screw holes on the back of your TV, then insert the screws you
selected in STEP 2 through the washers. Make sure that the brackets are level.
3 Tighten the screws until they are snug against the brackets. Make sure that the
horizontal brackets are securely fastened before moving on to the next step.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use
power tools for this step. Tighten the screws only enough to secure the TV
bracket to your TV. DO NOT over tighten the screws.
01 Horizontal bracket (2)
Screws (select 1 set)
Washers
(select 1 set)
04 M4 (4)
05 M6/M8 (4)
Level
Phillips screwdriver
06 M4 × 12 mm (4)
07 M6 × 12 mm (4)
08 M8 × 16 mm (4)
09 M8 × 25 mm (4)
