Insignia NS-HZ313 User Manual

5 Turn on the connected devices and begin playback. If you are unable to
hear the audio from your speakers or headphones, check the connections
and settings to make sure that they are all correct.
6 Change the audio source device’s (e.g. TV, Blu-ray player, or media
streaming device) audio output to “PCM” format. Refer to the manual you
received with the audio source device for additional information.
Coaxial connection
1 Slide the input switch on the side of the converter to COAXIAL.
2 Connect a coaxial digital cable (not included) to the COAXIAL IN port on
the converter, then connect it to the Digital Out port on your audio
source device, such as your TV, Blu-ray player, or media streaming device.
3 Connect the included RCA stereo audio cable to the AUDIO OUT (R and L)
jacks on the converter, then connect it to the Audio In (R and L) jacks on
your stereo, soundbar, headphones or other audio playback device.
4 Connect the power cable to the DC jack on the converter, then plug the
power adapter into a wall outlet.
5 Turn on the connected devices and begin playback. If you are unable to
hear the audio from your speakers or headphones, check the connections
and settings to make sure that they are all correct.
6 Change the audio source device’s (e.g.
TV, Blu-ray player, or media streaming
device) audio output to “PCM” format.
Refer to the manual you received with
the audio source device for additional
information.
V2 ENGLISH 15-0661
SPECIFICATIONS
Dimensions (H×W×D): 2.7 × 2 × .9 in (6.9 × 5 × 2.3 cm)
Digital Audio Format Support: LPCM 44KHz, 48KHz, 96KHz
Power: 5 VDC, 600 mA
IMPORTANT SAFETY INFORMATION
• Indoor use only.
• There are no user serviceable parts. Do not open the housing.
• Do not use in a high humidity environment.
• Use the attached AC/DC adapter only.
TROUBLESHOOTING
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada) or
01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
©2015 Best Buy. All rights reserved.
Made in China

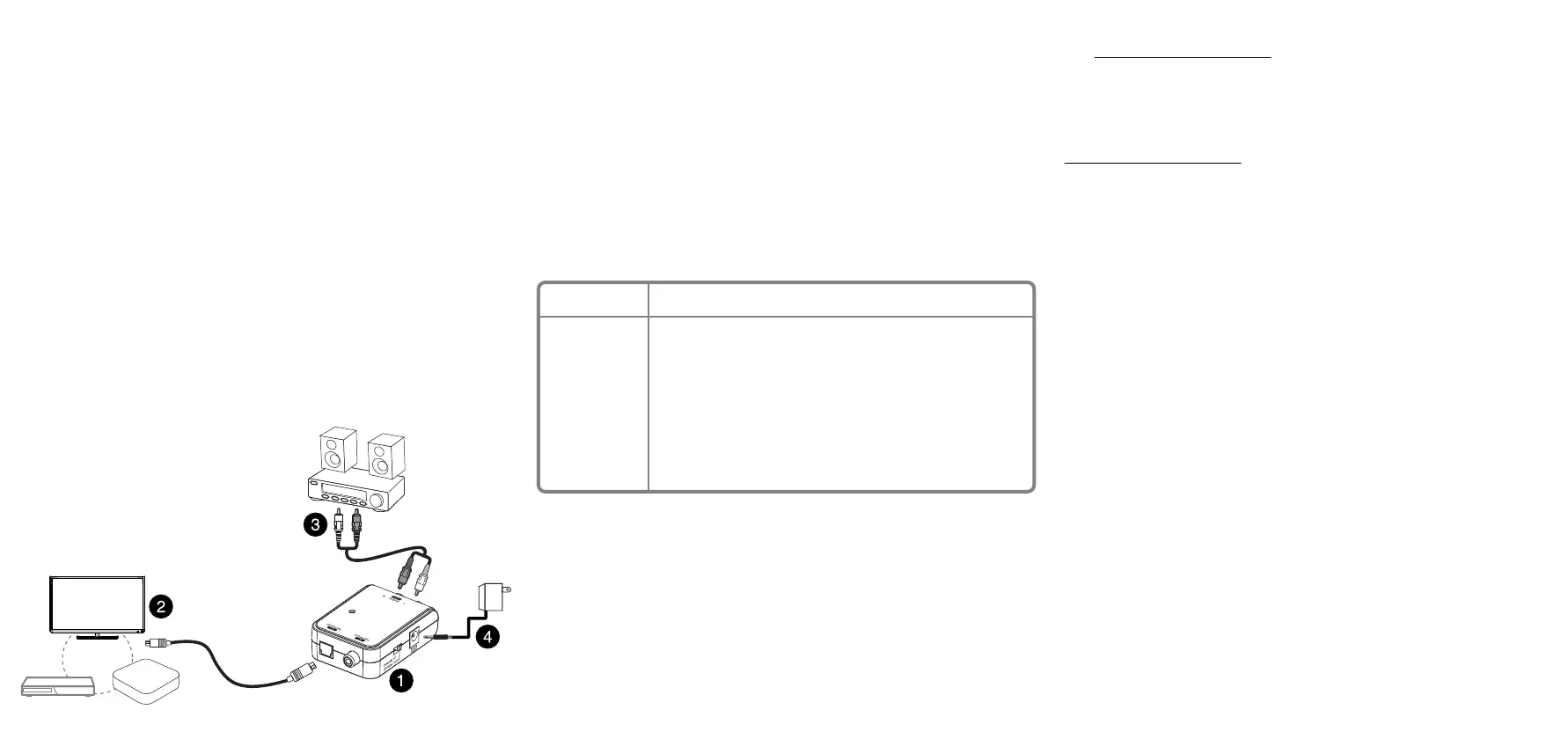

RCA cable (included)
Digital Coaxial cable
(not included)
OR
Source device
TV
Streaming
device
Blu-ray/DVD player
PROBLEM
No sound
POSSIBLE SOLUTIONS
• Check the connections and make sure that they are correct and secure.
• Make sure that the audio source device output is in “PCM” format.
• Make sure that the audio source device is powered on and playing back.
• Make sure that the volume on the audio source device is in the mid-level
and is not muted.
• If the power on indicator is not on, make sure that the wall outlet that the
AC adapter is plugged into is a live outlet and that it is turned on (if it is
switched).

Insignia NS-HZ313 Specifications

General

Brand	Insignia
Model	NS-HZ313
Category	Media Converter
Language	English
