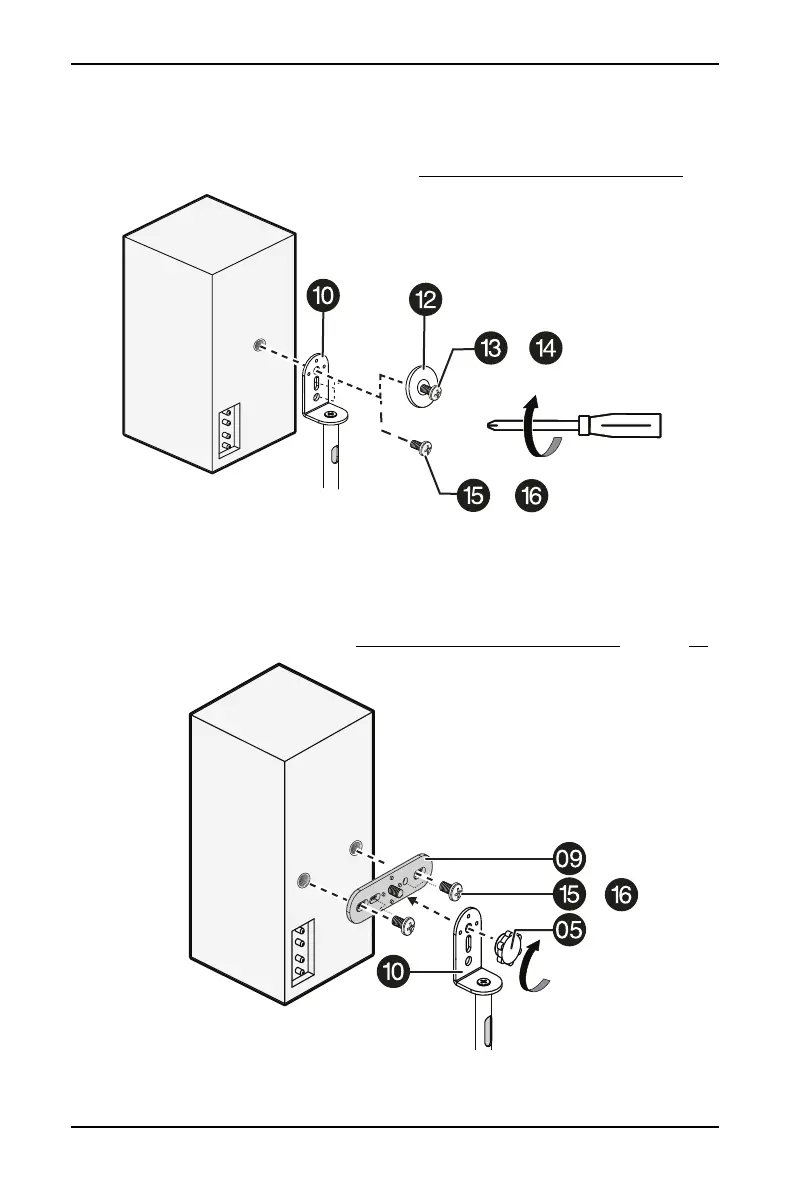

2 For speakers with a single hole in the back - Attach the speaker to the stand
using an M4 washer (12) and an M4 x 7 mm screw (13), an M4 x 10 mm screw
(14), or an M5 x 12 mm screw (15) or 1/4-20 x 1/2 in. screw (16) with no
washer. Tighten securely, then skip to STEP 4 - Routing the speaker cables
.
3 For speakers with two holes in the back - Attach the dual bracket (09) to the
speaker (threaded screw facing outwards) with two M5 x 12 mm screws (15),
or two 1/4-20 x 1/2 in. screws (16). Tighten securely.
Attach the speaker/bracket assembly to the stand with an adjusting nut (05).
Tighten securely then skip to STEP 4 - Routing the speaker cables
on page 17.
