Pg. 12 V05032021

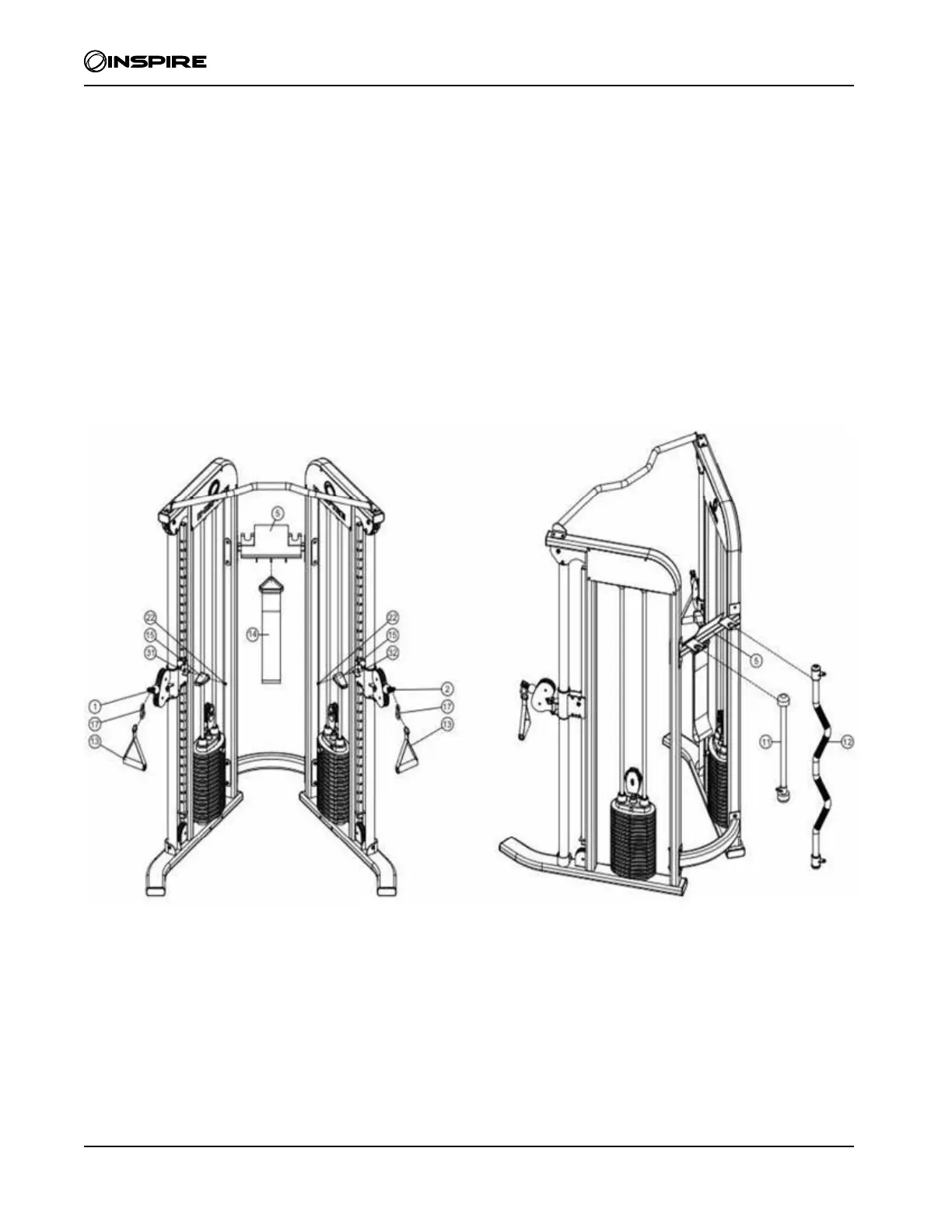

STEP 3
A. Attach the Height Adjustment Handle (#15) to the Left Lock Switch (#32) on the Pulley Carriage. (Not shown on
diagram) And secure it with one M5 x 10 Allen Bolt (#22). Repeat the same procedure to install the other side.
B. Connect the Single Handle (#13) to the Cable (#1) on the Right Station (#1) with a Spring Clip (#17). Repeat the same
procedure to install the other side.
C. Lift up the Height Adjustment Handle (#15) and slide the Pulley Carriage along the Pulley Carriage Support Frame to
the selected level. Release the Handle to lock the Pulley Carriage in position.
D. Store Curl Bar (#12), and Rope (#11) onto the Hanger Bracket behind the Upper Cross Brace (#5). Hang Chin Up Belt
(#14) on Upper Cross Brace (#5).
