FUNCTIONAL TRAINER ASSEMBLY INSTRUCTIONS

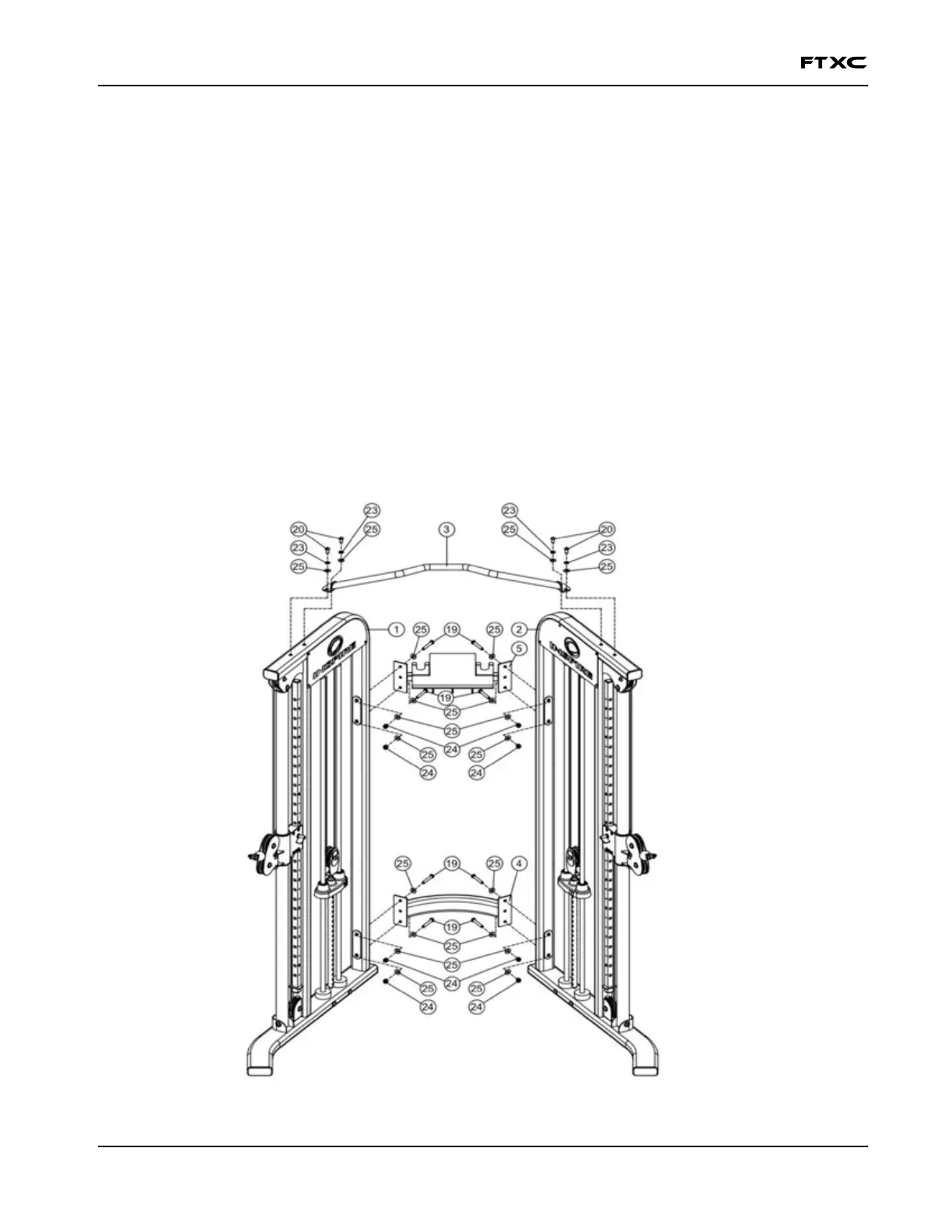

STEP 1
A. Do not tighten the Nuts and Bolts until instructed to do so.
B. Place the Lower Cross Brace (#4) between the Right & Left Stations (#1 & #2) in the mid-span.
C. Attach one end of the Lower Cross Brace to the Right Station. Secure it with two M10 x 70 Allen Bolts (#19) four Ø 10
Washers (#25), and two M10 Aircraft Nuts (#24). Repeat the same procedure to install the other side.
D. Repeat Procedure B & C to install the Upper Cross Brace (#5).
E. Place the Pull Up Bar Assembly (#3) on top of the Right and Left Stations.
F. Secure each end with two M10 x 25 Allen Bolts (#20), two Ø 10 ” Lock Washers (#23), and Ø 10 Washers (#25).
G. Securely tighten all Nuts and Bolts installed.
