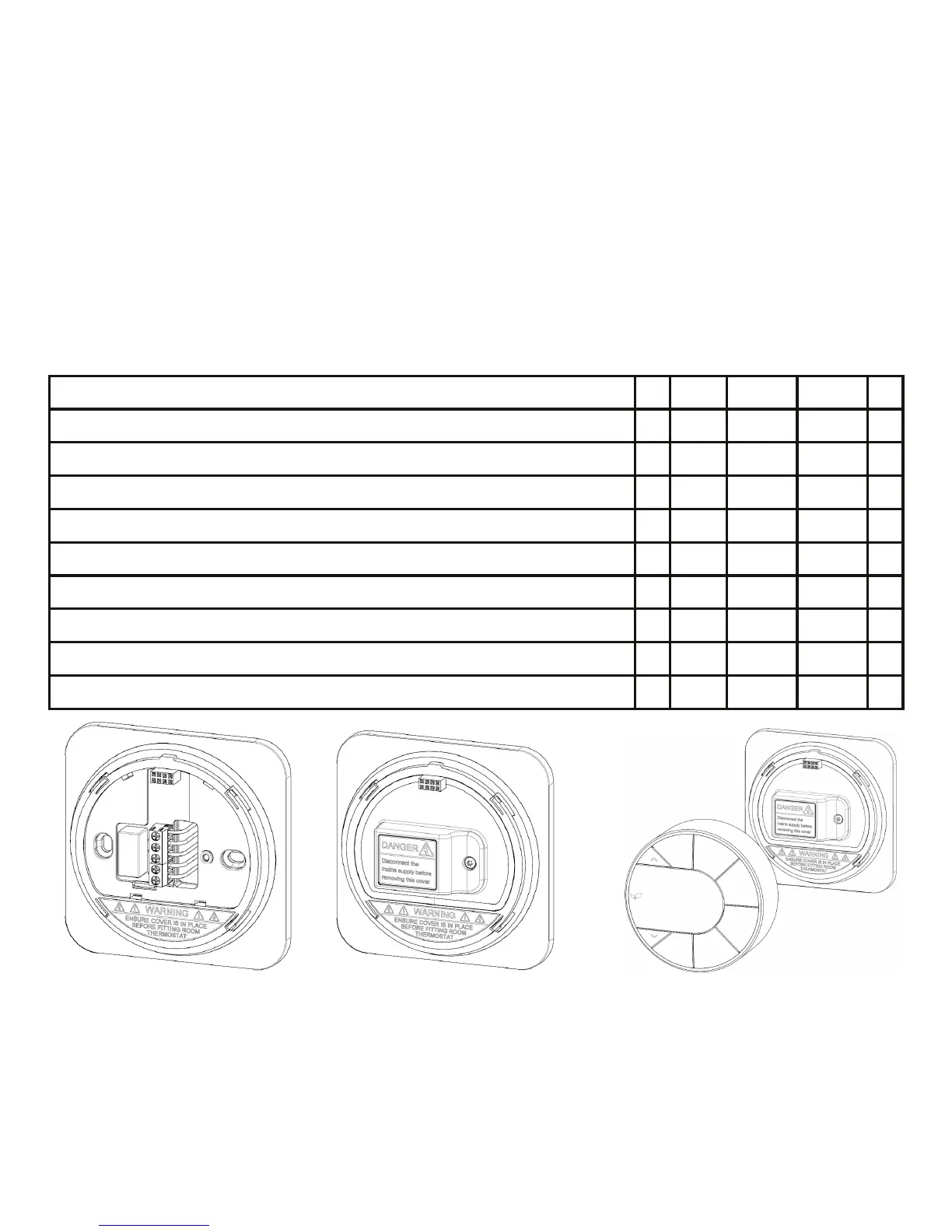

After the wiring has been completed, push the wiring cover into place and
secure using the screw provided. (Fig 10)
Finally place the Thermostat over the cover, this will click into place. (Fig 11)
Wiring Conversions (more at www.inspirehomeautomation.co.uk/wiring.html)
Fig 9 Fig 10 Fig 11
7
Ignite N L1 L2 1 2
Danfoss RET 230/230F N L Link Link 3
Danfoss TP1 N Link Link 1
Danfoss RTC, RTM, RSR, R504 N 3 Link Link 1
Drayton RTS 1, 2, 3 2 1 Link Link 3
Drayton RTS 4, 5, 9, 10 N L 1 3
Horstmann HRT4-A, HFT4, HTT4 2 1 Link Link 4
Horstmann HRT2, HRT3 4 1 Link Link 3
Honeywell T6360B, 6060, 6061, 6063 2 1 Link Link 3
Potterton PRT1, PRT2, 100 ST, 100 DT N T/TL Link Link H
L
