Step 22
Attach Guide Cables

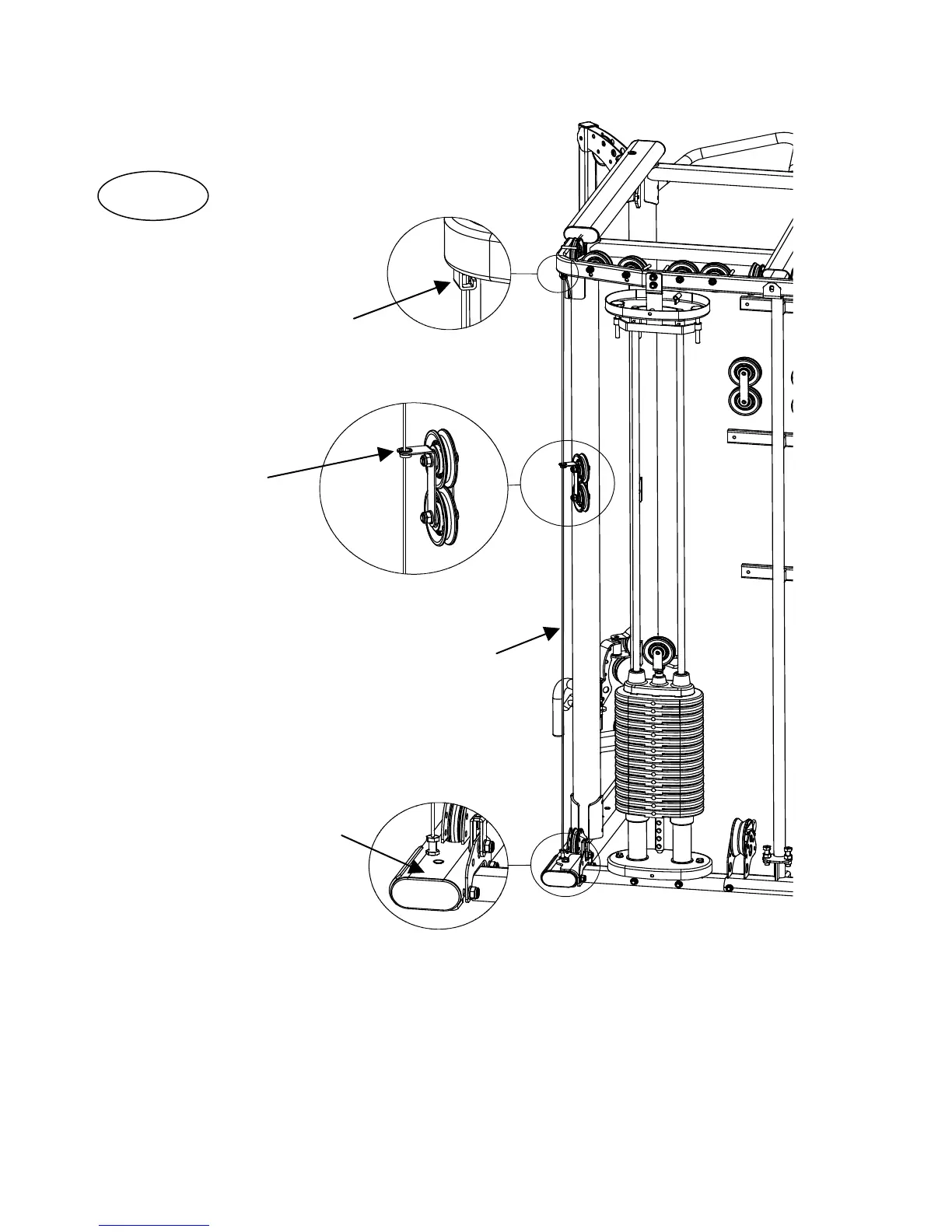

Step 22: Feed the small end of the Guide Cable up through the bushing in the Floating Pulley Assembly
and attach the end to the hook on the bottom of the Top Weight Stack Mount. Insert the bolt
end into the threaded hole in the Base Beam. Tighten the bolt so the Guide Cable is taught, but
do not over tighten. Tighten the jam nut.
Repeat this process for the Guide Cable on the other side of the machine.
Page 22
Bushing in Floating
Pulley Assembly
Hook on bottom of Top
Weight Stack Mount
To Next Page
