Inspire SCS-202 User Manual

Step 26
Step 26:
Slide a Shroud Bracket into the pocket at each end of a Fabric Shroud so the hole in the back of the
bracket aligns with the square opening in the shroud. For a clean look, the seam or fabric overlap
should be facing inward.
Slide the upper end of the Fabric Shroud, with Shroud Bracket inserted, over the upper Shroud Mount
Plate. Secure the shroud to the plate with three Shroud Plate Connector Pins.
Slide the lower end of the Fabric Shroud, with Shroud Bracket inserted, over the lower Shroud Mount
Plate. Secure the shroud to the plate with three Shroud Plate Connector Pins.
Turn the Shroud Tightening Knobs to tighten the Fabric Shroud and remove any possible wrinkles.
Repeat this process for the second Fabric Shroud.
Page 25

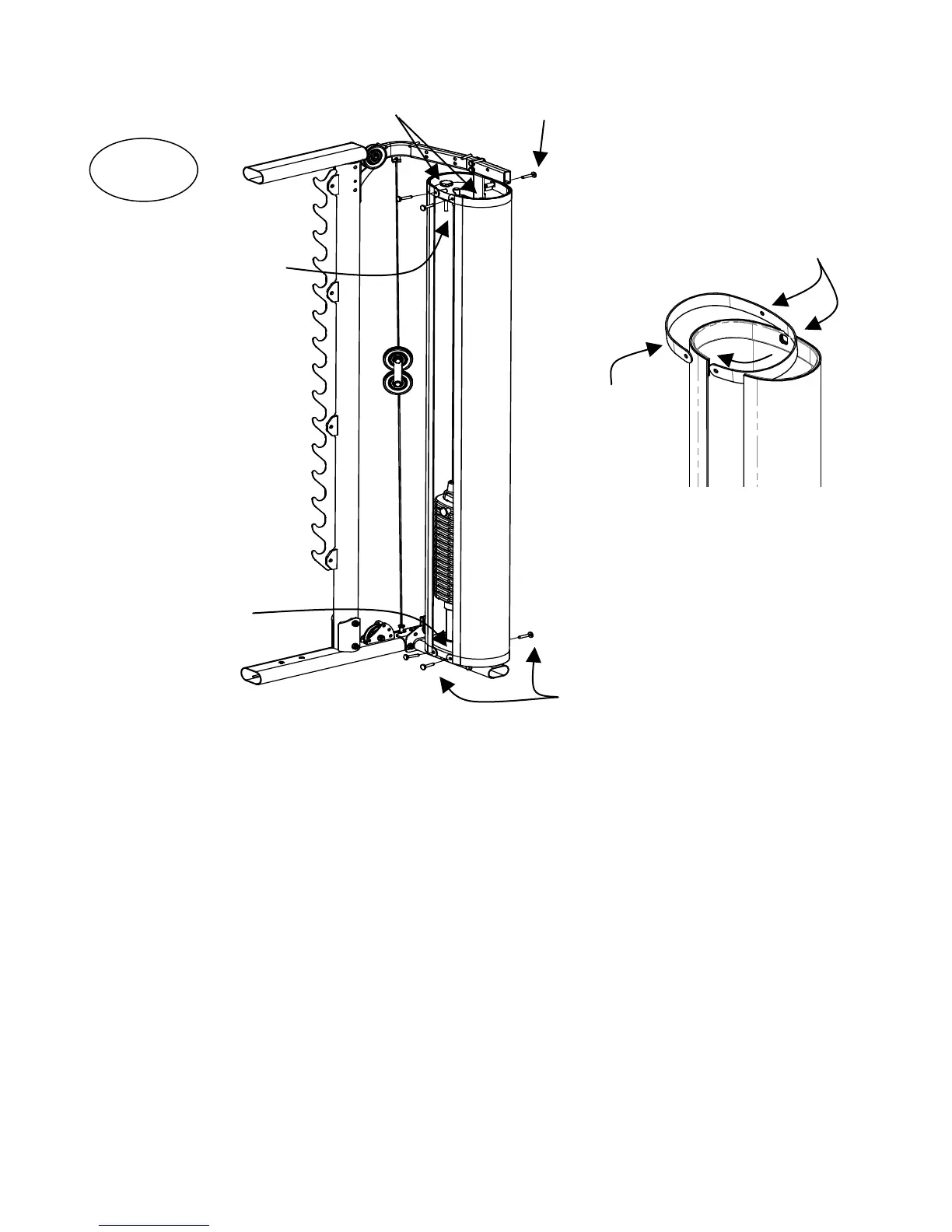

While sliding the Shroud Bracket
into the pocket of the Fabric
Shroud, align the hole in the
bracket with square opening in
the back of the shroud
Shroud Bracket
Lower Shroud
Mount Plate
Shroud Plate Connector Pins
Shroud Tightening Knobs
Shroud Plate Connector
Pins
Upper Shroud
Mount Plate
