TRAILER/STROLLER ASSEMBLY
A
B C
D E F

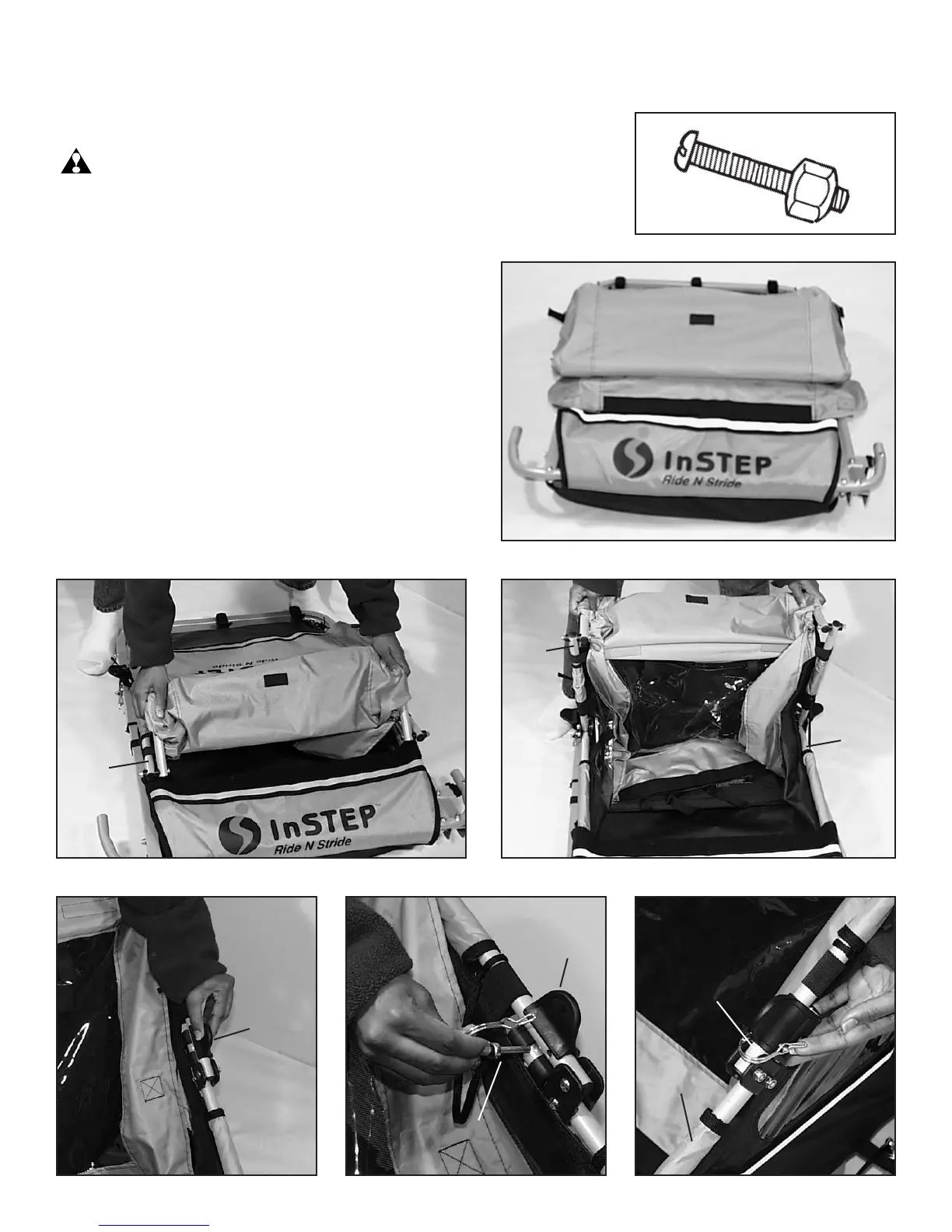

Step 1. Place folded frame on floor with seat
portion facing up (Figure A). Standing
behind the trailer/stroller lift up on the
top of the canopy (Figures B and C).
Next, lock the two black latches into
place by locking them on the side rails
(Figure D). Insert locking pin through
hole in the frame and the black latch
(Figure E). Finally, lock loop end over
the end of the pin (Figure F).
To attach axle to shell
WARNING: This product uses nylon lock nuts to help
eliminate loosening of fasteners from vibration
of trailer/stroller. When tightening lock nuts, the
bolts must extend through the nuts completely.
Side
Folding
Rail
Side
Folding
Rail
Side
Support
Rail
Back
Latch
Back
Latch
Locking
Pin
Locking
Pin
Side
Support
Rail
To Next Page
