GEARBOX
The oil in the gearbox of your FORCE/2 should be changed every year to ensure
proper lubrication of the gears and seals.
Changing oil in all direct drive models:
Model 22015
Place the machine on its side with clear access to the two
drain/fill plugs on the gearbox. Place a drain pan under each
plug to catch the used oil. Remove the drain plug from each
of the two gearbox chambers with a 90º 3/8 inch hex
wrench. Drain the oil into the pans. To refill, pour four
ounces of oil into a six ounce disposable paper cup. Bend
cup lip to form a pouring spout. Pour a total of 20 ounces
into worm gear case and 16 ounces into bevel gear case, and reinstall plugs using the
hex wrench. Note: At cold temperatures, oil thickens, slowing the draining process.
Leave your machine in a warm area overnight (eight hours) to make oil changing

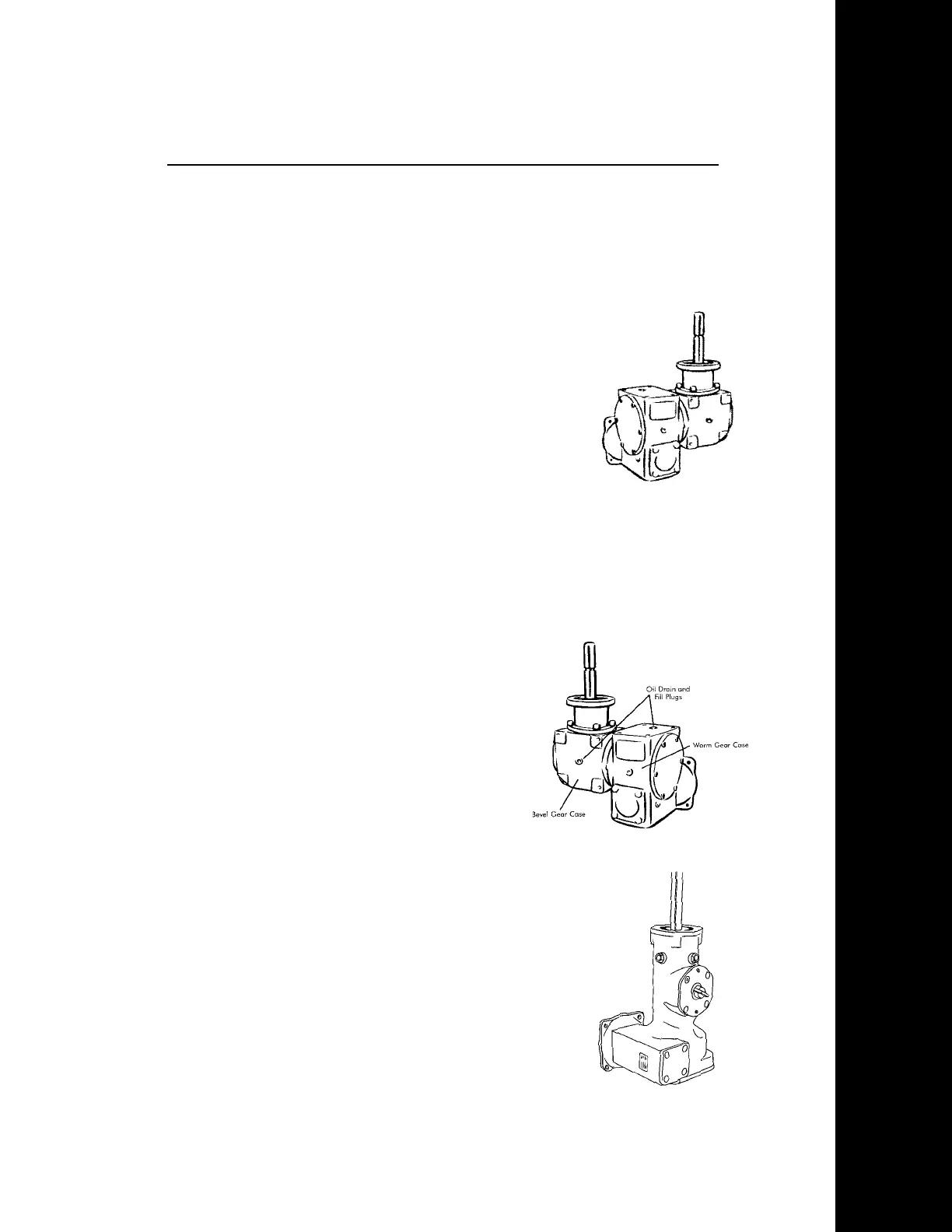

easier. See illustration for the location of the drain/fill plugs.
Recommended gearbox oil:
Model 22015 (Mfg from 7/89-11/02)
Reintroduced (12/06 to present)
Temperature 40˚ - 100˚ F Mobil SHC 634 gear lube
Temperatures -20˚ - +40˚ F Mobil 1 synthetic 5W-30
Worm gear case capacity 20 oz.
Bevel gear case capacity 16 oz.
Model 22014
Model 22014 (Mfg from 8/02-12/06)
La
y mac
hine on its side with clear access to the bottom drain
plug
.
Place dr
ain pan under dr
ain plug and r
emo
v
e using a
5/16 hex wrench. Drain oil into pan, tip machine upright to
drain remainder of oil in gearbox housing, close vent plug.
P
our 48 ounces into w
or
m g
ear case and re-install drain plug.
Tip machine on side and open vent plug 1/4- 1/2 turn by
hand.
Note: In cold temper
a
tur
es the oil thic
kens slowing
the draining process. Leave the machine in a warm area
overnight (eight hours) to make oil changing easier. See
illustration for location of vent and drain plugs (page 22).
THE FORCE
/
2
Maintenance, Cont.
MAINTENANCE
Model 22015
Model 22014
21
Model 22015
08/2002
