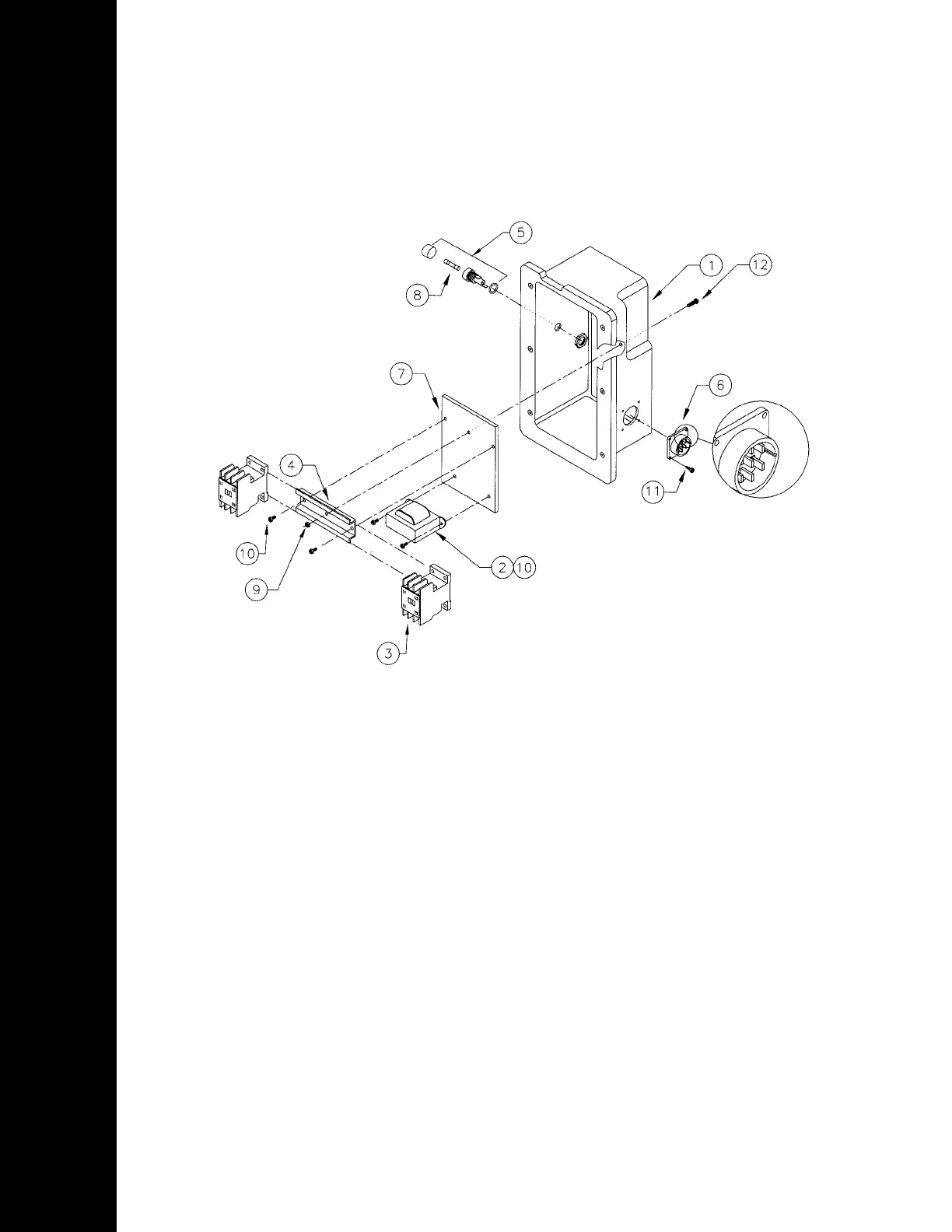

ELECTRICAL DRAWINGS
42
Item # PART NUMBER DESCRIPTION
1 ........22001-03 ......ELECTRICAL BOX W/CURVE, WHOLES
2 ........21002............TRANSFORMER 110 VOLT
3 ........21003-02 ......ELECTRICAL CONTACTOR (2 HP)
4 ........21003-03 ......ELECTRICAL CONTACTOR MOUNT RAIL
5
........
21017-02 ......FUSE HOLDER, BLOWER
6 ........21019 ............ELECTRICAL BOX FLANGE CONNECTOR
7 ........21020-01 ......ELECTRICAL BOX MOUNTING PLATE 1/8 X 5 X 6-3/8
8
........21025-07 ......FUSE, 15 AMPS
9
........
F120..............8-32 NYLON INSERT LOCK NUT
1
0
........
F1
26..............8-32 X 1/4 PP ZN
1
1
........
F1
58
..............
6 X 1/2 SMS PP ZN
12........F141..............B-32 X 1/2" PP ZN
Electrical with GFCI
Mfg from 8/02 - Present
VERSION A
