Integra DHC-80.2B Service Manual

DHC-80.2
SERVICE PROCEDURE-2
Main:
1.03/10806AH
DSP 1st/NET:
1.02/10809AHA
Video:
1.02/10806AR
DSP 2nd:
1.00/10519AH2
VSP(Reon):
1.01/10624AEO
Main:
1.03/10806AH
TONE
TONE TONE
TONE
Display
On/Standby
TONE TONE
TONE TONE
TONE TONE
TONE TONE
DSP 3rd:
1.03/10909BH3
VSP(Reon):
1.01/10624AEO
[TX-NR5008, NR3008, PR-SC5508]
AEO
[DTR-70.2, DTR-80.2, DHC-80.2]
AEI
Tone
Tone

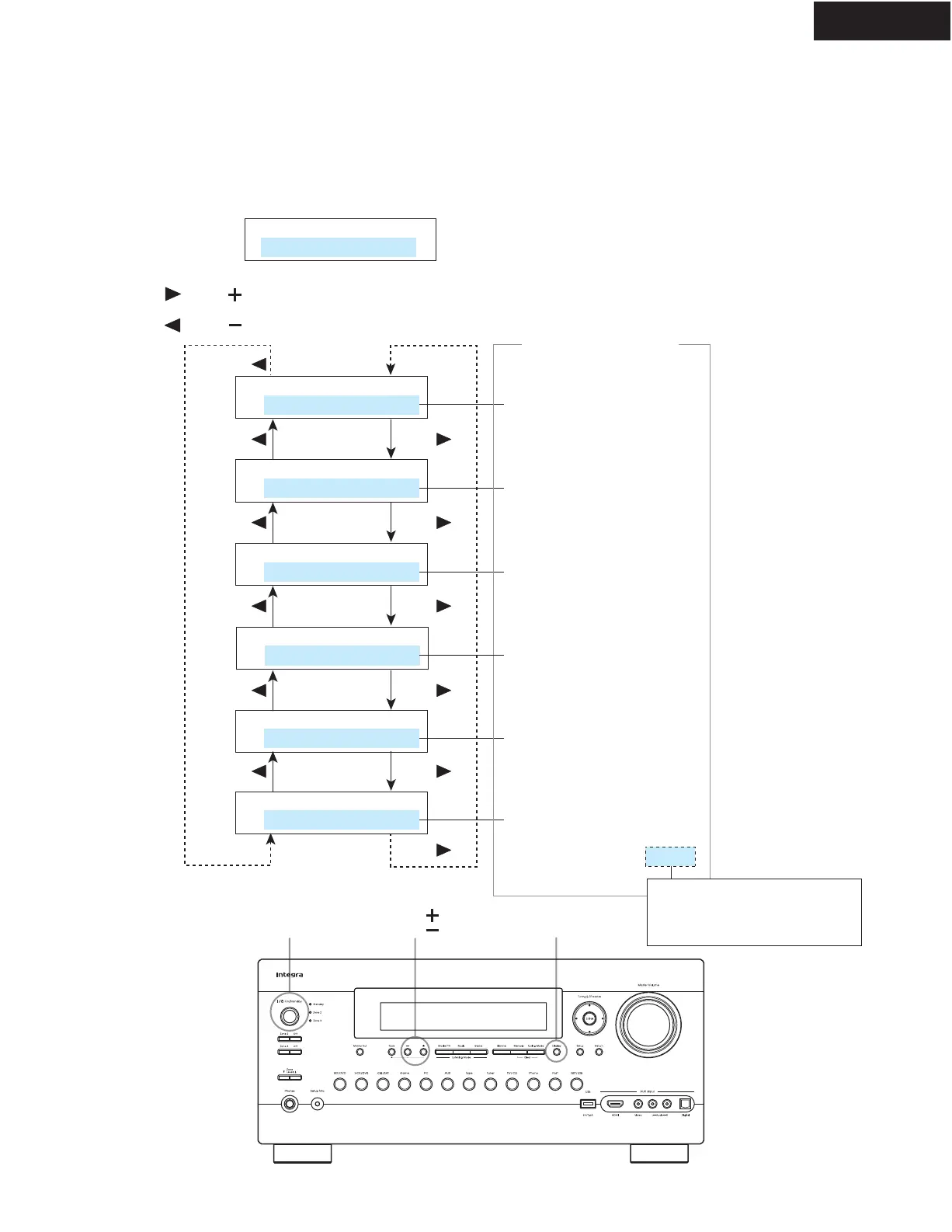

5. To check version of Microprocessor, DSP and Video FW(Firmware)
1. ON/STANDBY (Power On)
2. DISPLAY + ON/STANDBY.
3. TONE [Tone ] ---> Forward
TONE [Tone ] ---> Reversed.
4. ON/STANDBY (Power Off).
Main Microprocessor
1st DSP/NET (DA830)
Video Microprocessor
2nd DSP
VSP (Video Signal Processor)
FW Version displayed
only for 3 seconds.
[e.g.] TX-NR5008
[ ] : DTR-70.2/ 80.2, DHC-80.2
3rd DSP
