15.
Zone 2 button: Controls the multi-zone function (P29).
Off button: Switches the multi-zone function off (P29).
16.
Zone 2 Level 4/3 buttons: Adjust the volume of the
multi-zone feature (P29).
17.
Phones jack: Headphones with a standard plug
(Ø1/4"/6.3 mm) are connected.
18.
Input selector buttons: Switches the input to be played.
19.
AUX Input Video/Audio jacks: Input the video and audio
signals from an external player with an analog audio/
video cable.
20.
Setup Mic jack: The supplied speaker setup
microphone is connected.

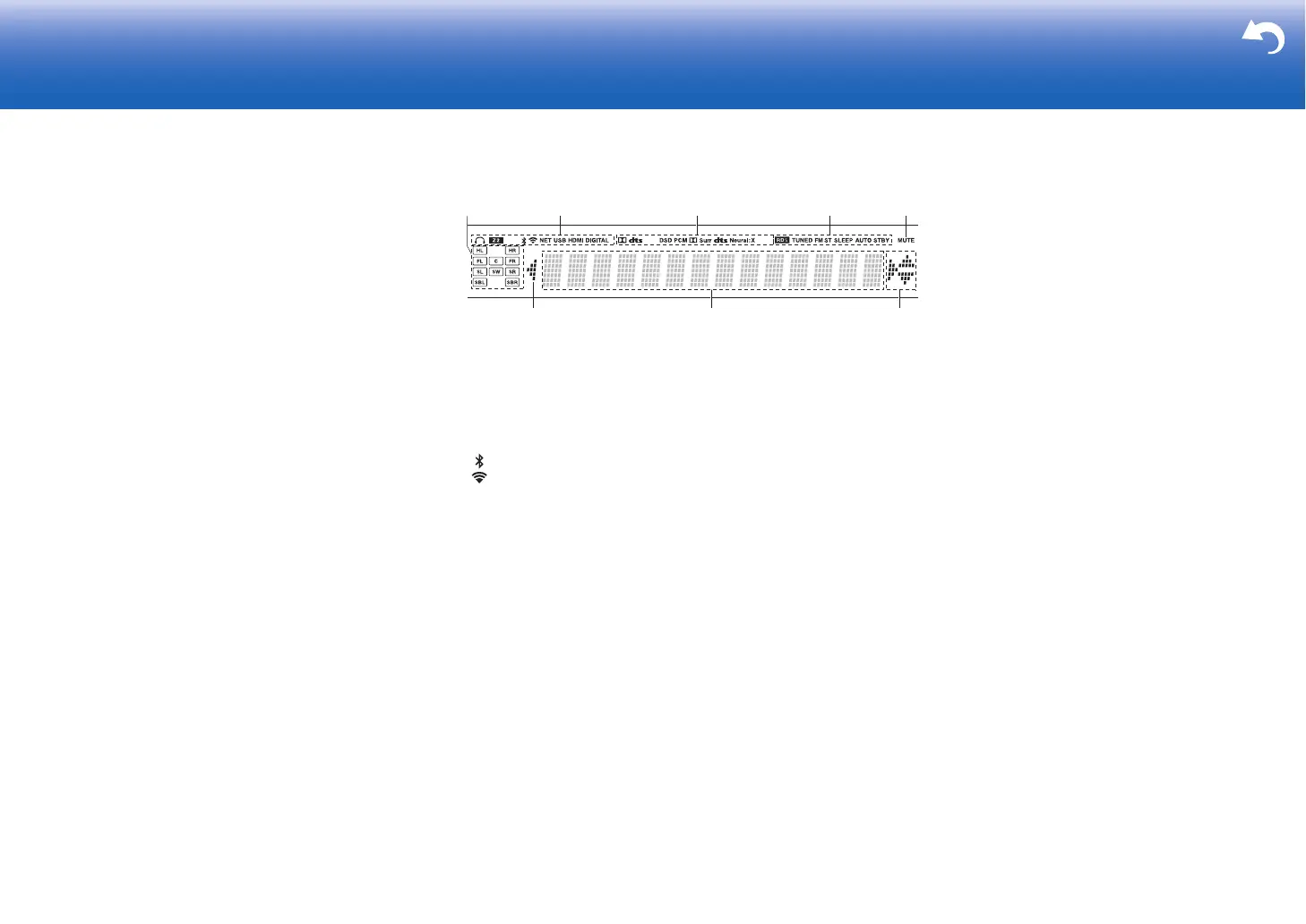

Display
1. Speaker/Channel display: Displays the output channel that
corresponds to the selected listening mode.
2. Lights in the following conditions.
Ë: When headphones are connected.
Z2: When ZONE 2 is on.
: When connected by BLUETOOTH.
: When connected by Wi-Fi.
NET: When "NET" is selected with the input selector and the unit is
connected to the network. It will flash if the connection to the network is
not correct.
USB: When "NET" is selected with the input selector and the unit is
connected by USB and the USB device is selected. Flashes if the USB
is not properly connected.
HDMI: When HDMI signals are input and the HDMI input is selected.
DIGITAL: When digital signals are input and the digital input is
selected.
3. Lights according to the type of input digital audio signals and the
listening mode.
4. Lights in the following conditions.
RDS (Australian models): Receiving RDS broadcasting.
TUNED: Receiving AM/FM radio.
FM ST: Receiving FM stereo.
SLEEP: When the sleep timer is set. (*)
AUTO STBY: Auto Standby is on. (*)
5. Flashes when muting is on.
6. Displays various information of the input signals. Characters that
cannot be displayed on this unit are replaced with asterisks ( ＊ ).
7. This may light when performing operations with the "NET" input
selector.
(*)You can find details in the Advanced Manual.
