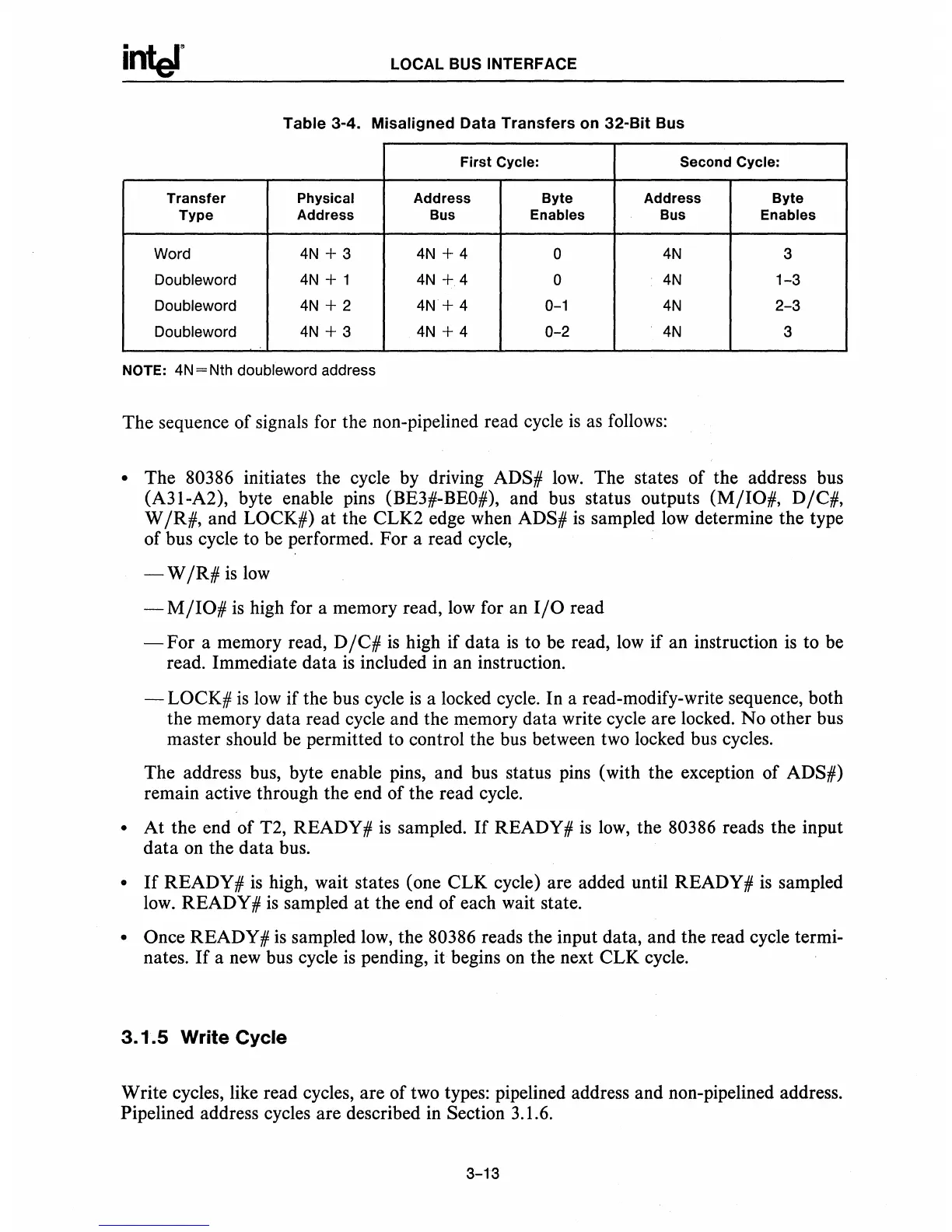

Intel 80386

LOCAL BUS INTERFACE
Table 3-4. Misaligned Data Transfers on 32-Bit Bus
First Cycle: Second Cycle:
Transfer Physical Address
Byte
Address
Byte
Type
Address Bus
Enables Bus
Enables
Word 4N + 3 4N + 4 0 4N 3
Doubleword 4N + 1 4N + 4 0 4N 1-3
Doubleword
4N + 2 4N+ 4
0-1
4N
2-3
Doubleword 4N + 3 4N + 4
0-2
4N 3
NOTE: 4N = Nth doubleword address
The sequence of signals for the non-pipelined read cycle is as follows:
• The 80386 initiates the cycle by driving ADS# low. The states of the address bus
(A31-A2), byte enable pins (BE3#-BEO#), and bus status outputs
(M/IO#, D/C#,
W /R#, and LOCK#) at the CLK2 edge when ADS# is sampled low determine the type
of bus cycle to be performed. For a read cycle,
-W/R#is low
-M/IO# is high for a memory read, low for an I/O read
- For a memory read, D
/C# is high if data is to be read, low if an instruction is to be
read. Immediate data
is included in an instruction.
-
LOCK# is low if the bus cycle is a locked cycle. In a read-modify-write sequence, both
the memory data read cycle and the memory data write cycle are locked. No other bus
master should be permitted to control the bus between
two locked bus cycles.
The address bus, byte enable pins, and bus status pins (with the exception of
ADS#)
remain active through the end of the read cycle.
• At the end of T2, READY# is sampled. If READY# is low, the 80386 reads the input
data
on the data bus.
• If READY# is high, wait states (one CLK cycle) are added until READY# is sampled
low. READY # is sampled at the end of each wait state.
• Once READY # is sampled low, the 80386 reads the input data, and the read cycle termi-
nates. If a new bus cycle is pending, it begins on the next CLK cycle.
3.1.5 Write Cycle
Write cycles, like read cycles, are of two types: pipelined address and non-pipelined address.
Pipelined address cycles are described in Section 3.1.6.
