Intel Desktop Board DG43NB Product Guide
48
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to
the 3-pin and 4-pin chas
sis fan headers on the De
sktop
Board.
Figure 22 shows the location of
the
chassis fan headers.

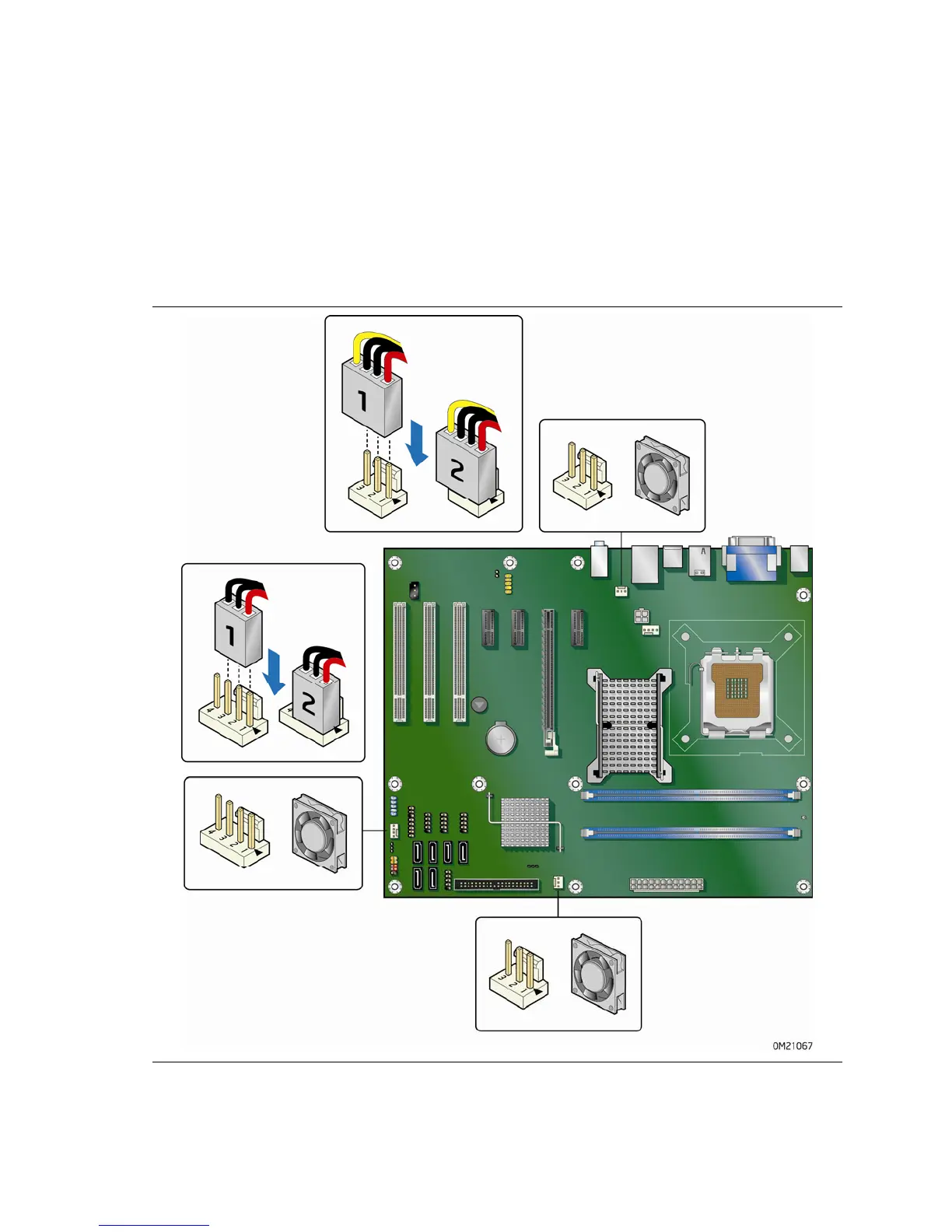

Figure 22. Location of t
he Chassis Fan Headers
47
