Installing and Replacing Desktop Board Components
33
Connecting Supply Power Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2)
power connector to the Desktop Board may result in damage to the board or the
system may not function properly.
Figure 12 shows the location of the power connectors.

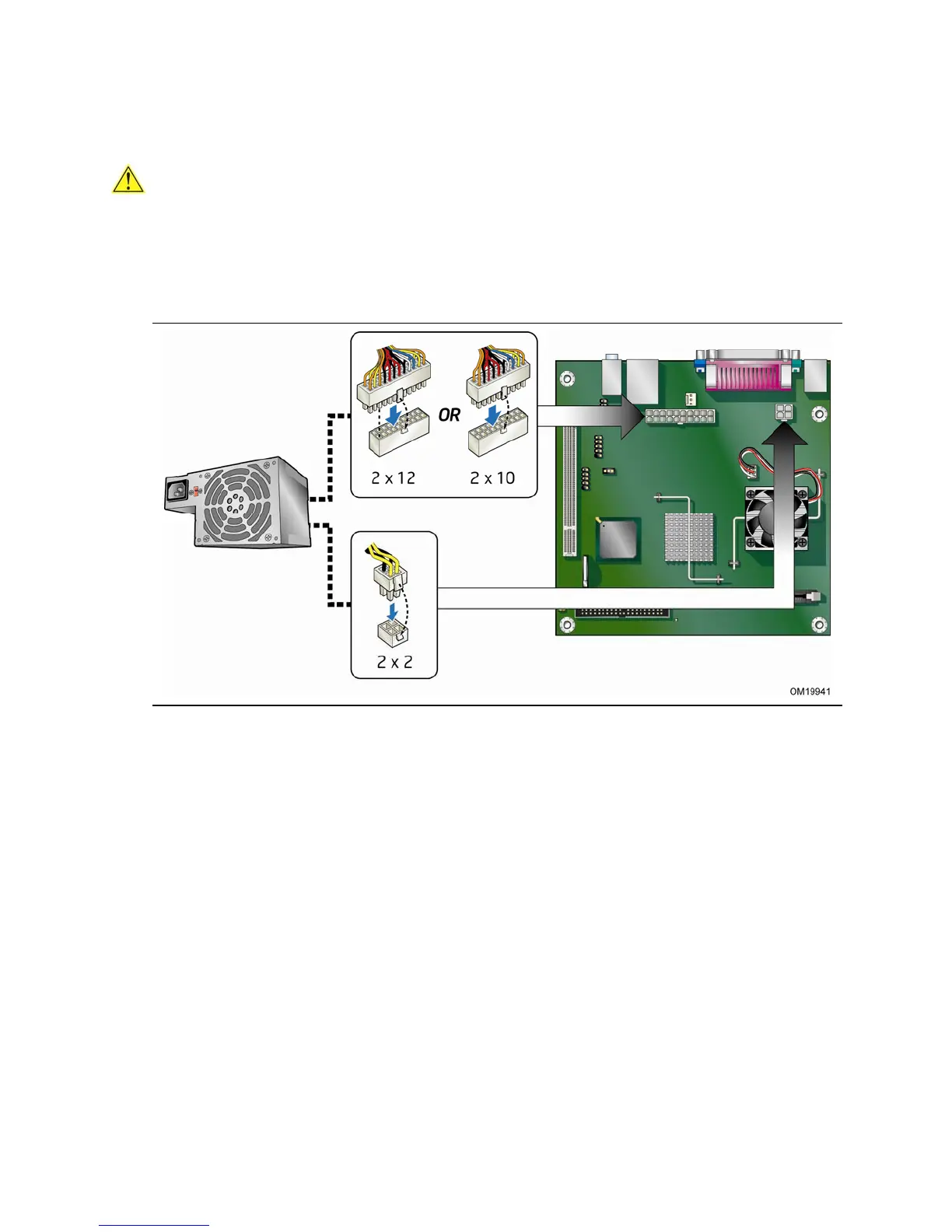

Figure 12. Connecting a 2 x 10 or 2 x 12 Power Supply Cable
1. Observe the precautions in "Before You Begin" on page 21.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 connector
(
Figure 12).
3. Connect the main power supply cable (2 x10 or 2 x 12) to the 2 x 10 connector
(
Figure 12).
