Intel Desktop Board D201GLY Product Guide
34
Setting the Desktop Board Jumpers
NOTE
Always turn off the power and unplug the power cord from the computer before
changing a jumper. Moving the jumper with the power on may result in unreliable
computer operation.

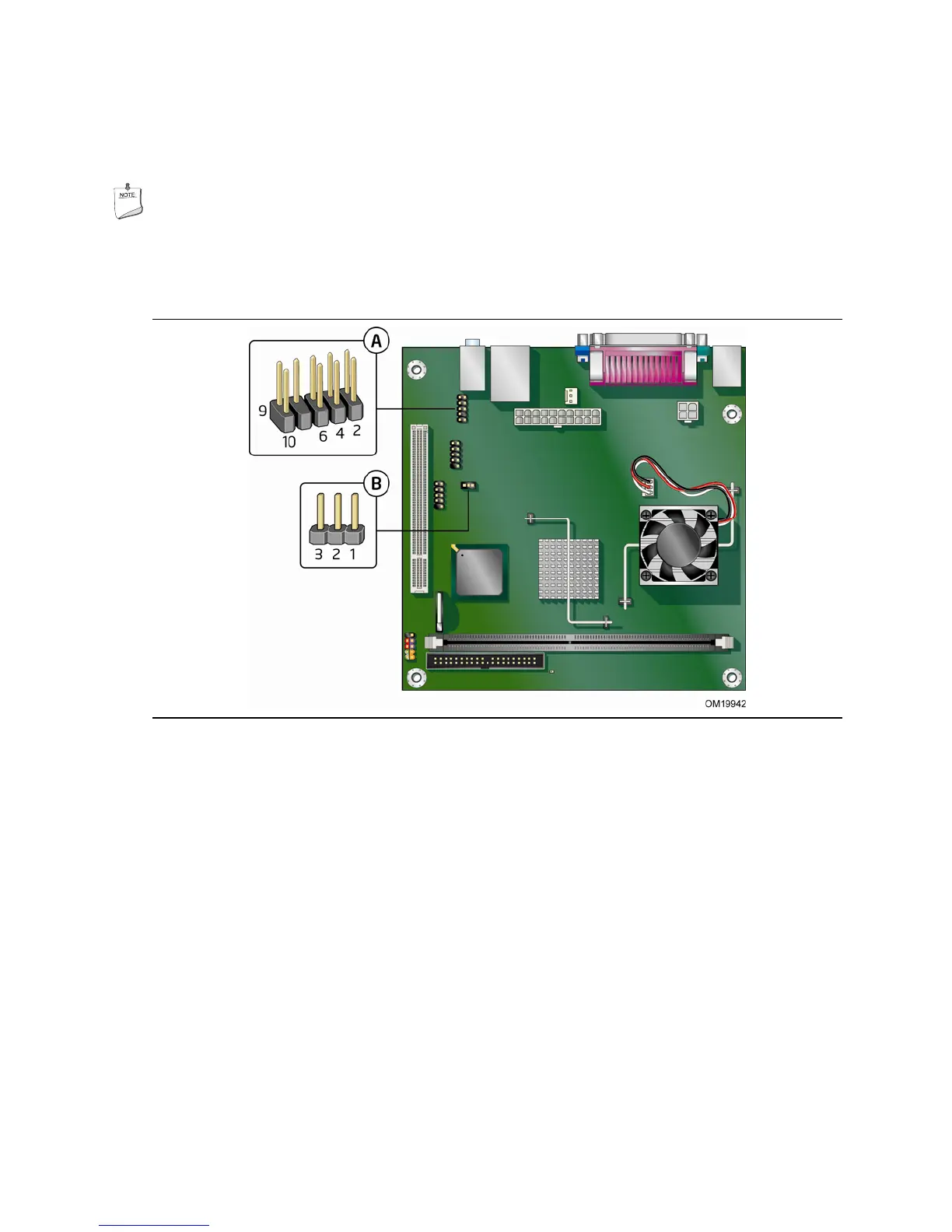

Figure 13. Desktop Board Jumpers
Front Panel Audio Header/Jumper Block
This header (Figure 13, A) has two functions:
• With jumpers installed, the audio line out and mic-in signals are routed to the back
panel audio connectors (see
Figure 2).
• With jumpers removed, the header provides audio line out and mic-in signals for
front panel audio connectors (see
Table 4).
