Intel Desktop Board D865GBF/D865GLC Quick Reference 11
5. Installing an AGP Card
CAUTION
Care must be taken when installing an AGP card into an AGP connector.
When installing any AGP card in the desktop board, ensure that it is fully
seated in the AGP connector before you power on the system. If the card
is not fully seated in the AGP connector, an electrical short may result
across the AGP connector pins. Depending on the over-current protection
of the power supply, certain board components and/or traces may be
damaged.
NOTE
Desktop Board D865GBF/D865GLC is only compatible with 1.5 V and
0.8 V AGP cards. Do not attempt to install a legacy 3.3 V AGP card.
The AGP connector is not mechanically compatible with legacy 3.3 V
AGP cards.
Desktop Board D865GBF/D865GLC has an integrated AGP card retention
mechanism (RM). Follow these instructions to install an AGP card
(see Figure 5):
1. Observe the precautions in “Before You Begin” on page 3.
2. Place the AGP card in the AGP connector.
3. Press down on the card until it is completely seated in the connector and the
card retention notch snaps into place below the RM.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
OM14695
A

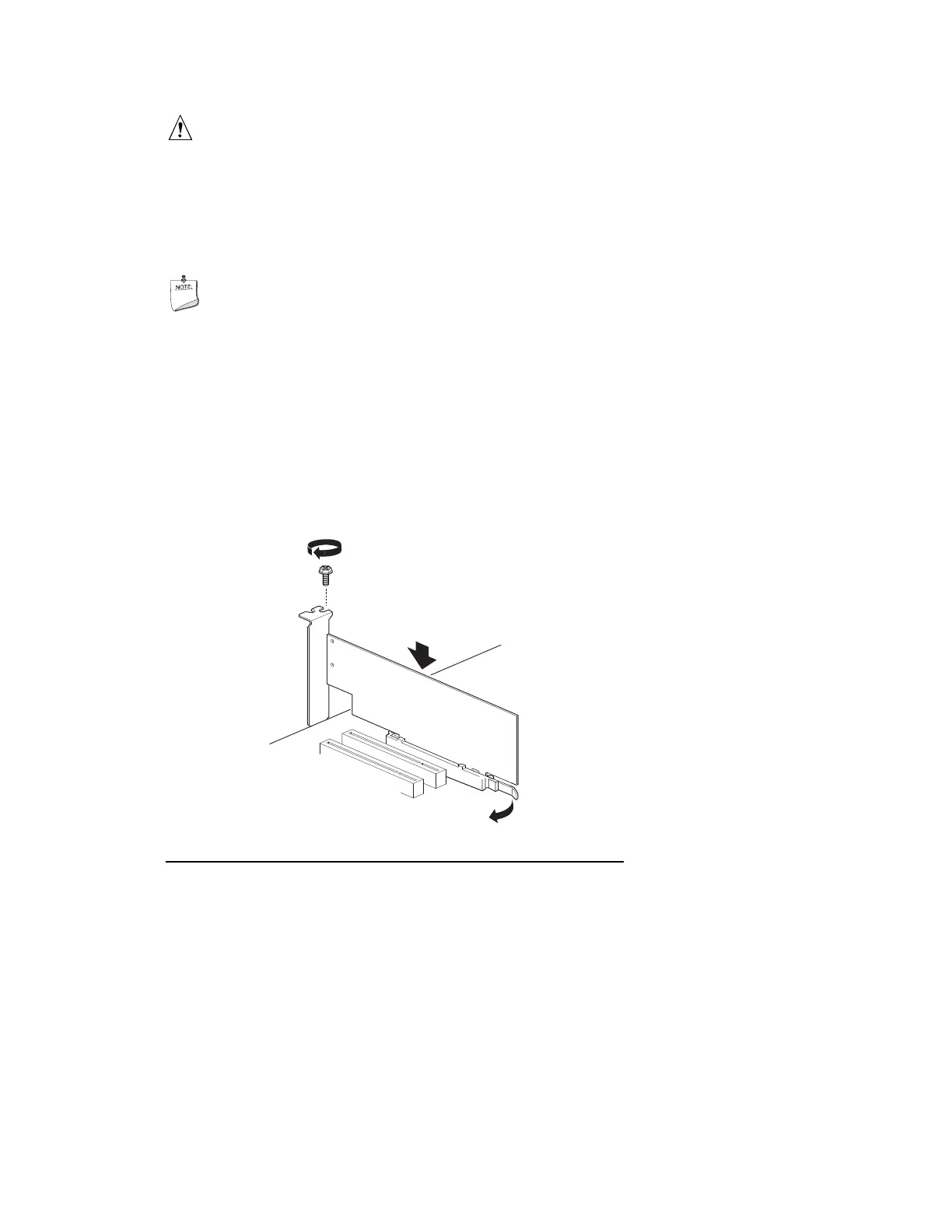

Figure 5. Installing an AGP Card
