Desktop Board D865PERL Specification Update
10
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator
circuit. Failure to do so may result in damage to the voltage regulator circuit.
The processor voltage regulator area (item A in Figure 30) can reach a
temperature of up to 85 °C in an open chassis.

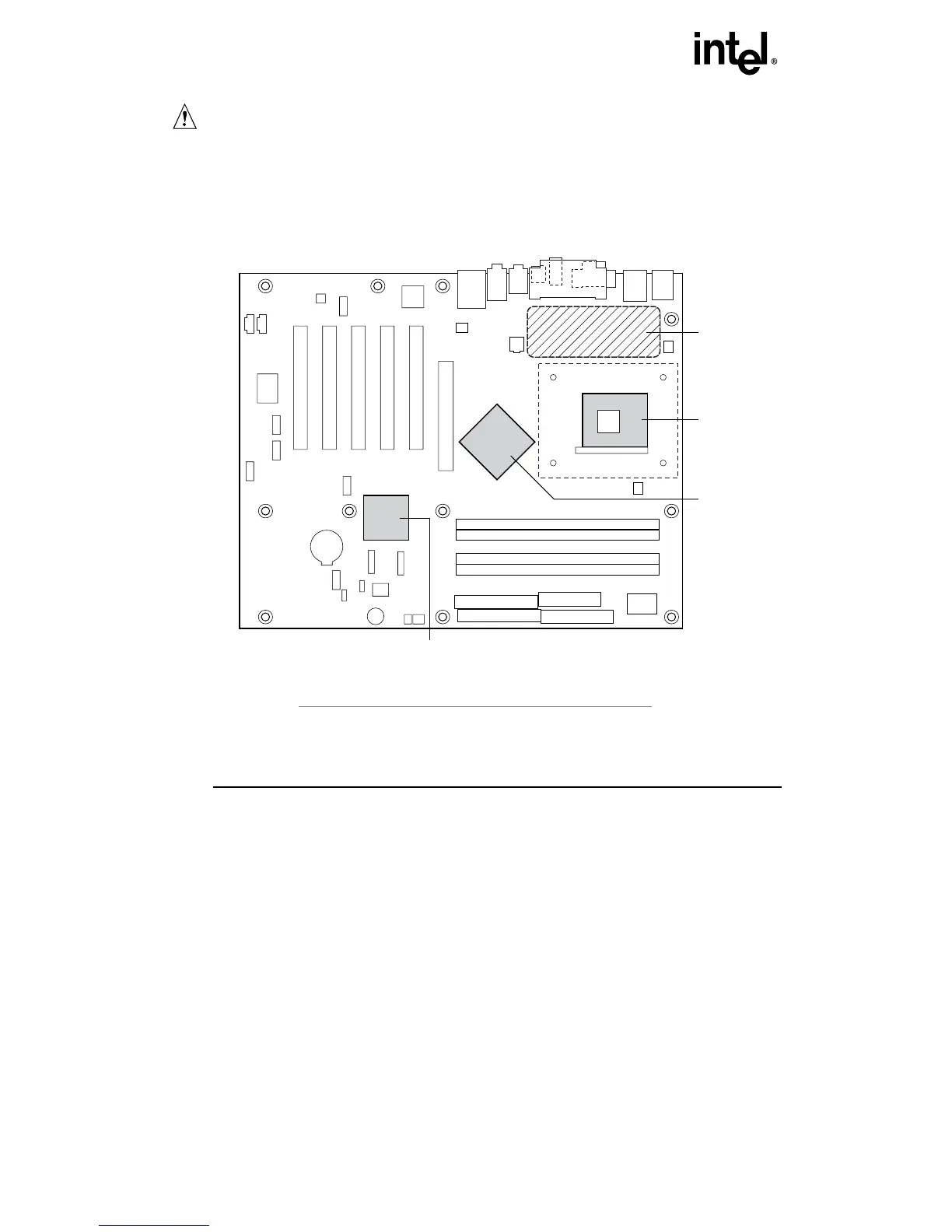

Figure 30 shows the locations of the localized high temperature zones.
OM15903
B
A
D
C
Item Description
A Processor voltage regulator area
B Processor
C Intel
®
82865PE MCH
D Intel
®
82801EB ICH5 or 82801ER ICH5-R
Figure 30. Localized High Temperature Zones
