Installing and Replacing Desktop Board Components
41
Connecting Fan and Power Cables
Connecting Fan Cables

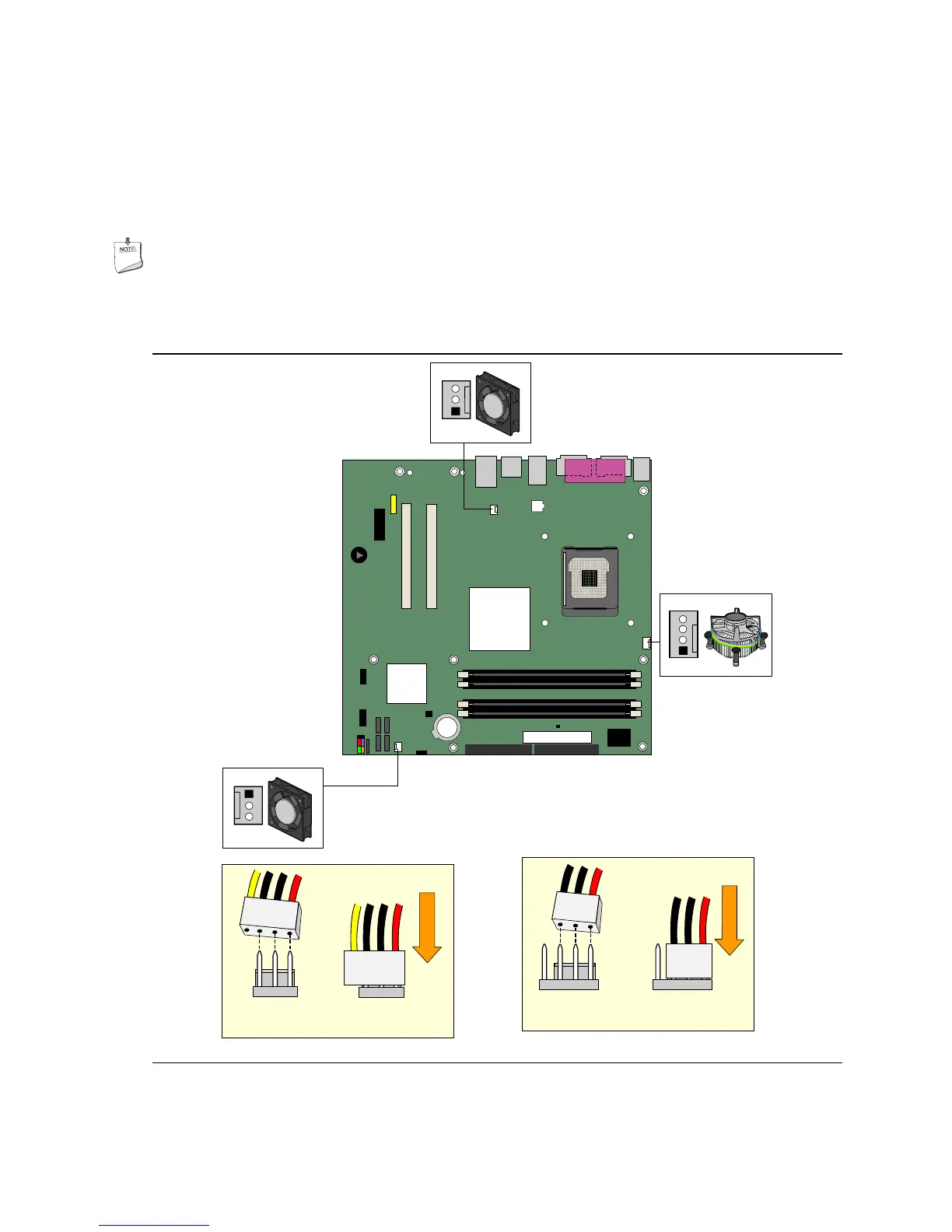

Figure 20 shows the location of the fan headers. Connect the processor’s fan heat sink cable to the
4-pin processor fan header on the board. Connect chassis fan cables to the 3-pin fan headers.
NOTE
If a 3-pin fan connector is used in a 4-pin fan header, the fan will not be controlled and will run at
full speed.
OM17373
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
BA
Figure 20. Location of Fan Headers
