Product Description
29
1.10.3 Thermal Solution

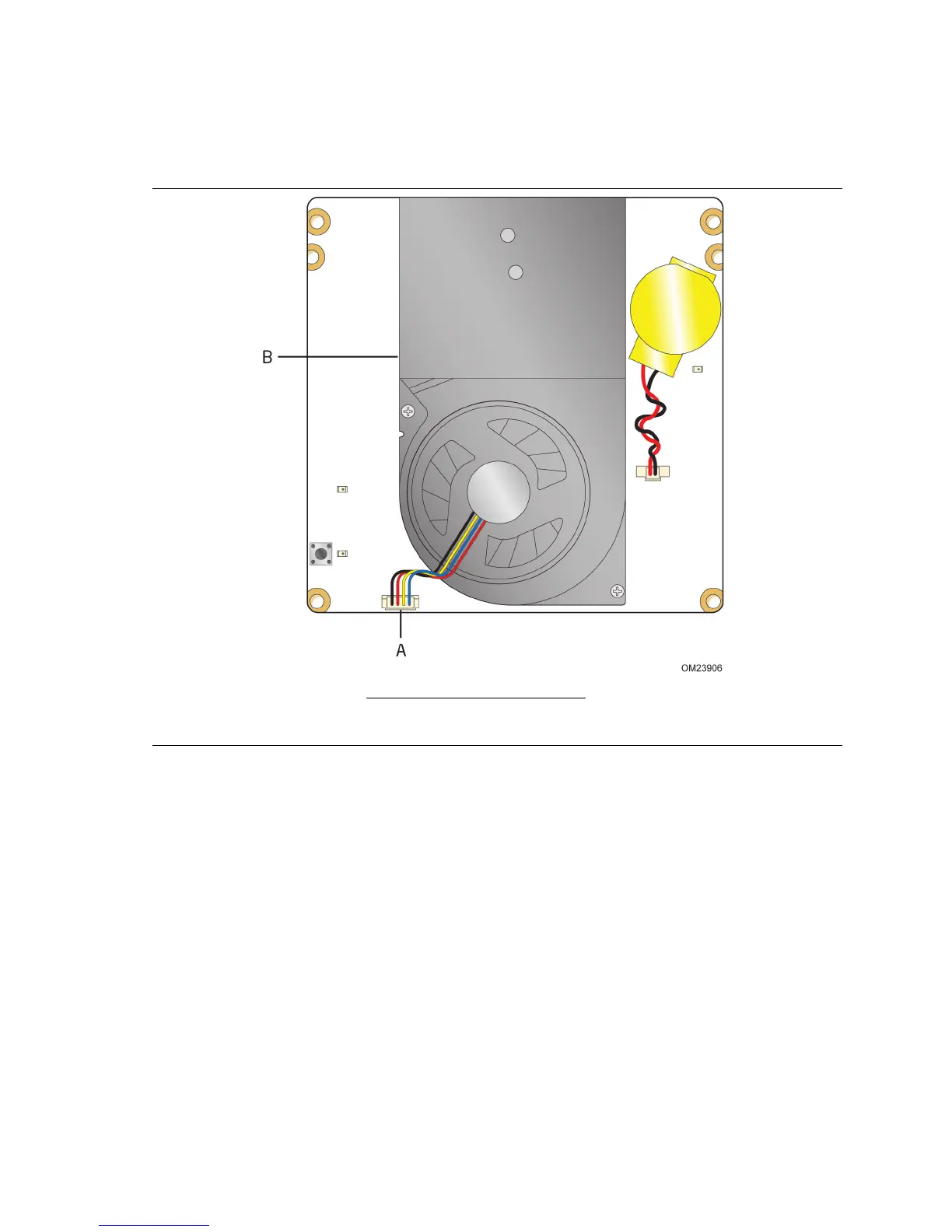

Figure 6 shows the location of the thermal solution and processor fan header.
Item
Description
A Processor fan header
B Thermal solution
Figure 6. Thermal Solution and Fan Header
