Intel Desktop Board DG33FB Product Guide

Connecting the Serial ATA (SATA) Cables

SATA cables support the Serial ATA protocol. Each cable can be used to connect a

single SATA drive to the Desktop Board. For correct cable function:

1. Observe the precautions in "

Before You Begin" on page 25.

2. Attach one end of the SATA cable to one of the SATA connectors on the board

(

Figure 22, A).

3. Attach the other end of the SATA cable to the SATA drive (

Figure 22, B).

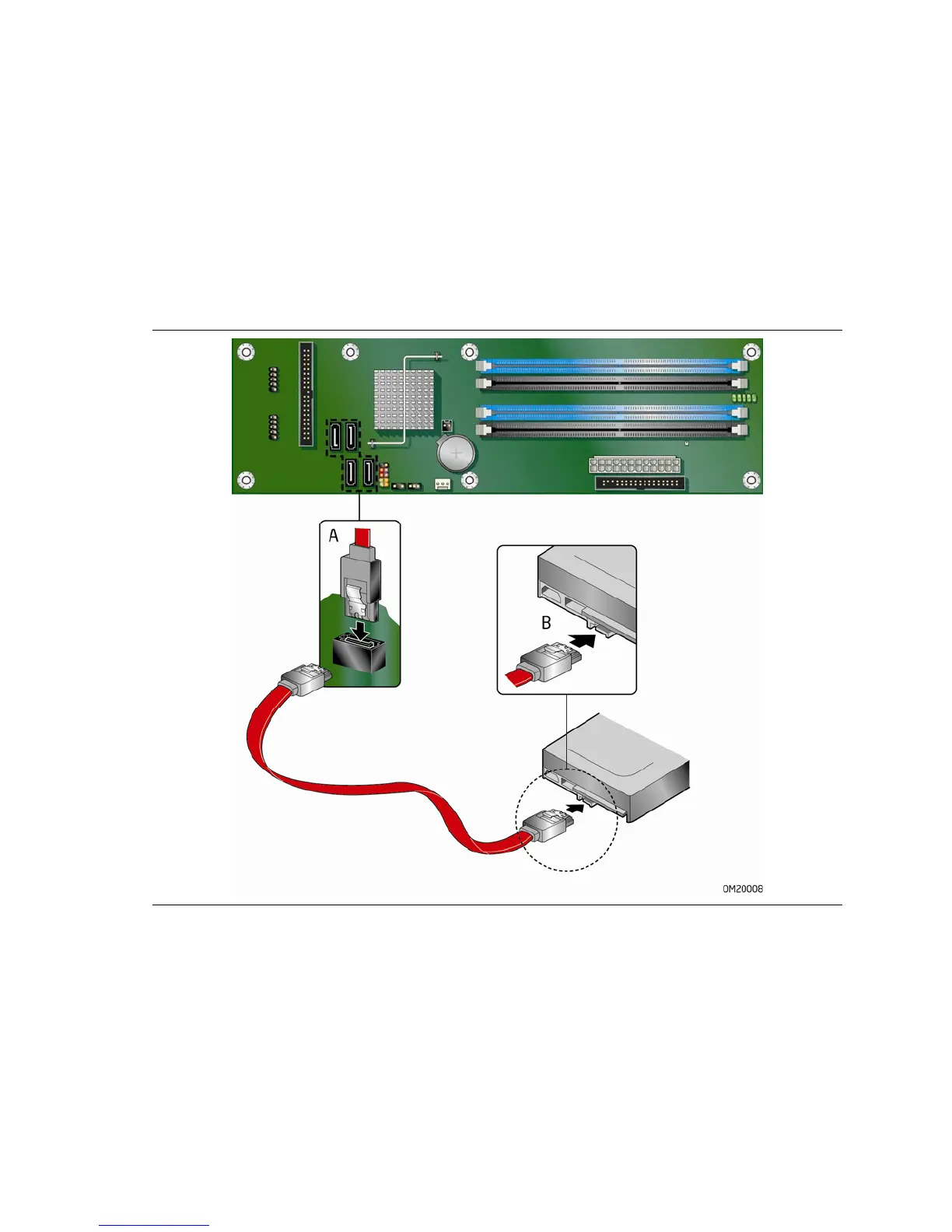

Figure 22. Connecting a Serial ATA Cable
