Intel Desktop Board DG43NB Product Guide
48
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to the 3-pin and 4-pin chassis fan headers on the Desktop
Board. Figure 22 shows the location of the cha
ssis fan headers.

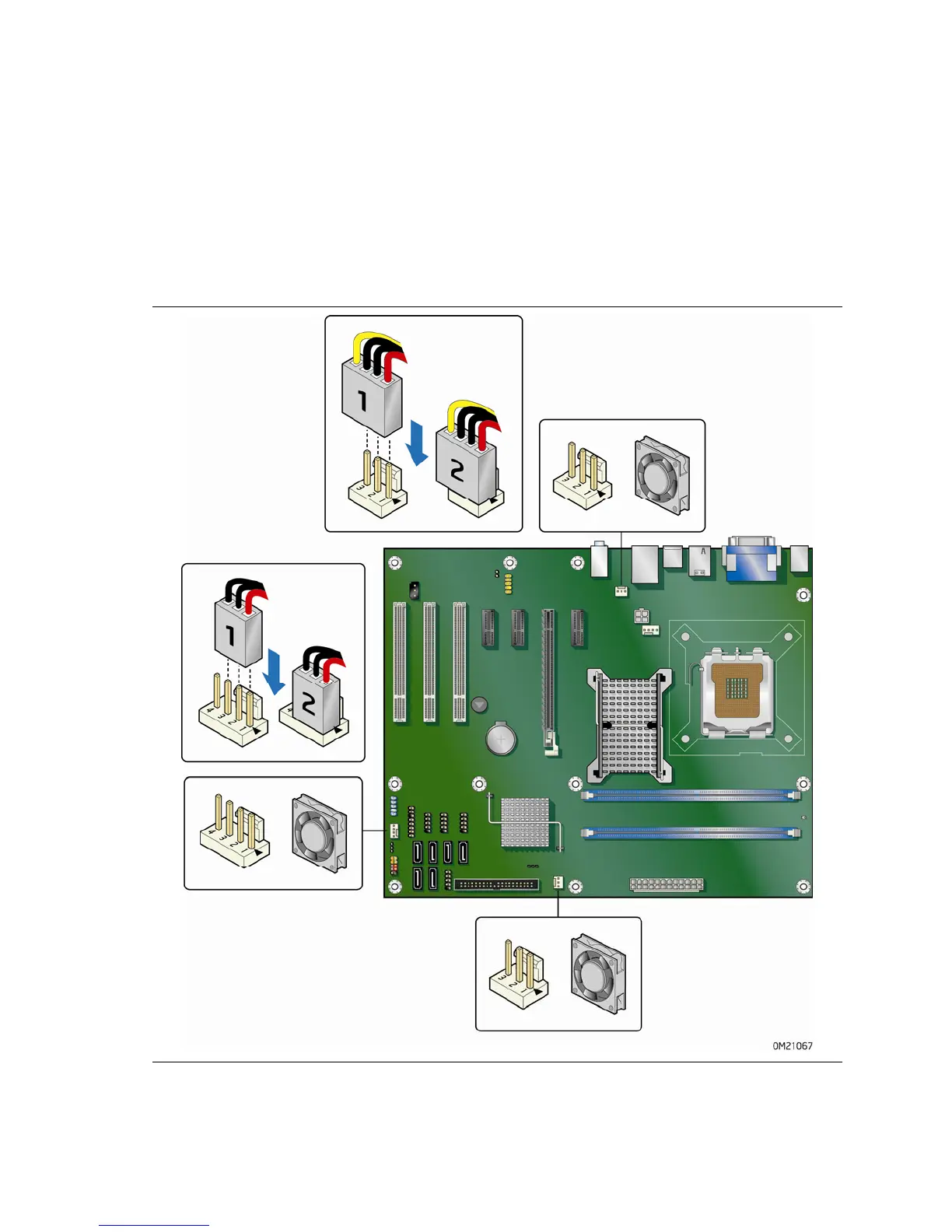

Figure 22. Location of the Chassis Fan Headers
