If additional memory is to be used, install another matched pair of DIMMs in DIMM 1
(black) in both channels A and B (see
Figure 14).

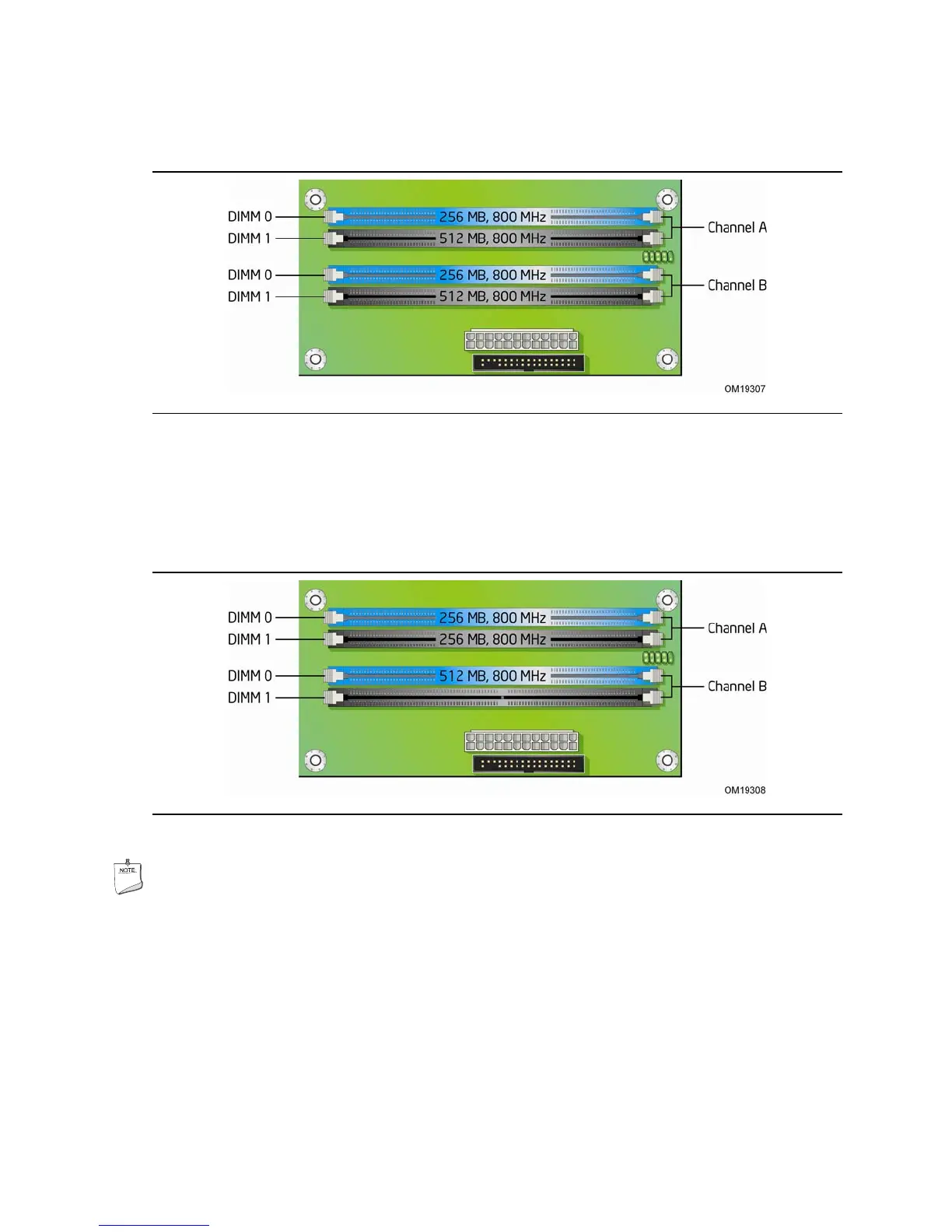

Figure 14. Dual Channel Memory Configuration Example 2
Three DIMMs
Install a matched pair of DIMMs equal in speed and size in DIMM 0 (blue) and DIMM 1
(black) of channel A. Install a DIMM equal in speed and total size of the DIMMs
installed in channel A in either DIMM 0 or DIMM 1 of channel B (see
Figure 15).
Figure 15. Dual Channel Memory Configuration Example 3
NOTE
All other memory configurations will result in single channel memory operation.
