Product Description
25
1.10.4 Thermal Monitoring

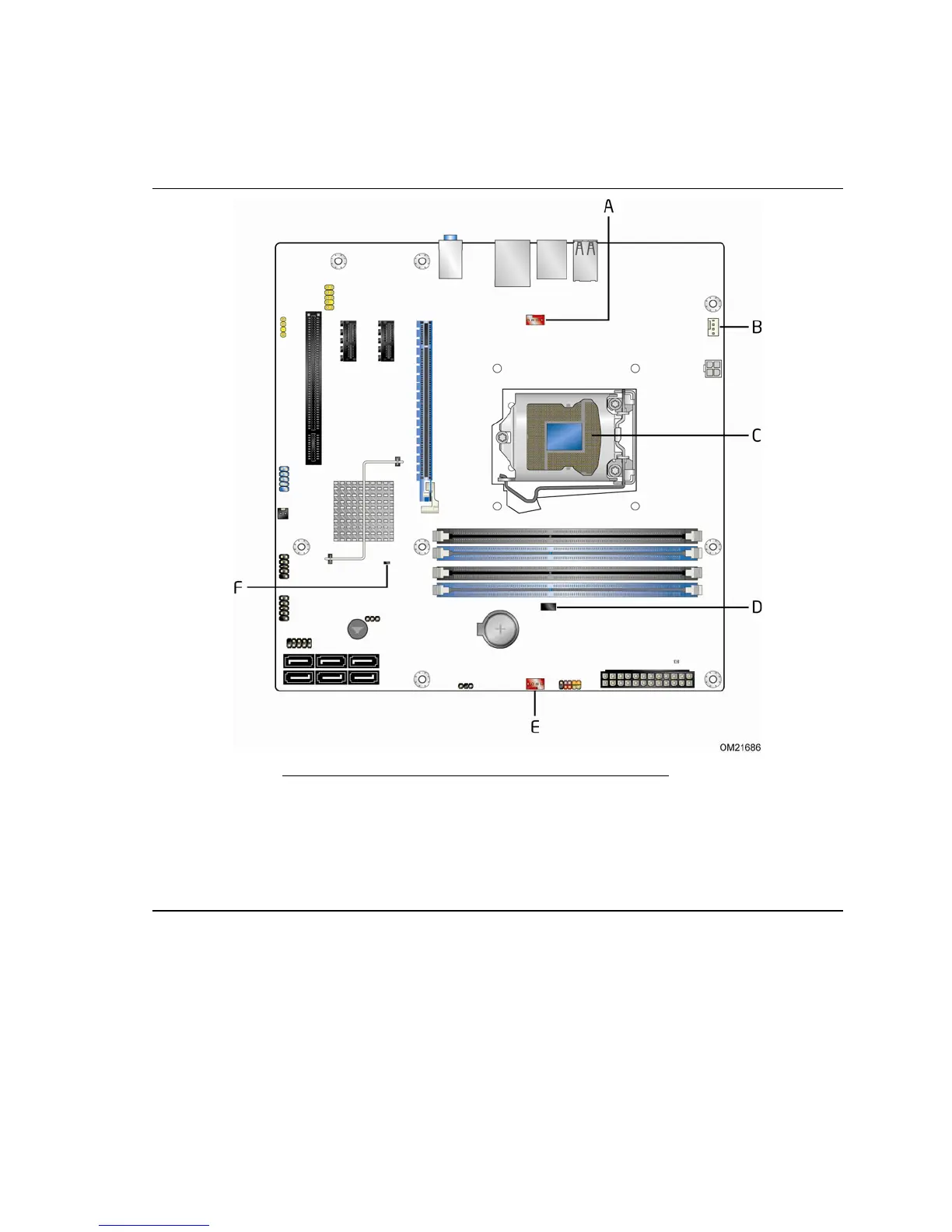

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Processor fan header
C Thermal diode, located on the processor die
D Hardware Monitoring ASIC
E Front chassis fan header
F Remote thermal diode
Figure 6. Thermal Sensors and Fan Headers

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel DP55WB - Media Series P55 micro-ATX Core i7 i5 LGA1156 Desktop Motherboard and is the answer not in the manual?

Intel DP55WB - Media Series P55 micro-ATX Core i7 i5 LGA1156 Desktop Motherboard Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1156
ChipsetIntel P55
Memory TypeDDR3
Maximum Memory16 GB
Storage Interfaces6 x SATA 3Gb/s
Max LAN Speed10/100/1000 Mbps
RAID SupportRAID 0, 1, 5, 10
Supported ProcessorsIntel Core i7 / Core i5
Memory Slots4
Memory StandardDDR3 1333/1066
Expansion Slots1 x PCI Express 2.0 x16, 2 x PCI Express x1, 1 x PCI
USB Ports12 x USB 2.0
AudioRealtek ALC888S
