Product Description
13
1.1.3 Block Diagram
Figure 2 is a block diagram of the major functional areas of the board.

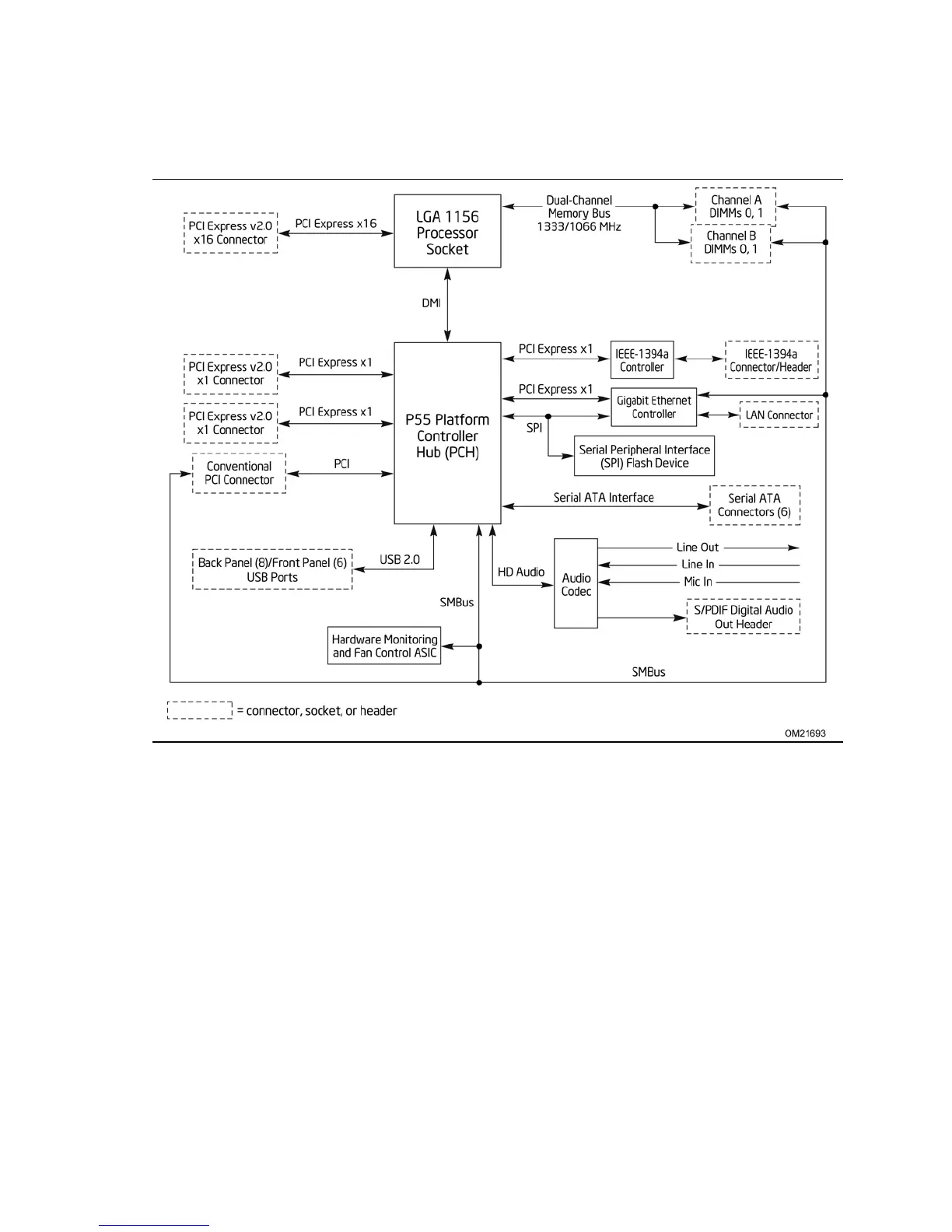

Figure 2. Block Diagram
1.2 Legacy Considerations
This board differs from other Intel Desktop Board products, with specific changes
including (but not limited to) the following:
• No parallel port connector
• No floppy drive connector
• No serial port connector or header
• No PS/2 connectors
• No PATA connector
