7
NUC11BTMi7, NUC11BTMi9
User Guide – August 2021
2.0 Open the Chassis

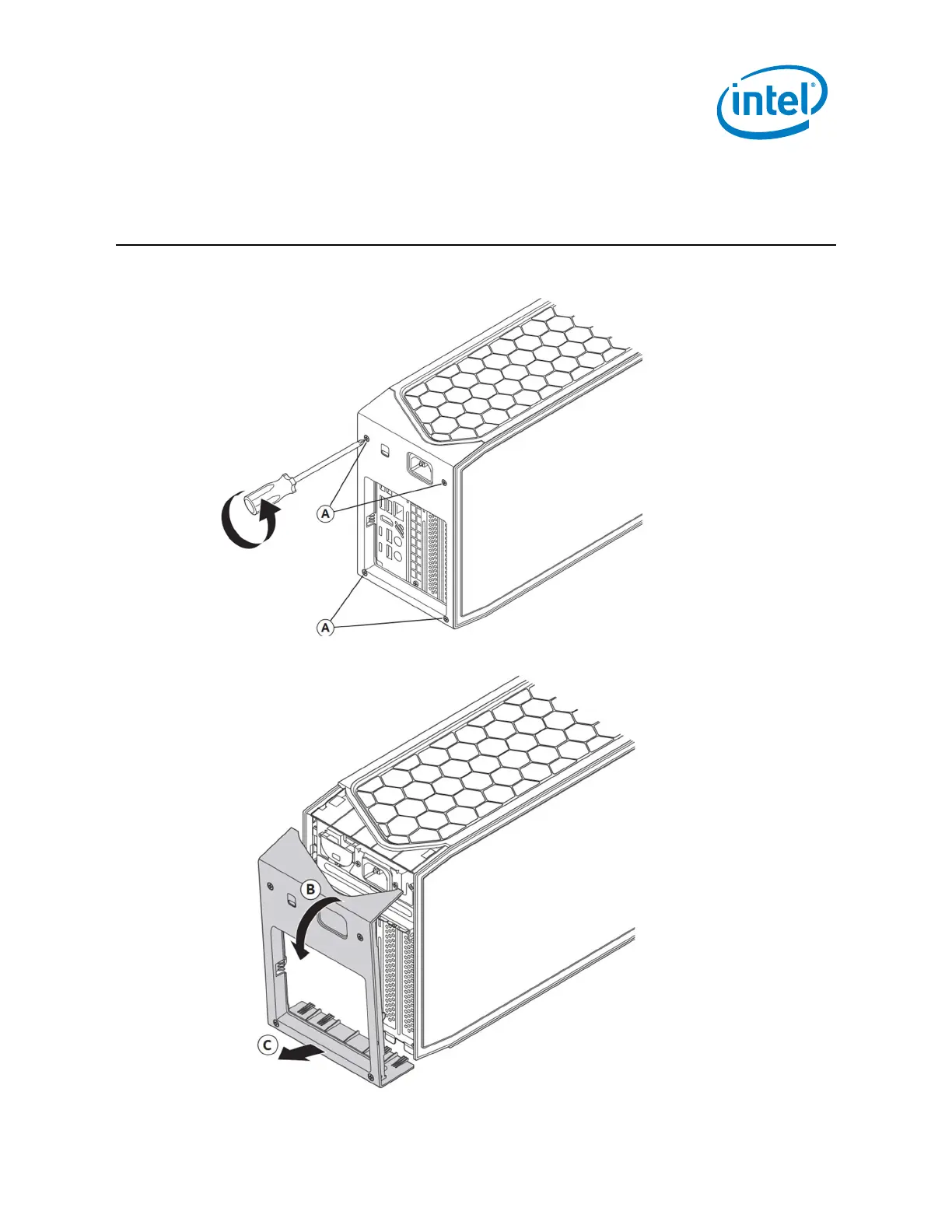

1. Unscrew the four screws on the rear side of the chassis and shift the cover:
2. Remove back panel:
