Intel NUC 13 Pro Kit - Install an M.2 SSD

10
NUC13ANH and NUC13LCH
User Guide – May 2023
4.0 Install an M.2 SSD
Intel® NUC 13 Pro Kit NUC13ANH contains
• one 80mm connector supporting NVMe and
• one 42mm connector supporting SATA SSD
Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:
• Intel® NUC 13 Pro Kit NUC13ANHv7
• Intel® NUC 13 Pro Kit NUC13ANHi7
• Intel® NUC 13 Pro Kit NUC13ANHv5
• Intel® NUC 13 Pro Kit NUC13ANHi5
• Intel® NUC 13 Pro Kit NUC13ANHi3
• Intel® NUC 13 Pro Kit NUC13L3Hv7
• Intel® NUC 13 Pro Kit NUC13L3Hi7
• Intel® NUC 13 Pro Kit NUC13L3Hv5
• Intel® NUC 13 Pro Kit NUC13L3Hi5
• Intel® NUC 13 Pro Kit NUC13L3Hi3

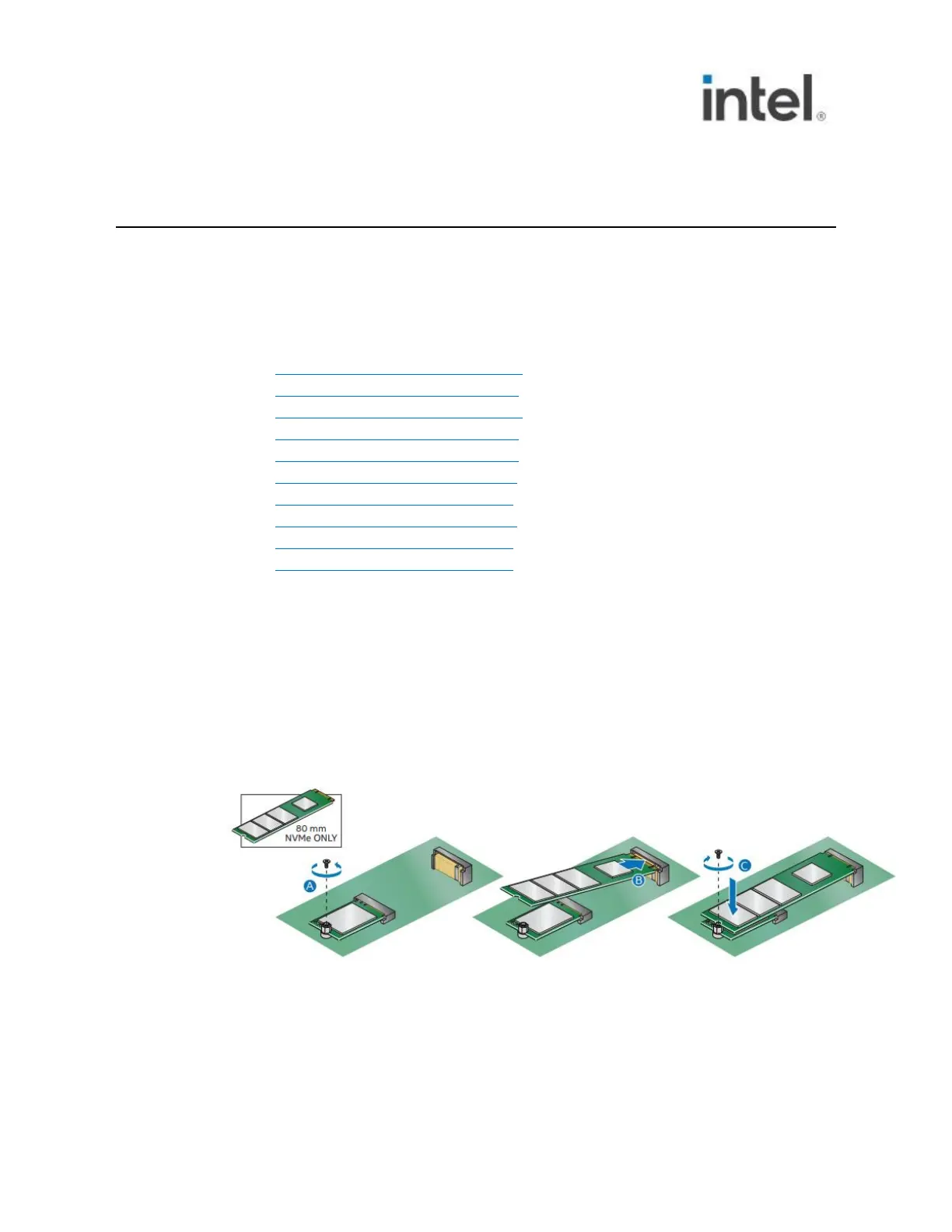

If you’re installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm metal standoff on the
motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the
connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).
