Intel NUC 9 User Manual

11
NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX
User Guide – May 2020

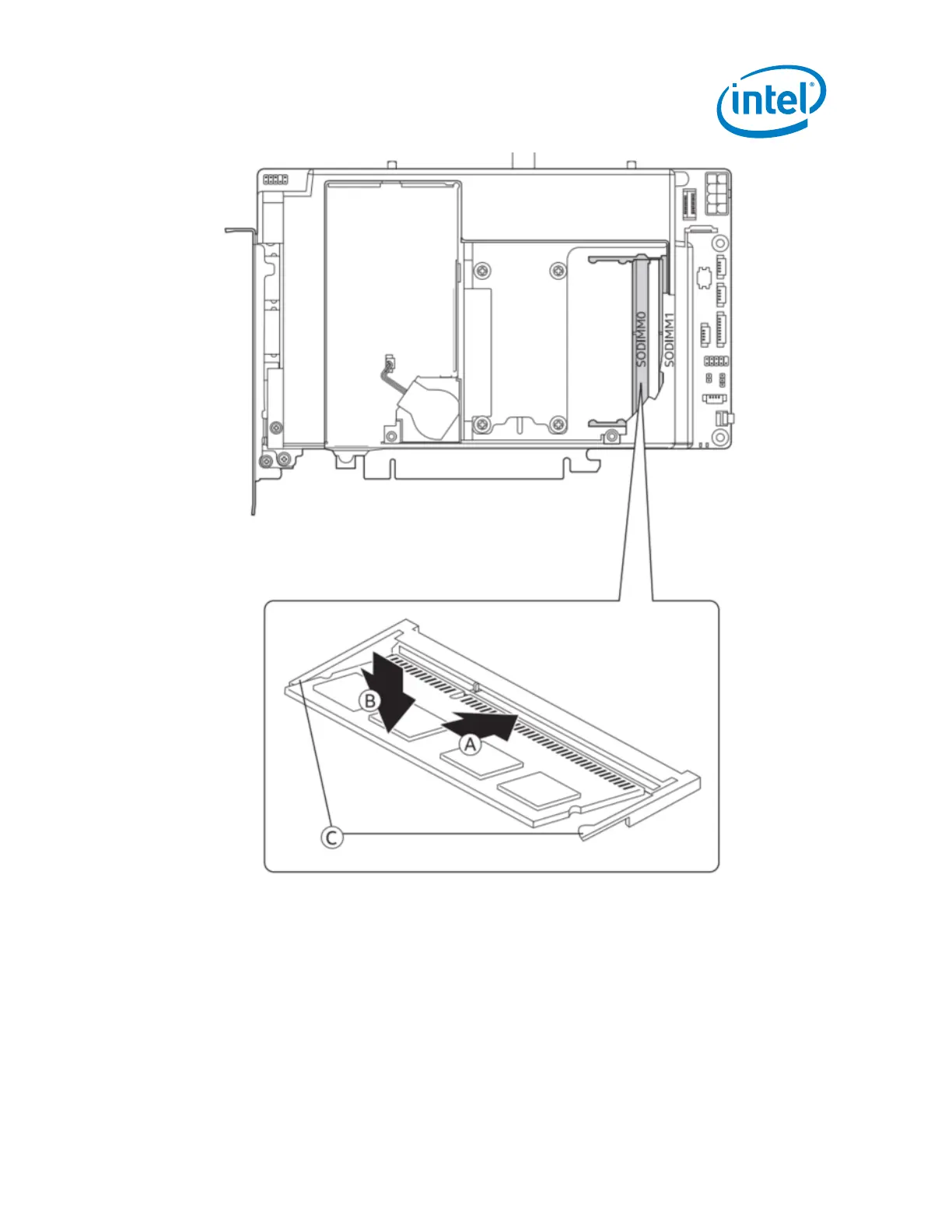

4. Align the small space at the bottom edge of the memory module with the
key in the socket.
5. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
6. When the module is inserted, push down on the outer edge of module
until the retaining clips snap into place (B). Make sure the clips are
firmly in place (C).

Intel NUC 9 Specifications

General

Operating System Support	Windows 10, Linux
Processor Options	Intel Core i5-9300H, Intel Core i7-9750H, Intel Core i9-9980HK
Memory	Up to 64GB DDR4-2666 SODIMM
Storage	One 2.5" drive bay
Networking	Intel Wi-Fi 6 AX200 + Bluetooth 5.0
Dimensions	238 x 216 x 96 mm
