Intel NUC12DCM User Manual

21
NUC12DCM / NUC12EDB
User Guide – February 2022

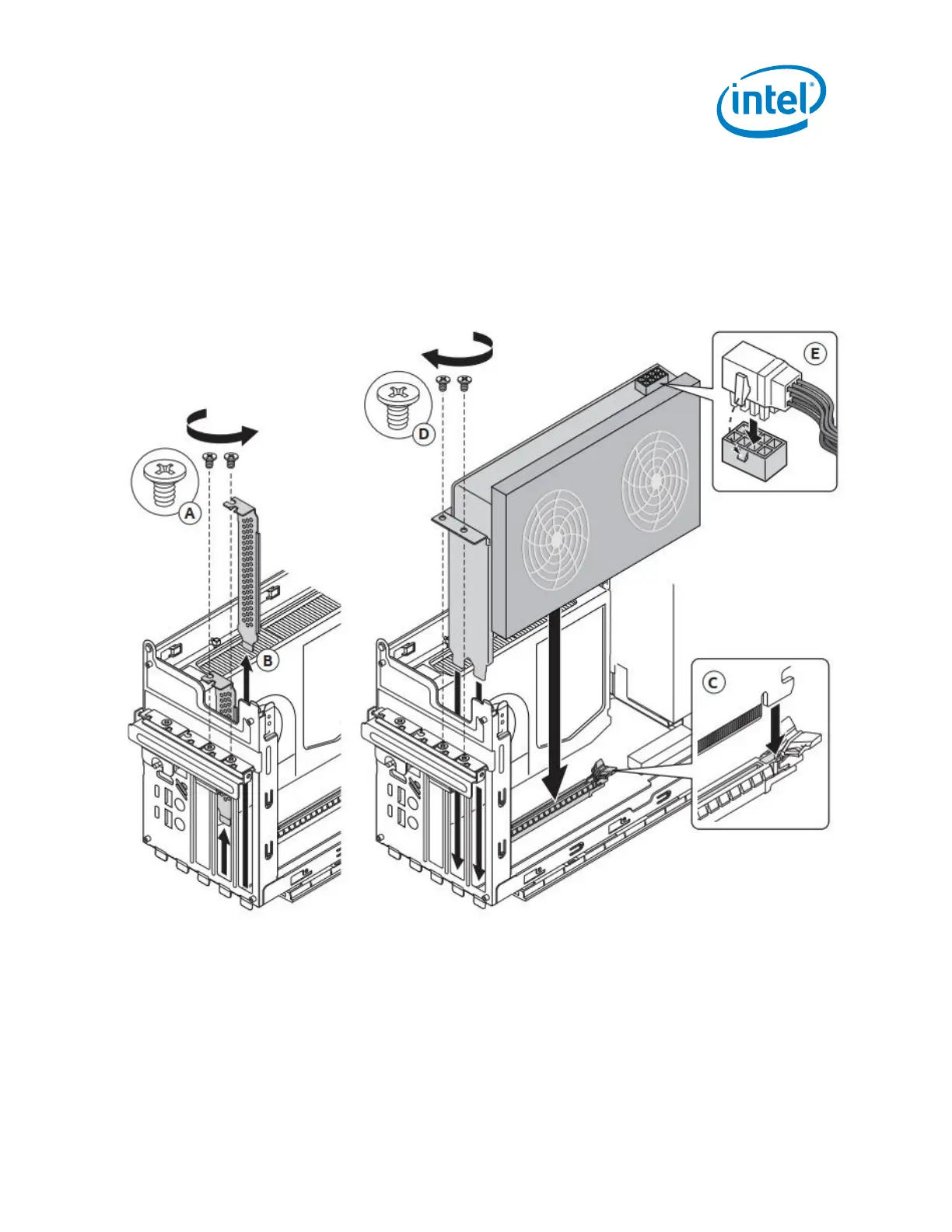

3. To install the external PCIe devices:
a) unscrew (A) and lift up (B) the metallic brackets covering the back panel frames for the
PCIe device connectors.
b) install the PCIe device to the x16 PCIe slot and push it down until you hear the click (C);
c) secure the metallic bracket with the small screw (D) and connect the power (E)
Note: to disconnect the discrete PCIe device – unscrew the metallic brackets (D), press down
the lever ( C) and lift up the PCIe device. Connect back the metallic brackets (B) covering the
back panel frames and secure them with the metallic screws (A).
