Intel NUC Kit NUC5CPYH & NUC5PPYH User Guide
7

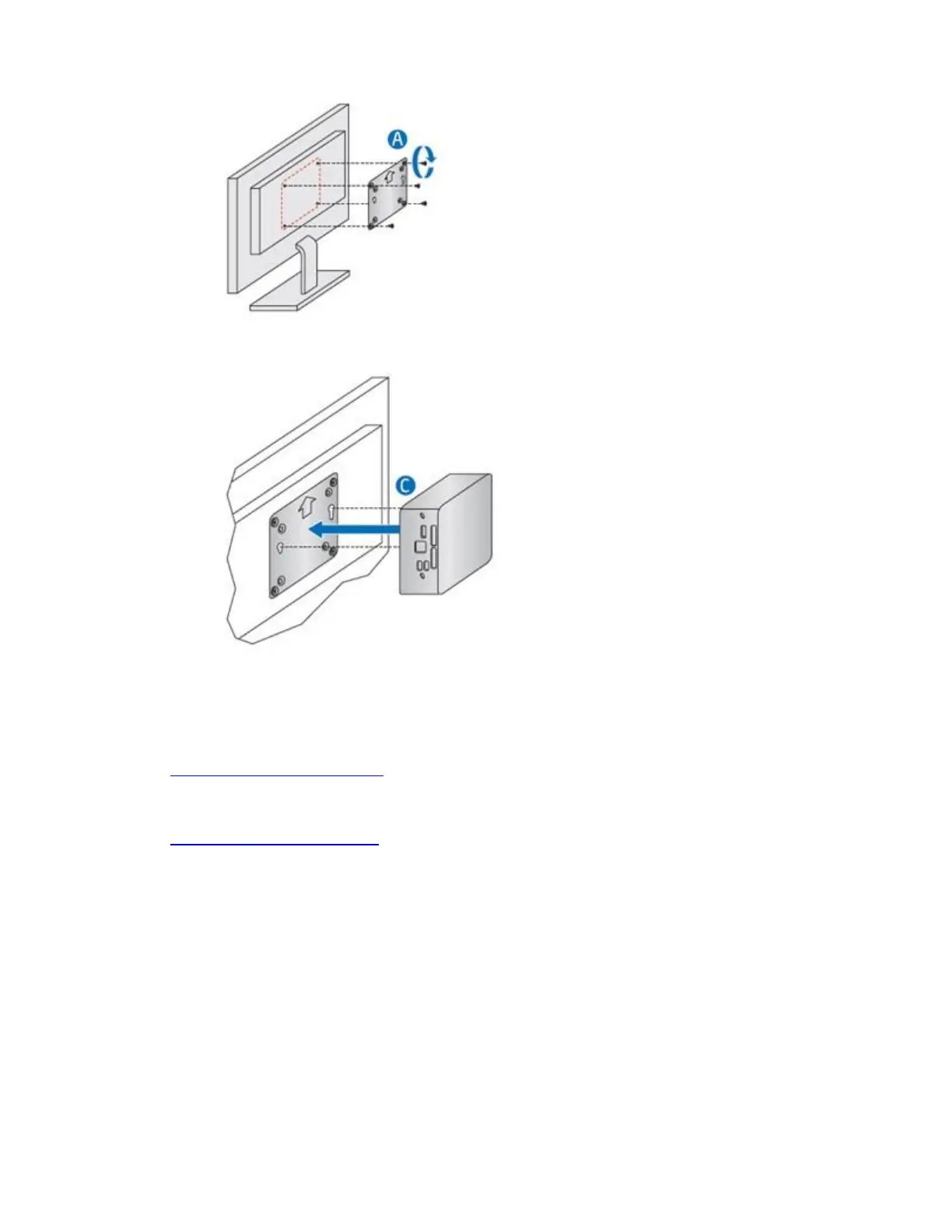

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.
3. Slide the Intel NUC onto the VESA mount bracket.
Install an Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well
as versions of Linux that have been reported as compatible by Intel NUC owners.
Refer to Operating System Installation for system requirements and installation steps.

Intel NUC5CPYH Specifications

General

L2 cache	2 MB
Processor cores	2
Processor model	N3050
Processor family	Intel® Celeron®
Processor series	Intel Celeron N3000 series
Built-in processor	Yes
Processor codename	Braswell
Processor frequency	1.6 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
CPU configuration (max)	1
Processor boost frequency	2.16 GHz
Thermal Design Power (TDP)	6 W
BIOS type	EEPROM
Processor socket	BGA 1170
Audio output channels	7.1 channels
Compatible memory cards	SDXC
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Memory voltage	1.35 V
Memory slots type	SO-DIMM
Supported memory types	DDR3L-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	1333, 1600 MHz
On-board graphics card model	Intel® HD Graphics
Intel® OS Guard	No
Bluetooth version	4.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Chassis type	UCFF
Cooling type	Active
Product type	Mini PC barebone
Product color	Black, Silver
LED indicators	HDD, Power, Reset
Cable lock slot type	Kensington
Power supply	65 W
Power supply type	External AC adapter
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Certification	RoHS Directive 2011/65/EU, WEEE Directive 2002/96/EC, China RoHS MII Order
PCI Express slots version	2.0
Processor ARK ID	87257
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	111 mm
Width	115 mm
Height	51.6 mm
