Intel NUC Kit NUC5i3MYHE & NUC5i5MYHE User Guide
3
This guide tells you how to:
• Install and remove memory
• Install a wireless card
• Install an M.2 SSD
• Install a 2.5” drive
• Install a VESA mount bracket
• Install an operating system
• Install the latest drivers
Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:

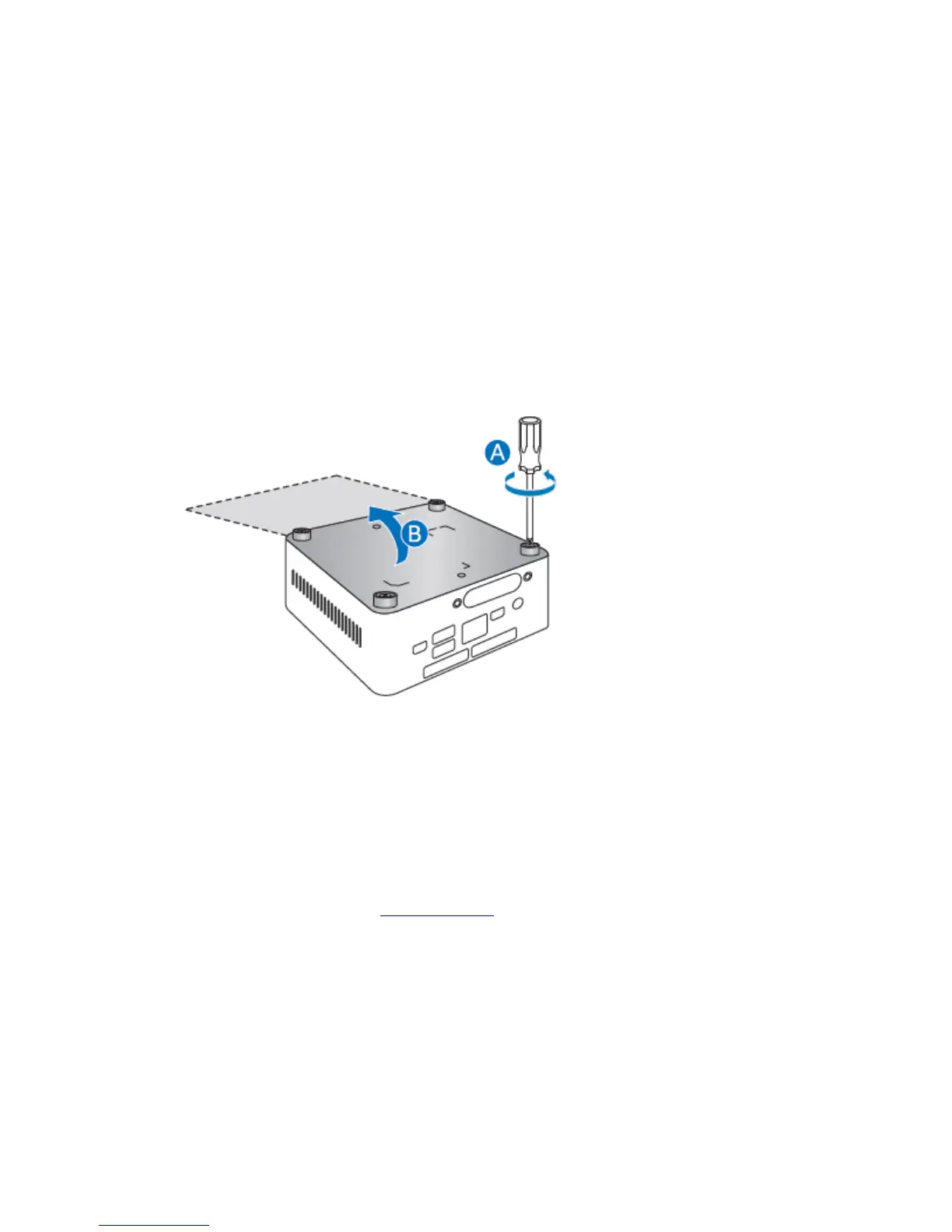

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
Installing and Removing Memory
Intel NUC Kits NUC5i3MYHE and NUC5i5MYHE have two 204-pin DDR3L SO-DIMM sockets. Memory
requirements:
 1.35V low voltage memory
 1333 MHz or 1600 MHz SO-DIMMs
 Non-ECC
For a list of tested memory, go to the System Memory page on the Support site:
Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
