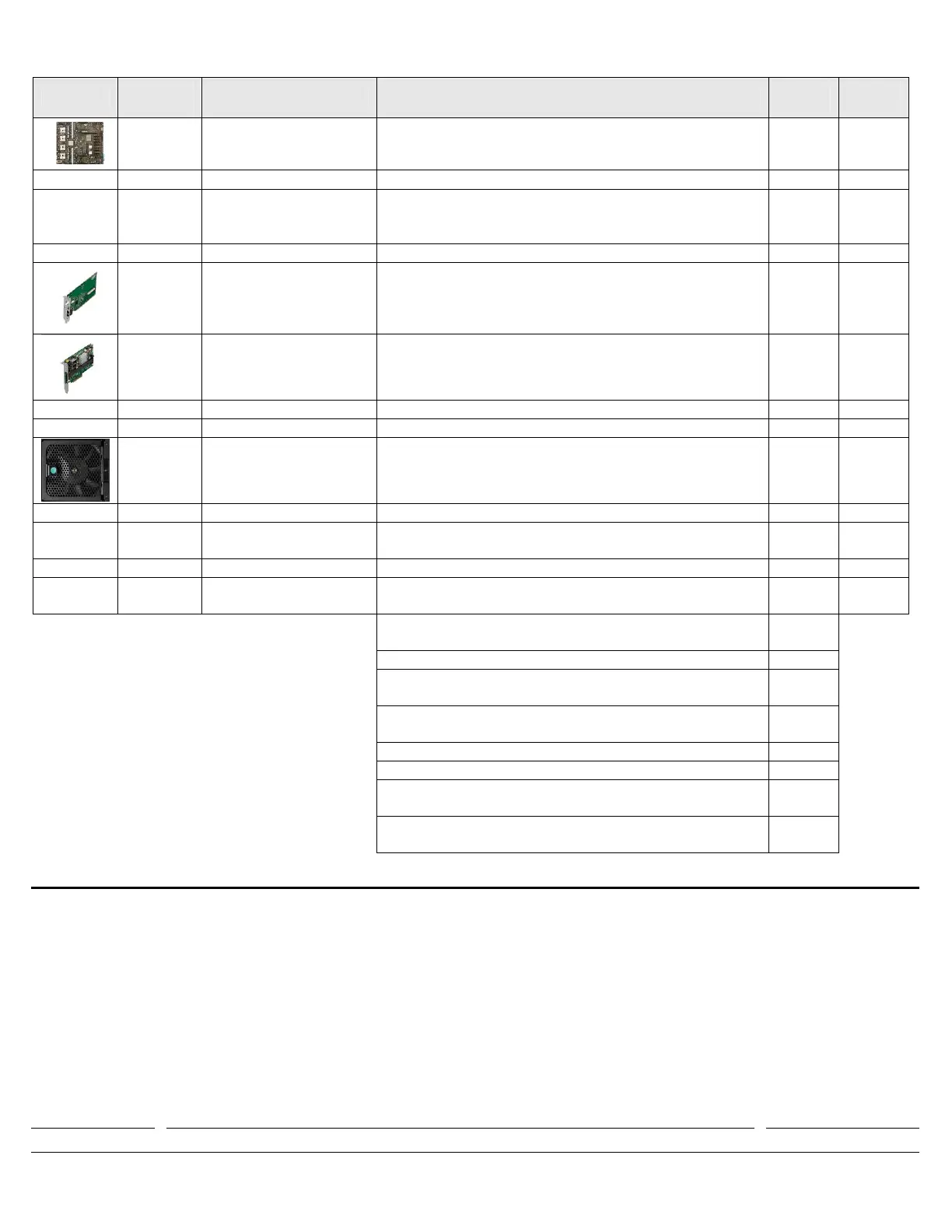

Intel S7000FC4UR Configuration Guide

Table 3: System Field Replaceable Units (FRUs) and Spare Part Codes
MM /
UPC
Product Code Description of Product
Qty
Per
Min
Order
899975 BFCBASE
Intel® Server Base board for S7000FC4UR
1 1
BRD 881385 FHW4UFRTPNL Control Panel IO Board for S7000FC4UR. 1 1
Spare 891614 FFC4UPLAS
Processor (Top/Bottom) Air Ducts, PCI Divider
assembly, PCI Card hold down latch assemblies (25
green, 25 blue) for S7000FC4UR.
1 1
Spare 891583 FFCINTRU Cable: Intrusion switch for S7000FC4UR. 1 1
891440 FFCIORISER
Dual channel NIC and RMM attach IO Riser for
S7000FC4UR.
1 1
898557 FFCSASRISER
SAS Controller Module with Integrated RAID for
S7000FC4UR.
1 1
Spare 885051 FHW4U2SASBP SAS 2.5” 4U backplane for S7000FC4UR. 1 1
Spare 876328 FHW4U3SASBP SAS 3.5” 4U backplane for S7000FC4UR. 1 1
881380 FHW4UFAN
Front System fan for the S7000FC4UR.
1 1
Spare 881390 FHW4UPDB Power distribution board for SR4850HW4. 1 1
Spare 891572 FFC4UINTSATA
Cable: Baseboard x4 SATA Port to SAS HDD
backplane. (7 pin)
1 1
Spare 870273 FHWSATAIDE SATA to IDE conversion board. 1 1
Spare 891600 FFCCABLEKIT
S7000FC4UR System Cables Bundle
(Includes all of the Cables Below)
1 1
FFC4UBBSATA
Cable: Baseboard x1 SATA Port to Optical Media
Drive. (7 pin)
1 1
FFC4UCP Cable: Front panel control to front panel I/O 1 1
FFC4UFPBPSAS
Cable: Front panel I/O to HDD Backplane for
S7000FC4UR. (34 pin)
1 1
FFC4UFPSATA
Cable: Front panel IO to Baseboard for S7000FC4UR.
(100 pin)
1 1
FFC4UFRTFANPWR Cable: Front Fan Power cable 1 1
FFC4UINTSAS Cable: Internal SAS Riser to 2.5" Backplane. 2 1
Cable: 5.25" Peripheral bay to SAS HDD Backplane
for S7000FC4UR. (4 pin power)
1
Cable: SES SAS Module Riser to SAS backplane LED
Fault cable (3 pin)
1
1/7/2009 S7000FC4UR Configuration Guide Page 11 of 12
