22
» Fastening by screws (not included) or double-sided tape (not included).
» DC Power Supply:1 CR2450 type 3 Vdc battery of long life lithium.
» Communication supervision and encrypted transmission.
» Range: up to 600 m with direct view in open eld.

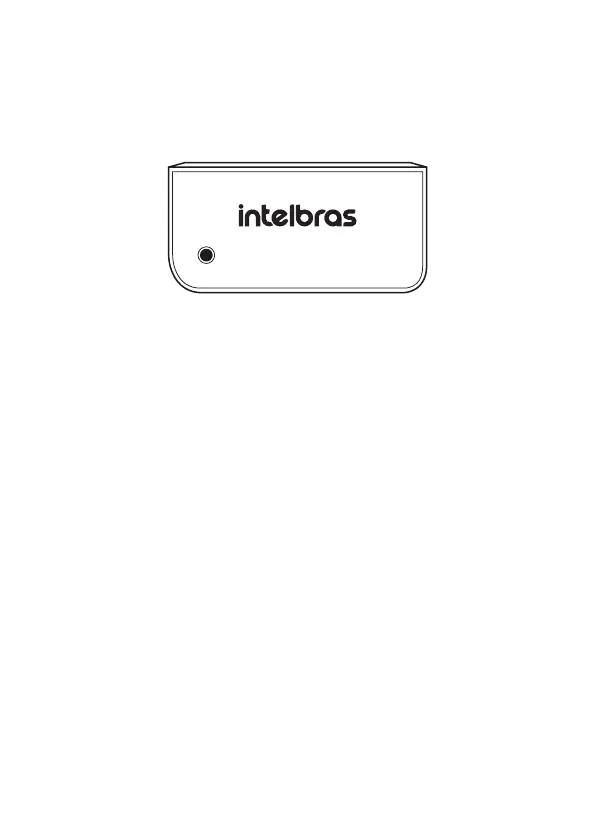

The following gure shows the illustrative image of the TX 8000 transmitter:
TX 8000 Wired Sensor Transmitter
TX 8000 transmitter has a tamper key against violation, and if this key is opened/
violated, registered sirens will trigger and send the corresponding event if the
Problems that generate trigger
function is enabled (see section
Problemas que
geram disparo
). The status of the sensor communication with the alarm center will
be represented on it through the indicator LED located on the front, and when
in normal communication the LED will ash green, with partial communication
orange and no communication red (the indicator LED after 15 minutes will enter
hibernation mode for battery saving, not hindering the device communication and
to activate again press the device synchronisation key once).
Attention: the sensors can be installed on different surfaces, always respecting
the best position and height for the sensor to read data correctly. Use double-
sided tape or screws (not included) to x the base and after attaching the device,
tting and checking that it was placed correctly so that there are no falls and
damage. Observe the maximum communication distance of the devices with the
alarm center.
