4.2. Battery

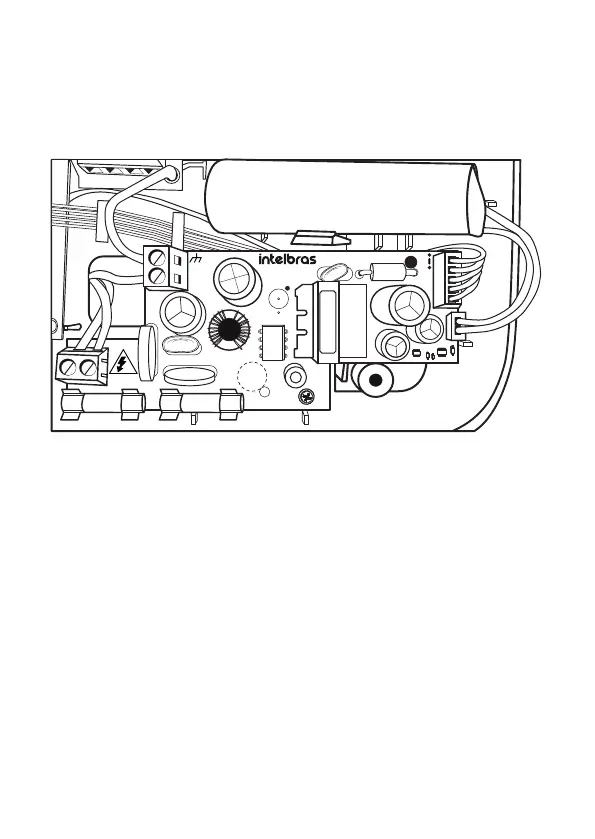

AMT 8000 alarm center has an internal rechargeable battery of 3.7 Vdc and a
capacity of 3,000 mA. The battery connector is located on the power supply board
and is used to connect the battery to the alarm system. To wire the battery to this
connector use the cable that comes with it, as shown below.
TERRA
TERRA
CN2
CL2
CN3
Q1 Q2
R3
R5
C7
JP1
CN3
TR1
D1
R4
UR1
CN1
TE
OK
U1
12
L3
L1
FONE
LINHA
108XXXX
XFT8000
4640511/0/8P
TRIGON 1721a
YEE19V-9P2.03MHA
Rechargeable battery for AMT 8000 alarm center
Alarm center has protection against reverse polarity and short circuit in the battery.
The unit also has protection to prevent the battery from being damaged in the
event of a mains failure.
If the voltage in the battery is below 2.8 V, the alarm center will switch off in order
not to damage the battery.
Battery life of 8 hours with Wi-Fi enabled and 16 hours with Wi-Fi disabled.
Attention: in case battery replacement is required, please contact our accredited
service network.
4.3. XAG 8000 GPRS Module
Check that the cable for connection to the alarm center is correctly connected,
passing under the board of the FXO 8000 telephone line module (if used), and
its installation should be done only with the unit off, to avoid damage to the
equipment and the installer.
