In the XAG 8000 module there are two slots to be allocated two chips (SIM card)
being superimposed on each other, with chip 1 being above chip 2. When installing
the chips, let the metal contacts of the same face down and insert until the end of
the slot for the correct allocation of chips.
2
1
CHIP
CHIP 1CHIP 2

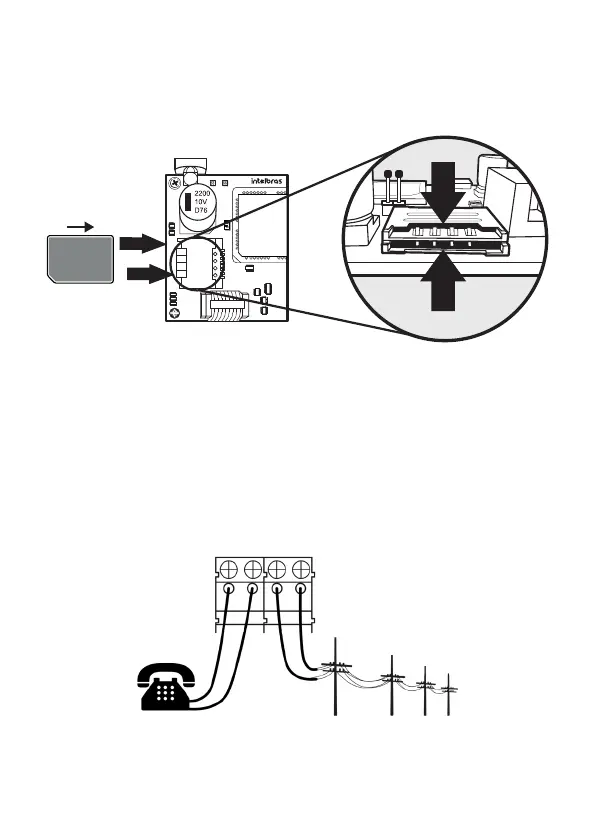

Chip allocation in XAG 8000 GPRS module
4.4. FXO 8000 Phone Module
Check that the cable for connection to the alarm center is correctly connected, and
that it is only installed with the unit off, to avoid damage to the equipment and
the installer.
In the FXO 8000 module there is the Line terminal, where the main telephone line
(two wires) must be wired, connecting the Phone output (two wires) in the other
telephone sets contained in this same line and as can be seen in the image below:
Line
Phone
Wiring diagram of telephone line in the FXO 8000 module
