Intellian t110W Installation And Operation User Guide

t110W/t130W/t110Q/t130Q – Marine Satellite Television System
24

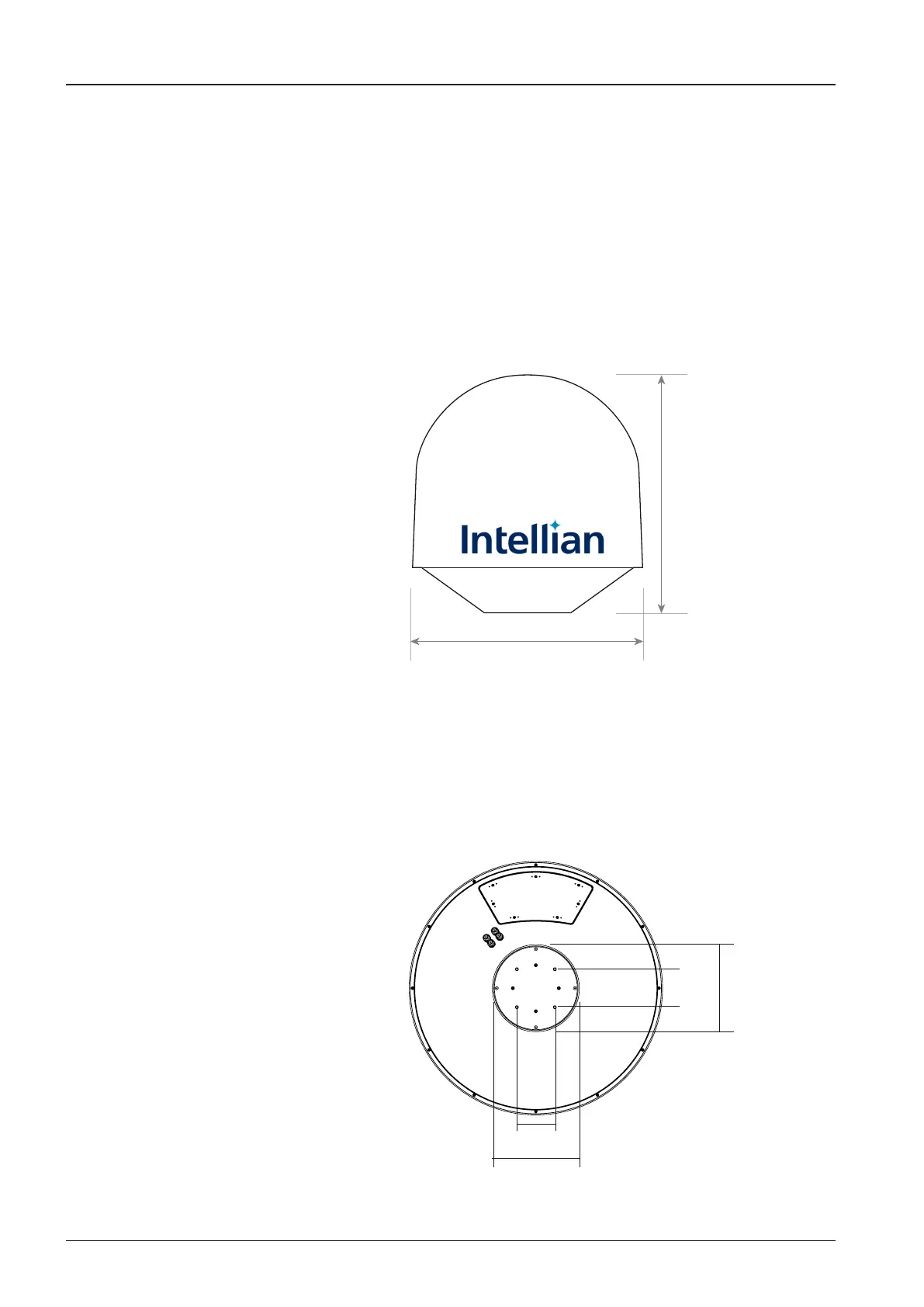

Antenna Dimensions
The method of installation and mounting of the antenna may vary with vessel
design but the following procedures are applicable in most situations, and will
result in a secure and effective installation. Conrm the height and diameter of the
antenna before installing it.
Antenna Mounting Hole Pattern
Use the supplied mounting template when drilling mounting holes on the mast.
The hole placement for the antenna must match the mounting hole pattern on the
template.
ø54cm (21.3")
ø54cm (21.3")
ø48cm (18.9")
ø48cm (18.9")
24.75cm (9.74")
24.75cm (9.74")
24.75cm (9.74")
24.75cm (9.74")
142 cm (55.9”)
ø133 cm (52.4”)
ø165.2 cm (65”)
168.9 cm (66.5”)
