25
INSTALLING THE ANTENNA
247.5 mm (9.74”)
247.5 mm (9.74”)
Drill hole
Ф15 mm (0.59”)
diameter in
4 positions
350 mm (13.77”)

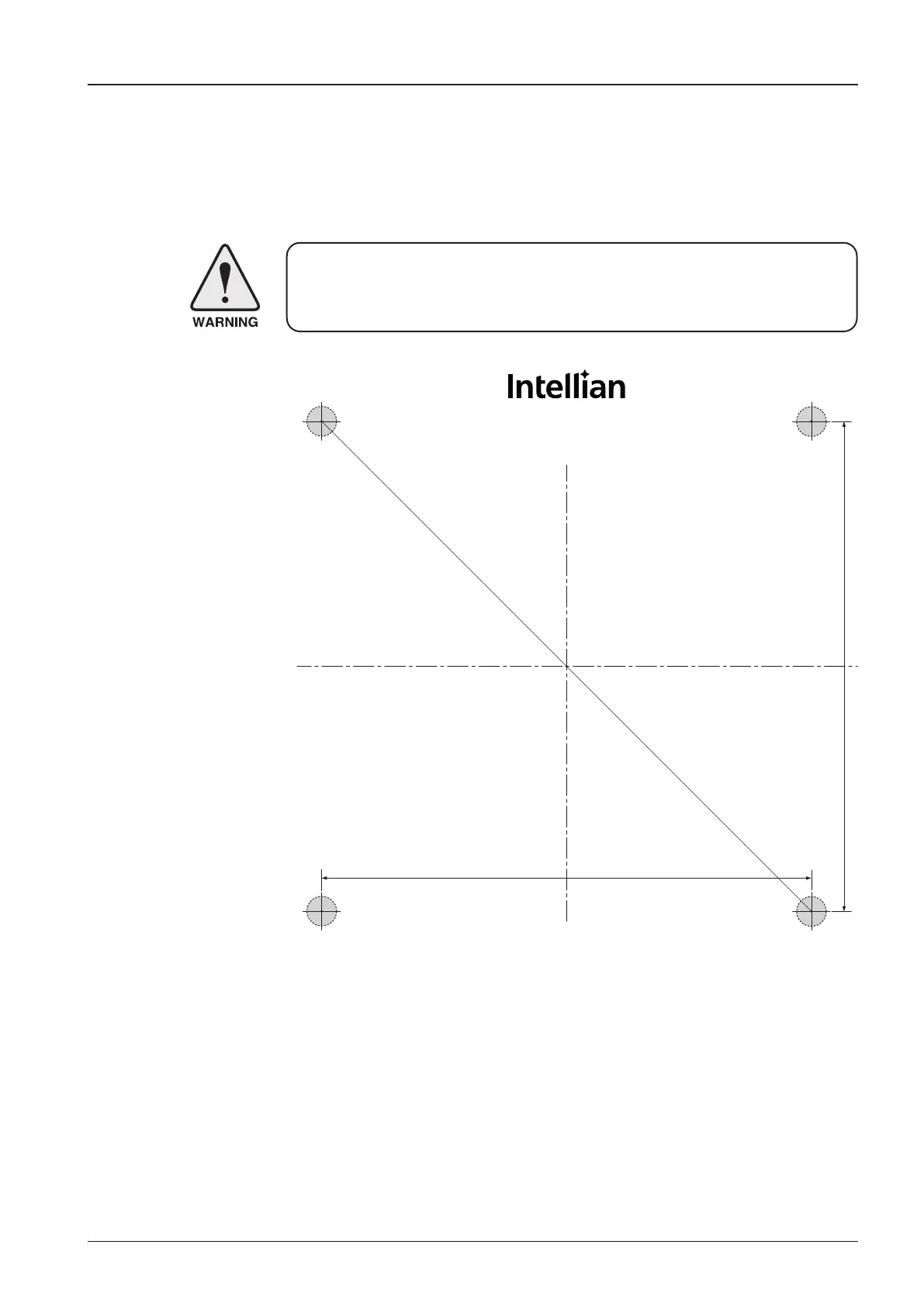

Antenna Mounting Hole Template
NOTE: This is a real-size template. Make sure the
hole placement for the antenna is the same with the
template even though the mast has a different shape,
and mount the antenna on a flat surface of the mast.
WARNING: When reusing an existing mast, check the condition of holes on the mast
and make sure those are proper to use compared to the hole locations and sizes printed
on the mounting template.
