6. Diagnostic / Modem

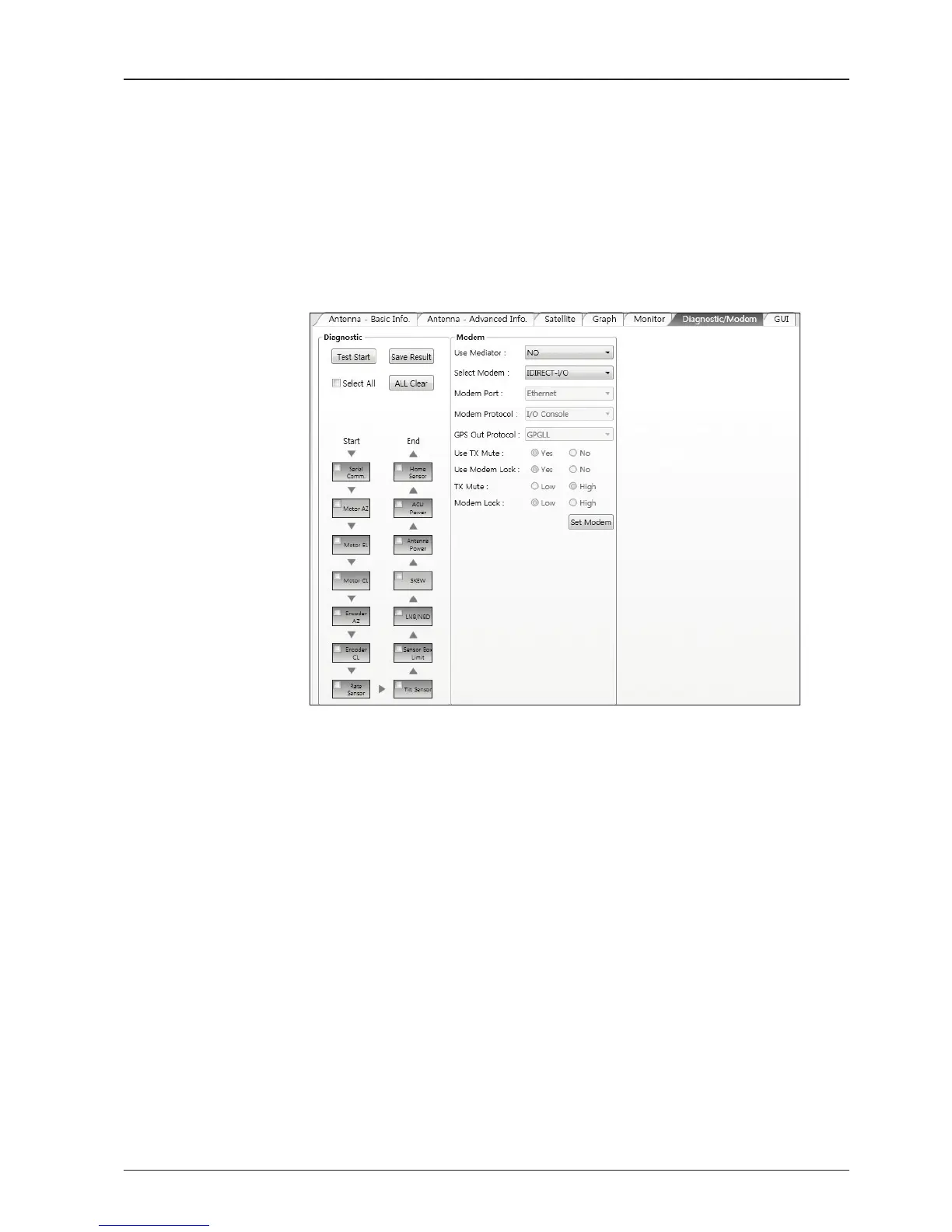

This view provides Antenna Diagnostic Testing and also provides functions to set
up the interface between the ACU and Intellian VSAT Mediator, Intellian Modem
Mediator or the satellite Modem.
- Diagnostic : select to run a full diagnostic test or single diagnostic test.
"Green" indicator is displayed for the test under progress. "Blue" indicates the
test result as Pass while "Red" indicates the result as Fail. "Yellow" indicates the
test has been skipped.
· Serial Comm.: tests the data communication between the antenna
and the ACU.
· Motor AZ: tests the azimuth motor.
· Motor EL: tests the elevation motor.
· Motor CL: tests the cross-level motor.
· Encoder AZ: tests the azimuth encoder.
· Encoder CL: tests the cross-level encoder.
· Rate sensor: tests the rate sensor.
· Tilt Sensor: tests the tilt sensor.
· Home sensor: tests the home sensor.
· ACU power: tests the ACU power to see whether or not it is
within the nominal operating range.
