INSTALLING THE ANTENNA
BOW
Hatch Direction

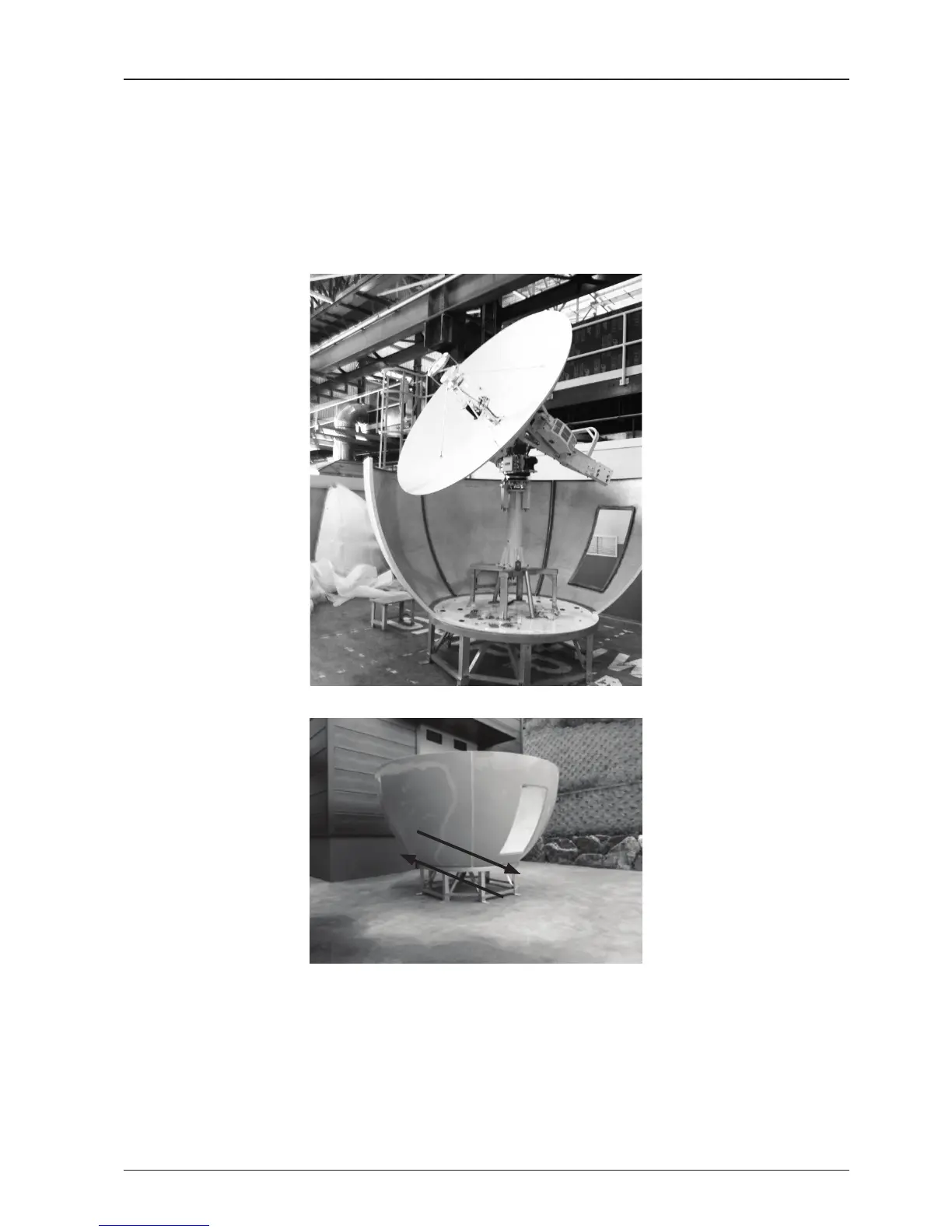

15. Assembly of Lower Radome
Make sure to tighten
all the joints before
proceeding to next step.
plus, make sure to clean
out the silicon mess to
give a smooth nish.
Direction of the hatch
should be the exactly
opposite of Bow direction.
B.
C.
Assemble 5 radome
panels as indicated in
previous section.
A.
