Intellitec Battery Disconnect BD0 User Manual

Name: Intellitec Battery Disconnect BD0
Brand: Intellitec
Rating: 5 (1 reviews)

23 pages

To Next Page

To Previous Page

TTERY DISCOECT

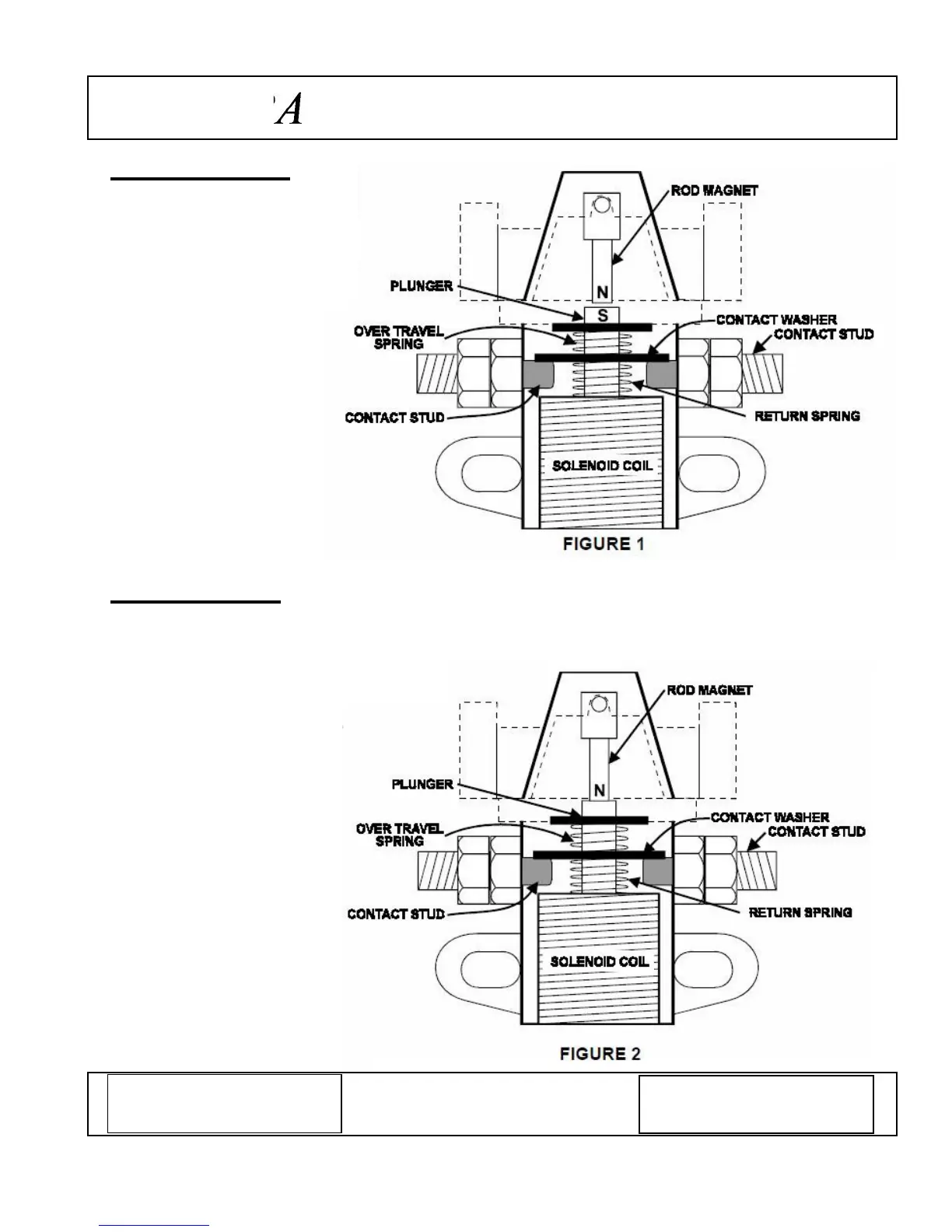

Relay Closing

Positive polarity applied

to coil. Current flowing

in coil. Plunger pulled in

to coil. Rod magnet

attracted to plunger by

opposite polarity.

Relay Closed

Power removed from coil. Magnet

blocks plunger from coming up,

maintaining contact.

INTELLITEC

PDX RV LLC
