Intellitec Battery Disconnect BD0 User Manual

B
TTERY DISCOECT
To open the relay, +12 volts is applied to the “S” terminal and ground on the “I” terminal. When
this is done, the plunger is again pulled into the coil. However, since the magnetic polarity of the
coil is reversed, the rod magnet is repelled (like poles oppose), and swings out of the way. See
FIGURE 3
When the voltage is removed from the coil, the plunger gets pushed upwards by the return
spring, breaking the connection between the two large terminals. See FIGURE 4.
INTELLITEC
4
PDX RV LLC

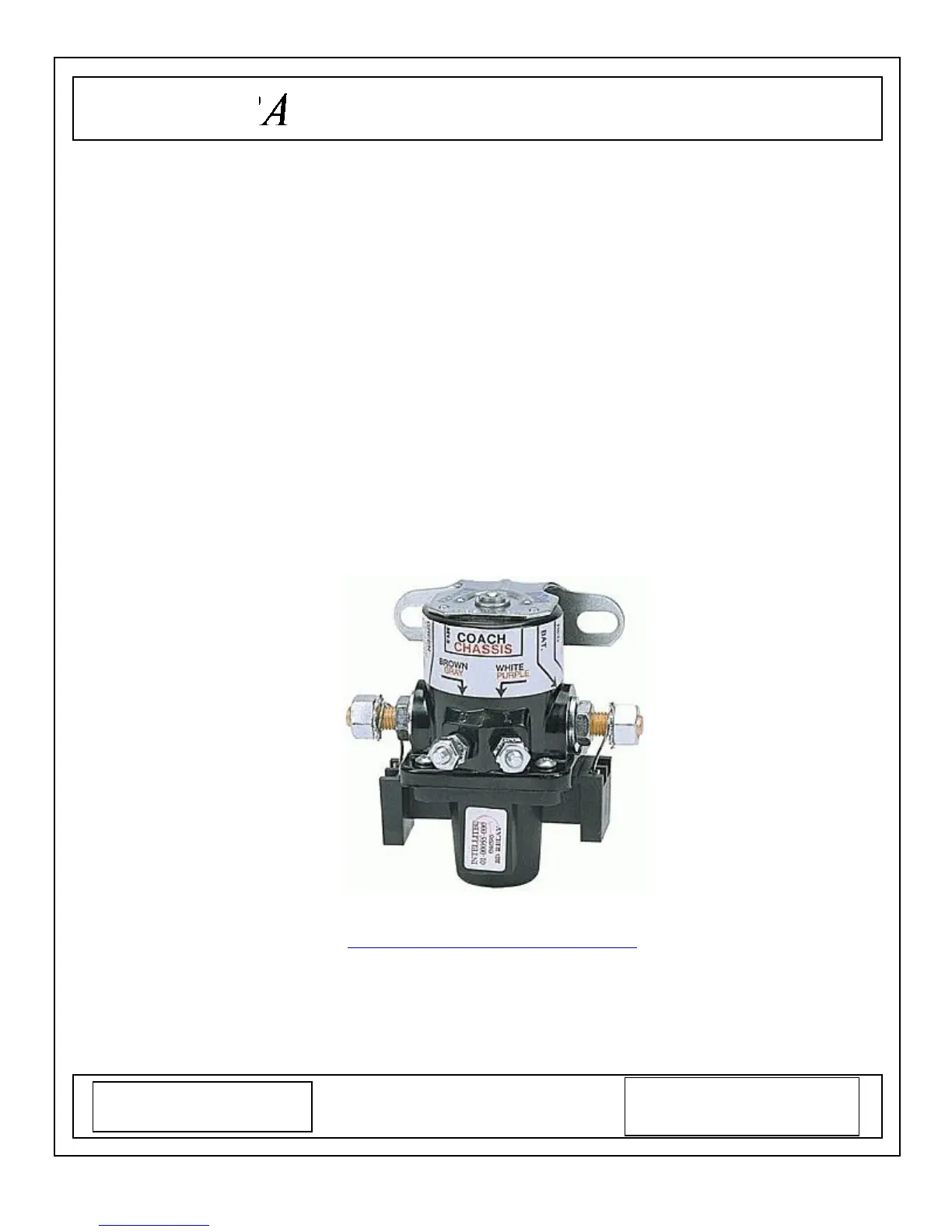

Intellitec Battery Disconnect Relay with Fuses, 01
-
00055
-
000
http://www.pdxrv.com/catalog/i1361.html
