TTERY DISCOECT

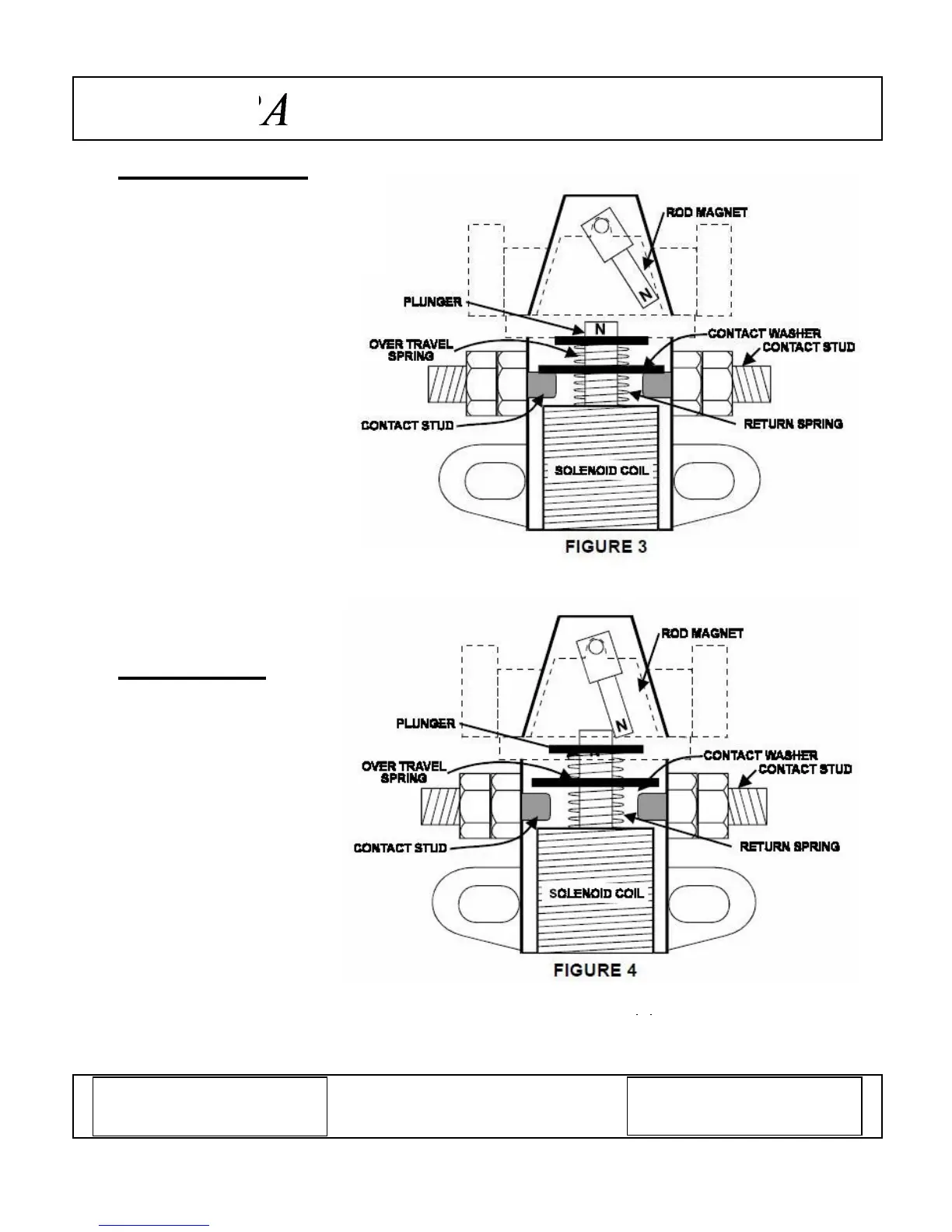

Relay Opening

Negative polarity applied

to coil. Current flowing

in coil. Plunger pulled in.

Rod magnet opposed by

plunger same polarity

magnetic field, swings

out to side of housing.

Relay Open

Power removed. No

current flowing in coil.

Plunger pushed up by

return spring while

magnet is off to the

side. Contacts open.

Magnet comes to rest

at side of plunger.
