FG101 User’s Guide
4
FG101 Front Panel
The front panel of this FG101 will be described here which cover all front panel
definitions of other models.

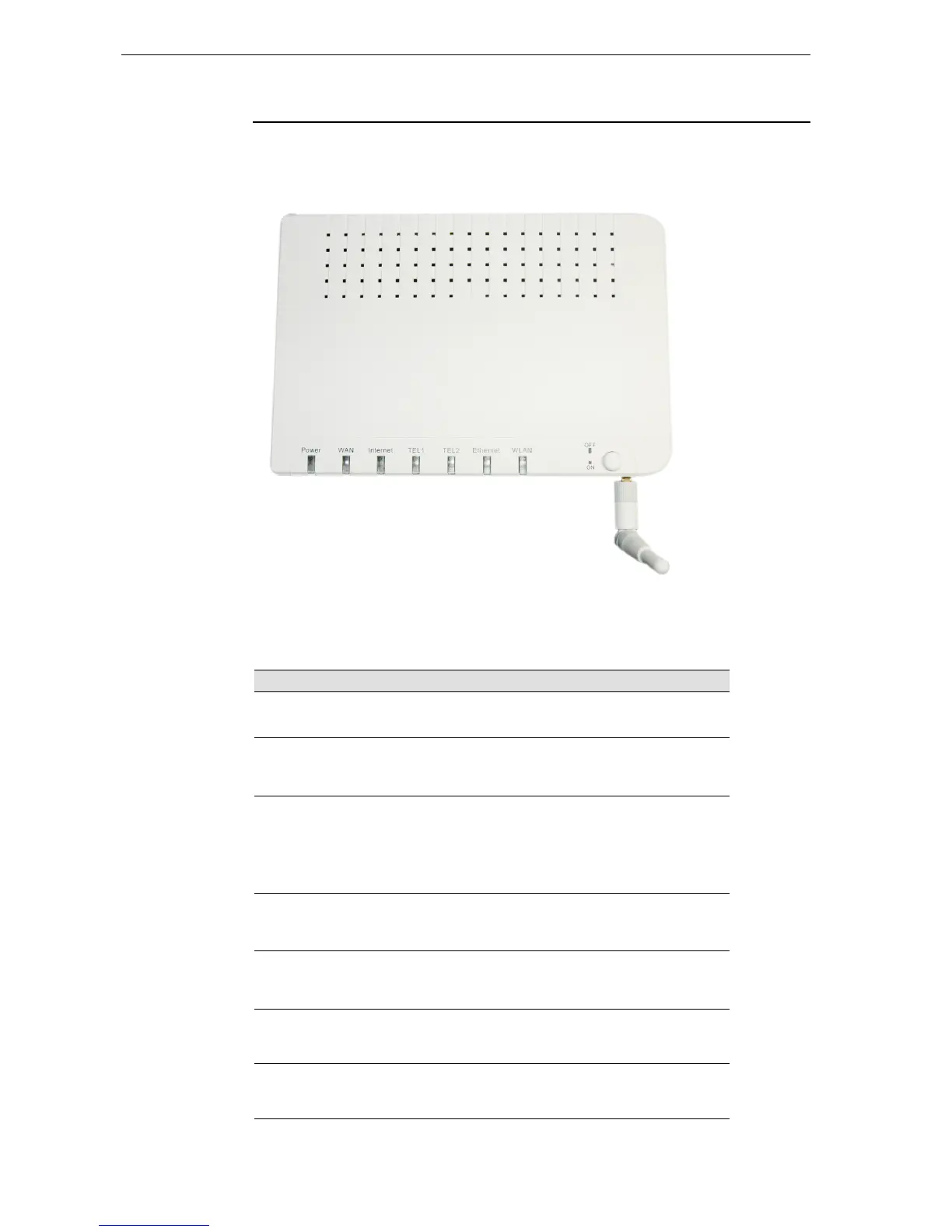

Figure 2: FG101 Front Panel and LEDs
Connector and LED definitions from left to right:
Label
Color
Function
Power
Green
or Red
GREEN off: No power
GREEN on: Power on
RED on: Self-test fails
WAN
Green
On: Physical layer sync up successfully.
Off: No connection or no signal
Blink: Physical sync up progress
Internet
Green
or Red
GREEN off: No connection to Internet
GREEN on: The device gets an IP address
successfully in router mode
GREEM blinking: Data being transmitted.
RED on: The device is set as a BRIDGE or can not get
an IP address in ROUTER mode.
TEL1
Green
On: make or receive a phone call
Off: disconnect the phone call
Blink: incoming call (ringing)
TEL2
Green
On: make or receive a phone call
Off: disconnect the phone call
Blink: incoming call (ringing)
Ethernet
Green
On: LAN link established and active
Off: No LAN link
Blink: Data being transmitted
WLAN
Green
On: WLAN service is enabled
Off: WLAN service is disabled
Blink: Data being transmitted
