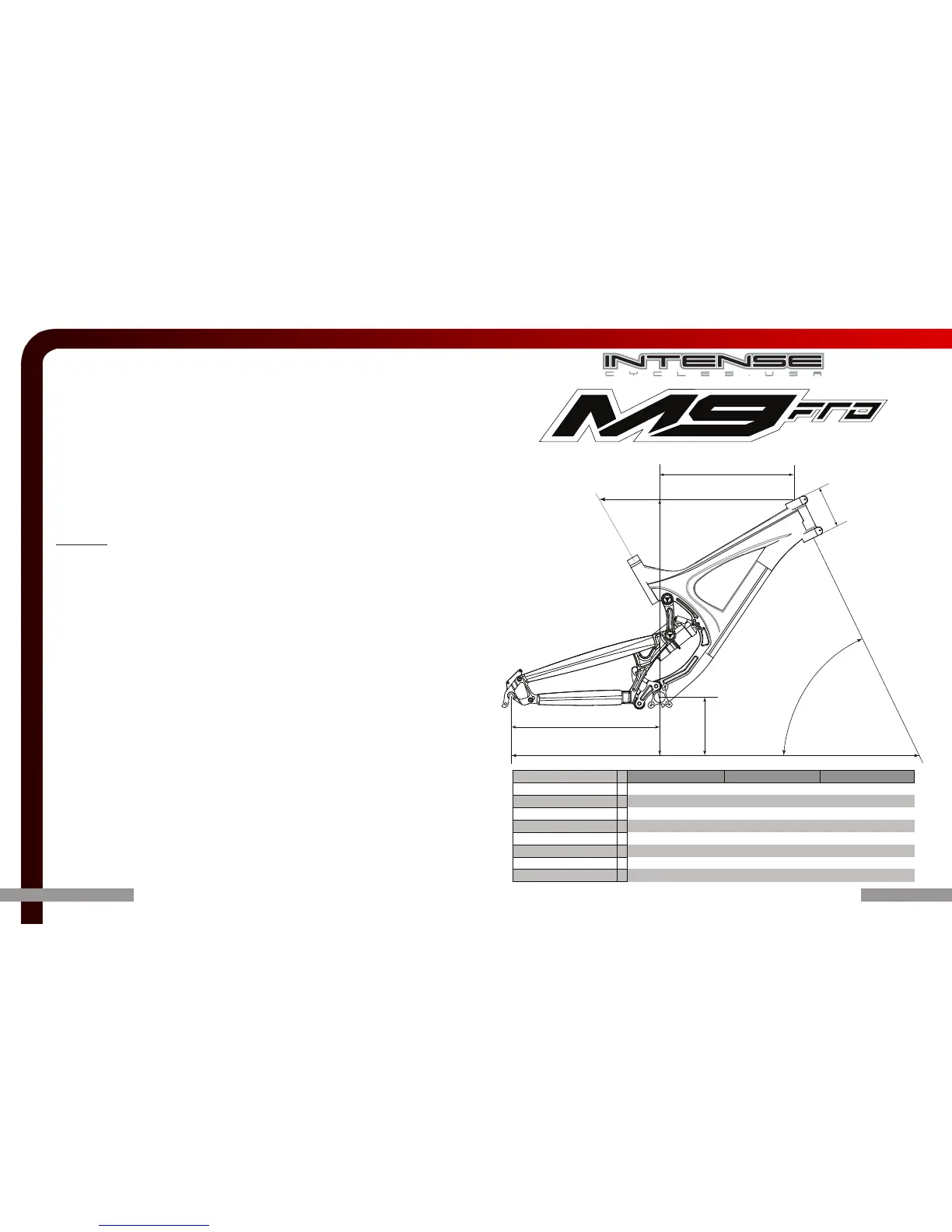

Intense Cycles M9 PRO - Geometry and Setup; M9 Geometry Overview

A
C
G
B
F
D
E
H
M9-FRO
SMALL MEDIUM LARGE
wheel base
A
45.5"-46.5" 46.5"-47.5" 47.5"-48.5"
toptube
B
22" 23" 24"
chainstay
C
17.25"/17.5"/17.75" 17.25"/17.5"/17.75" 17.25"/17.5"/17.75"
head tube
D
4.5" w/ Upper Pinch Bolt 5" w/ Upper Pinch Bolt 5" w/ Upper Pinch Bolt
head angle
E
64° (+/-.5/1.0/1.5) 64° (+/-.5/1.0/1.5) 64° (+/-.5/1.0/1.5)
reach
F
15.5" 16.25" 17.25"
stack
G
23" 23.5" 23.5"
BB height
H
14.2"-14.5" w/ ISCG 05 14.2"-14.5" w/ ISCG 05 14.2"-14.5" w/ ISCG 05
M9 Geo
The M9 is the most adjustable bike on the market today. We have designed the
bike around what our riders, pro racers and engineers feel are the optimal
settings with everything set at a baseline. That being said, with dierent tires
and forks your geometry will vary. We have come up with these starting point
geometries based on a 2.35 Maxxis tire and Fox 40 forks with an axle to crown of
575mm
