Page 5
Indoor Unit Parts And Major Functions
2

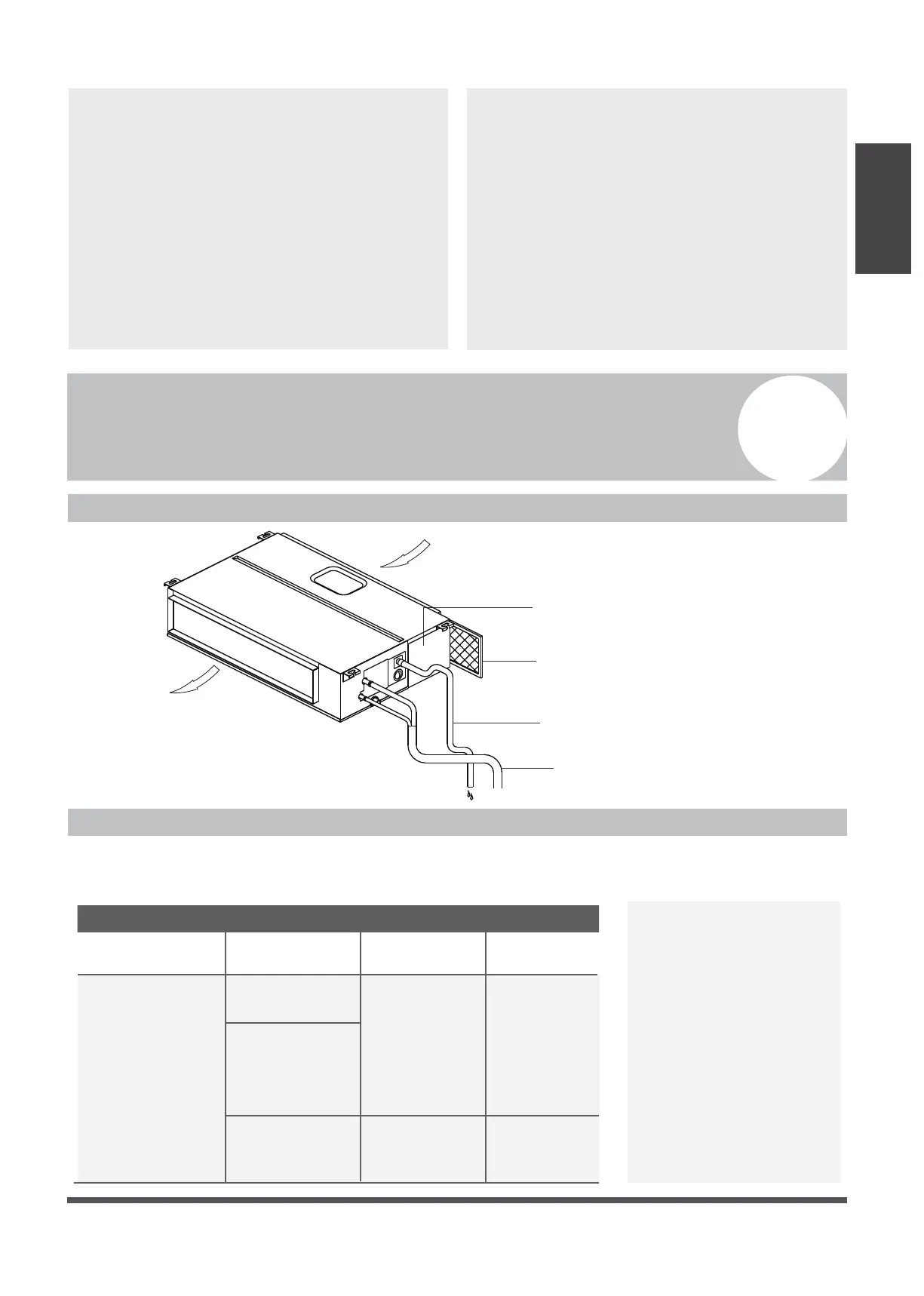

Unit Parts
Fig. 2.1
Operating Conditions
Use the system under the following temperatures for safe and effective operation. If the air
conditioner is used under different conditions, it may malfunction or become less efficient.
Indoor Unit
Parts And Major
Functions
Air outlet
Air inlet
Air filter(on some models)
Drain hose
Electric control cabinet
Refrigerant connecting pipe
•
An all-pole disconnection device which has at
least 3mm separation distance in all pole and
a residual current device (RCD) with the rating
of above 10mA shall be incorporated in the
fixed wiring according to the national rule.
•
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
•
The appliance shall be installed in accordance
with national wiring regulations.
•
The indoor unit must be installed 2,5m above
floor.
•
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
•
Children should be supervised to ensure that
they do not play with the appliance.
COOL mode HEAT mode DRY mode
Room Temperature
17°C - 32°C
(62°F - 90°F)
0°C - 30°C
(32°F - 86°F)
17°C - 32°C
(62°F - 90°F)
Outdoor
Temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 24°C
(5°F - 76°F)
0°C - 50°C
(32°F - 122°F)
18°C - 54°C
(For special
tropical models)
0°C - 60°C
(For special
tropical models)
-15°C - 50°C
(5°F - 122°F)
(For models with
low temp. cooling
systems.)
FOR OUTDOOR UNITS
WITH AUXILIARY
ELECTRIC HEATER
When outside
temperature is below 0°C
(32°F ), we strongly
recommend keeping the
unit plugged in at all
time to ensure smooth
ongoing performance.
-7°C - 24°C
