intensity MDV-D28Q4/N1-D User Manual

9

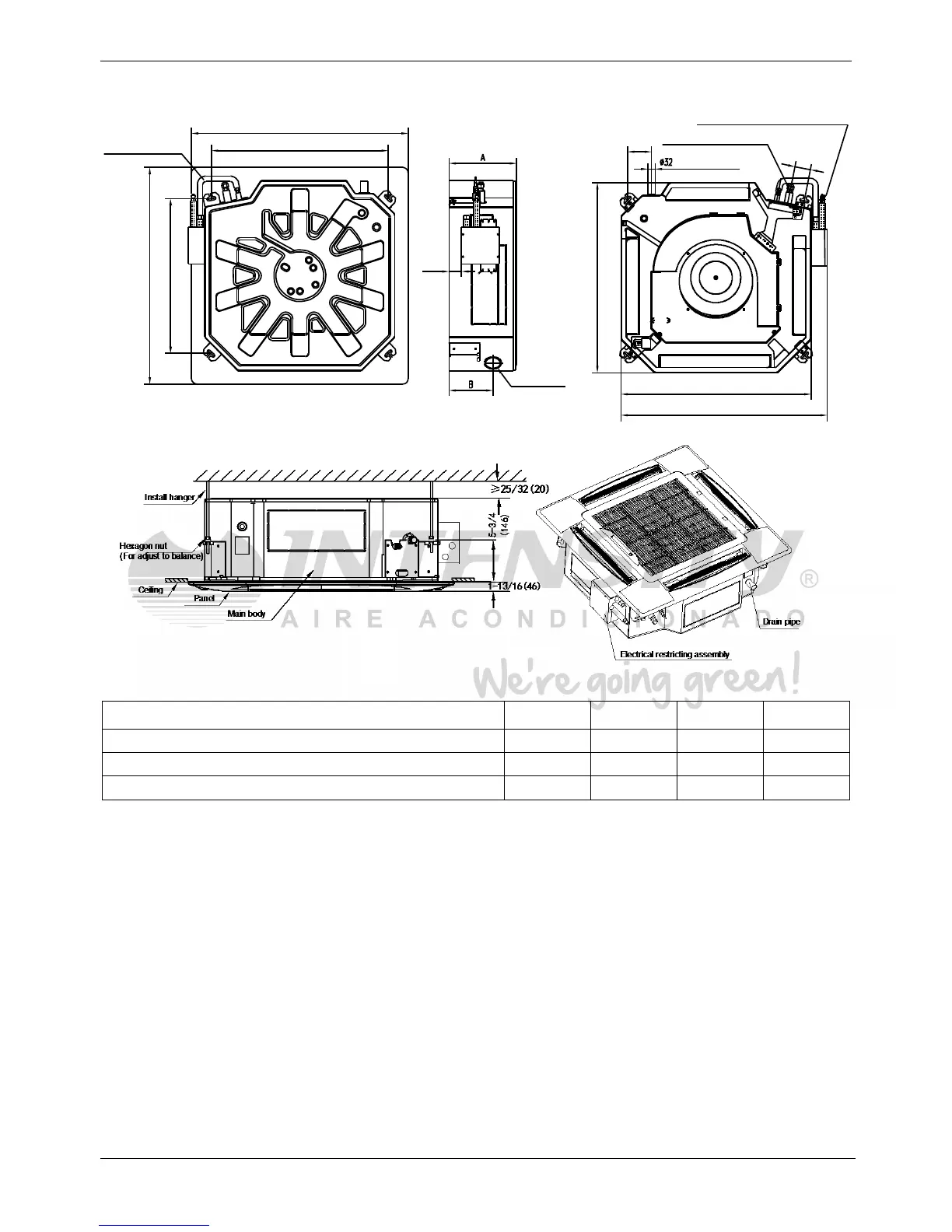

3. Dimensions
Unit:in(mm)
The connective pipe
of restricted assembly
(accessories)
Φ75New air
supply orifice
Drain pipe outter diameter
2-5/32
(55)
37-13/32(950)
30-23/32(780)
37-13/32(950)
26-25/32(680)
4-1/8
(105)
33-1/16(840)
33-1/16(840)
35-19/32(904)
2-3/4(70)
Refrigerant pipe orifice(Liquid side C)
Refrigerant pipe orifice(Air side D)
Indoor unit model
A
in(mm)
B
in(mm)
C
in(mm)
D
in(mm)
MDV-D28Q4/N1-D～ MDV-D45Q4/N1-D
9-1/16(230)
6-11/16(170)
1/4(Ф6.35)
1/2(Ф12.7)
MDV-D56Q4/N1-D～ MDV-D80Q4/N1-D
9-1/16(230)
6-11/16(170)
3/8(Ф9.53)
5/8(Ф15.9)
MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D
11-13/16(300)
7-15/32(190)
3/8(Ф9.53)
5/8(Ф15.9)
MAN-S-4WC-1112 Four-way Cassette Type
