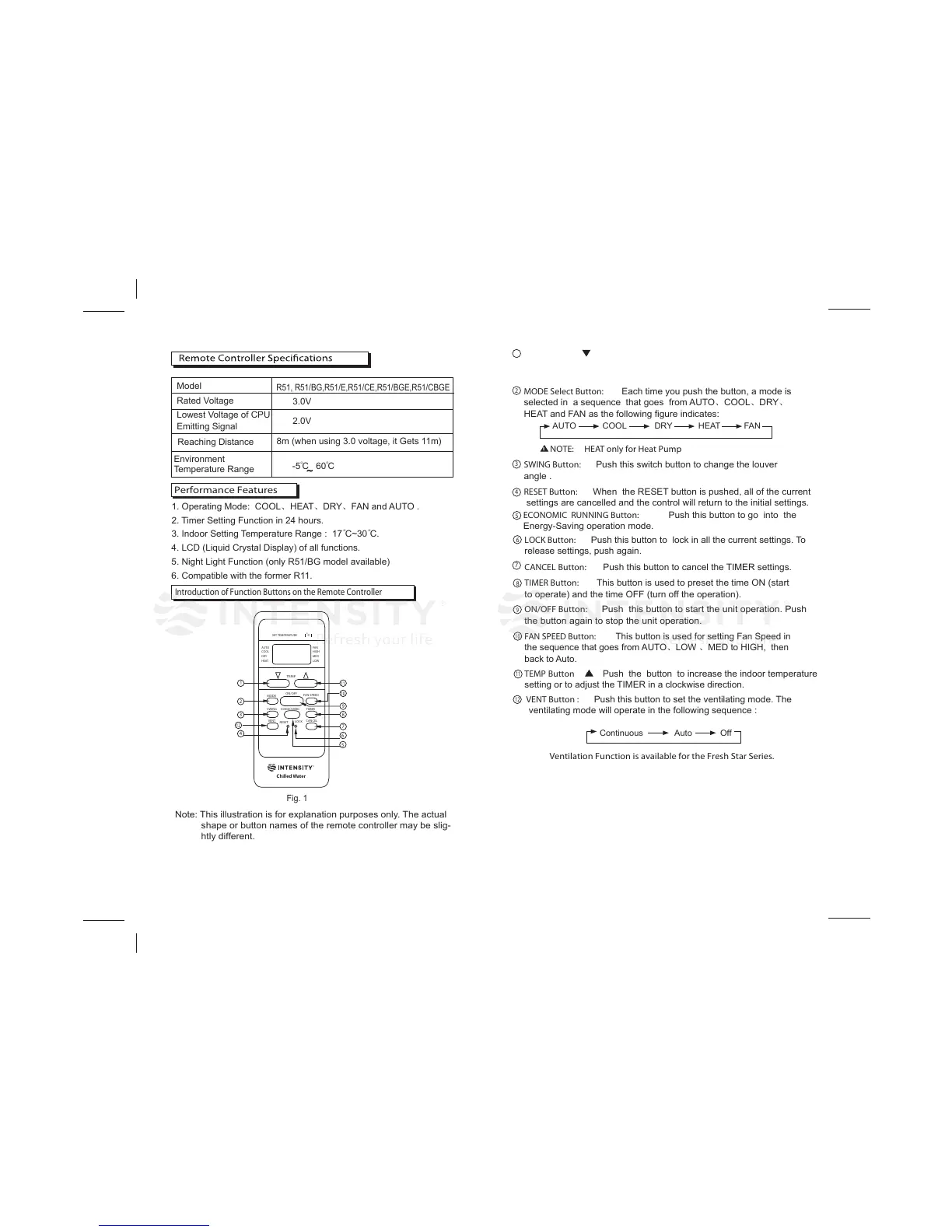

intensity R51 User Manual

1
Model
R51, R51/BG,R51/E,R51/CE,R51/BGE,R51/CBGE
Environment
Temperature Range
Reaching Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
-5 C 60 C
。 。
8m (when using 3.0 voltage, it Gets 11m)
3.0V
2.0V
~
Performance Features
Introduction of Function Buttons on the Remote Controller
1. Operating Mode: COOL HEAT DRY FAN and AUTO .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. LCD (Liquid Crystal Display) of all functions.
5. Night Light Function (only R51/BG model available)
6. Compatible with the former R11.
、 、 、
。 。
CANCEL
LOCK
1
Fig. 1
SET TEMPERATURE
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
。
C
TEMP
MODE
SWING
TIMER
RESET
ON/OFF
FAN SPEED
2
3
4
5
6
7
8
9
10
ECONOMIC RUNNING
11
VENT
12
Note: This illustration is for explanation purposes only. The actual
shape or button names of the remote controller may be slig-
htly different.
2
TEMP Button : Push the TEMP button to decrease the indoor
temperature setting or to adjust the TIMER in a counter-clockwise
direction.
MODE Select Button: Each time you push the button, a mode is
selected in a sequence that goes from AUTO COOL DRY
HEAT and FAN as the following figure indicates:
、 、 、
SWING Button: Push this switch button to change the louver
angle .
RESET Button: When the RESET button is pushed, all of the current
settings are cancelled and the control will return to the initial settings.
NOTE: HEAT only for Heat Pump
AUTO COOL DRY
HEAT
FAN
!
!
LOCK Button: Push this button to lock in all the current settings. To
release settings, push again.
CANCEL Button: Push this button to cancel the TIMER settings.
TIMER Button: This button is used to preset the time ON (start
to operate) and the time OFF (turn off the operation).
ON/OFF Button: Push this button to start the unit operation. Push
the button again to stop the unit operation.
FAN SPEED Button: This button is used for setting Fan Speed in
the sequence that goes from AUTO LOW MED to HIGH, then
back to Auto.
、 、
TEMP Button : Push the button to increase the indoor temperature
setting or to adjust the TIMER in a clockwise direction.
VENT Button : Push this button to set the ventilating mode. The
ventilating mode will operate in the following sequence :
Auto Off Continuous
Ventilation Function is available for the Fresh Star Series.
1
2
3
4
5
6
7
8
9
10
11
ECONOMIC RUNNING Button: Push this button to go into the
Energy-Saving operation mode.
12
